I Picked up a couple of round 240*240 pixel OLED display modules, as luck would have it they scale easily into the InMoov face frame-work.
Driving the display is an ESP32 using SPI bus for control... meaning that two displays can be controlled with it.
Hello,
I'm total new in the myrobotlab topic and wanted to start with my first steps. Unfortunately, I have a problem to connect the Arduino with Myrobotlab.
When I push the connect button, the program is just closing itselfe.
I have the latest version of Myrobot, Java and Arduino installed, the MRLComm is uploaded to the arduino and the correct COM is selected.
I was looking in the forum for an solution, but unfortunately I didn't found one.
Do you have any idea what I do wrong?

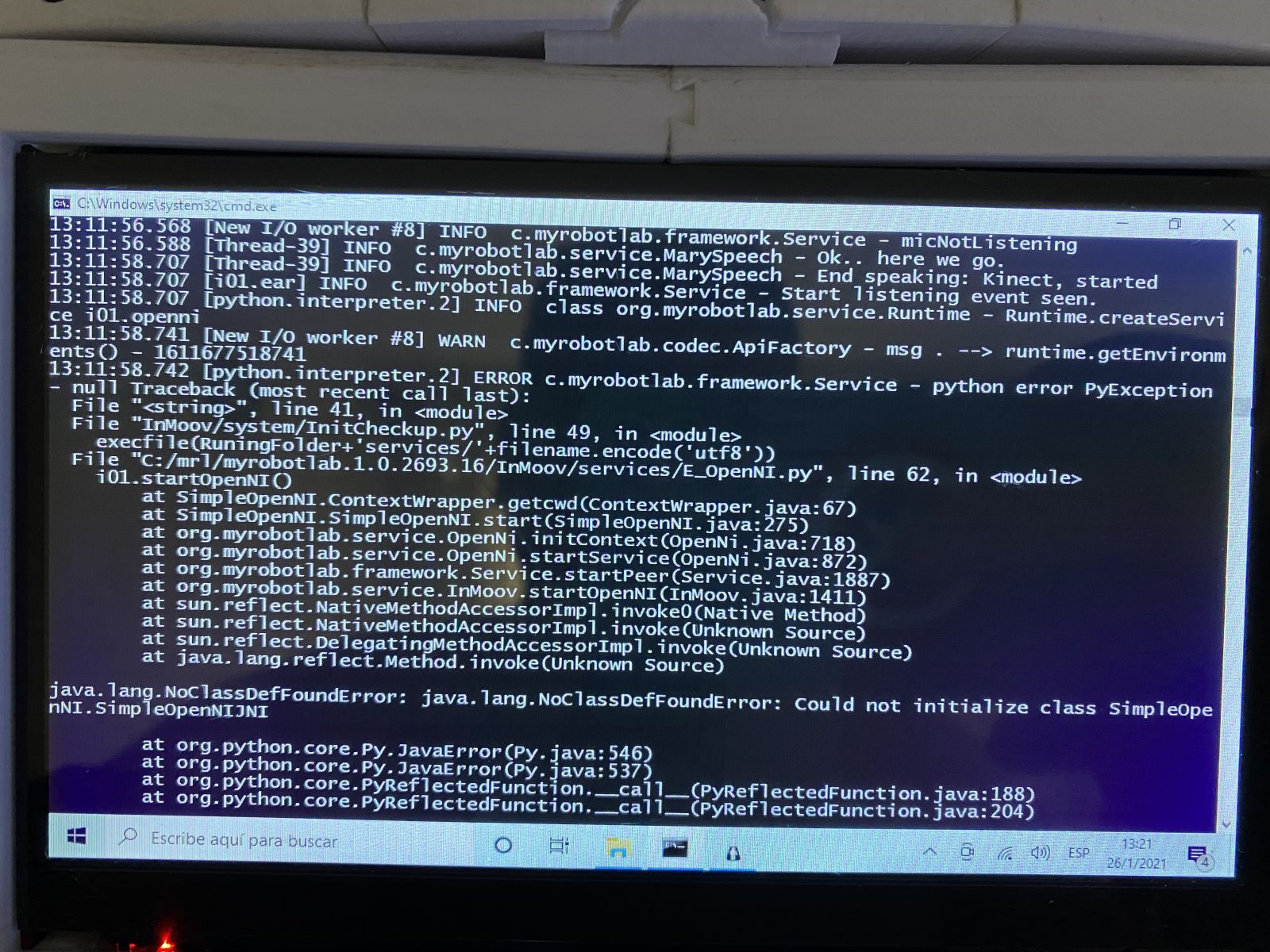

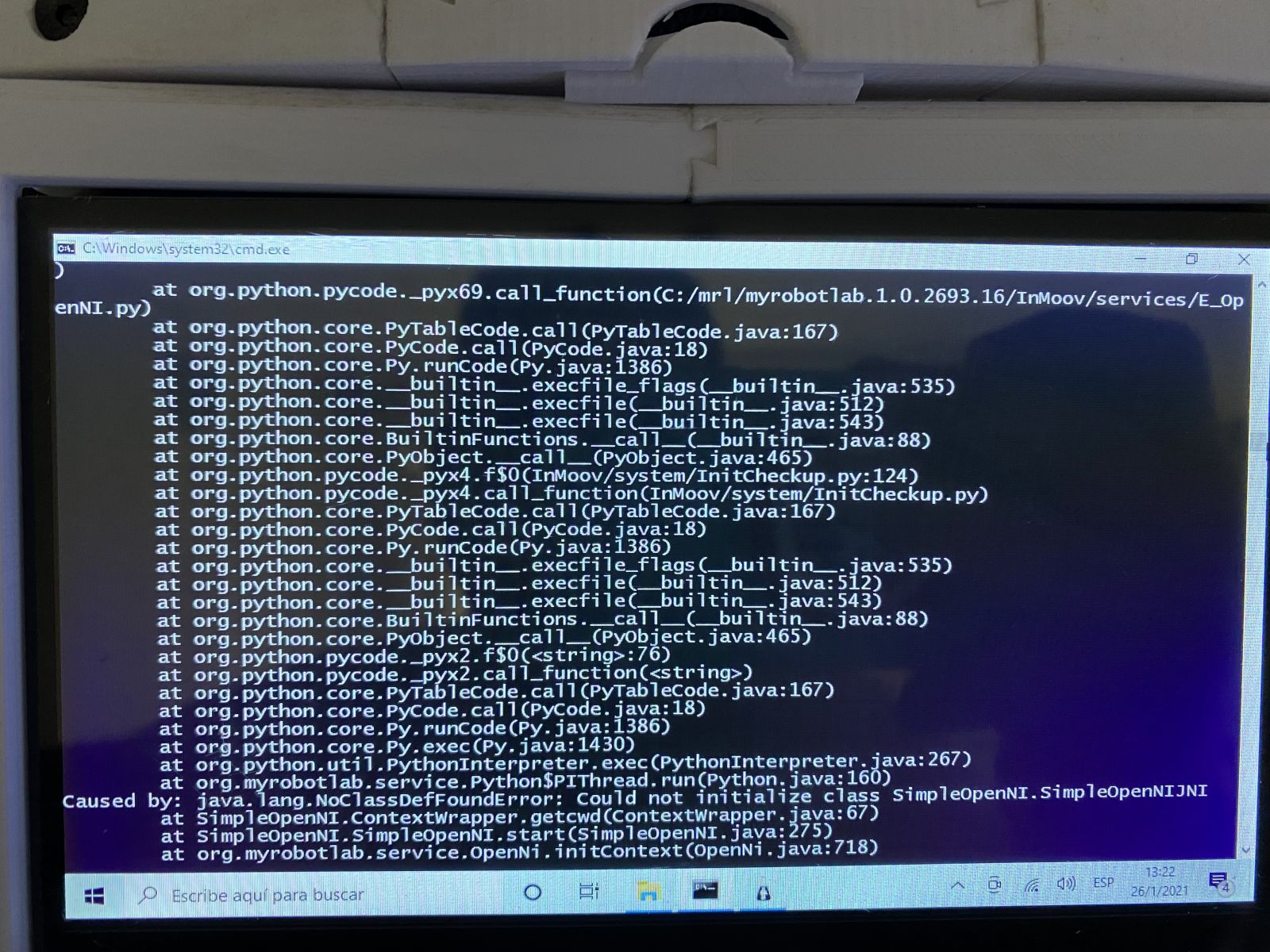

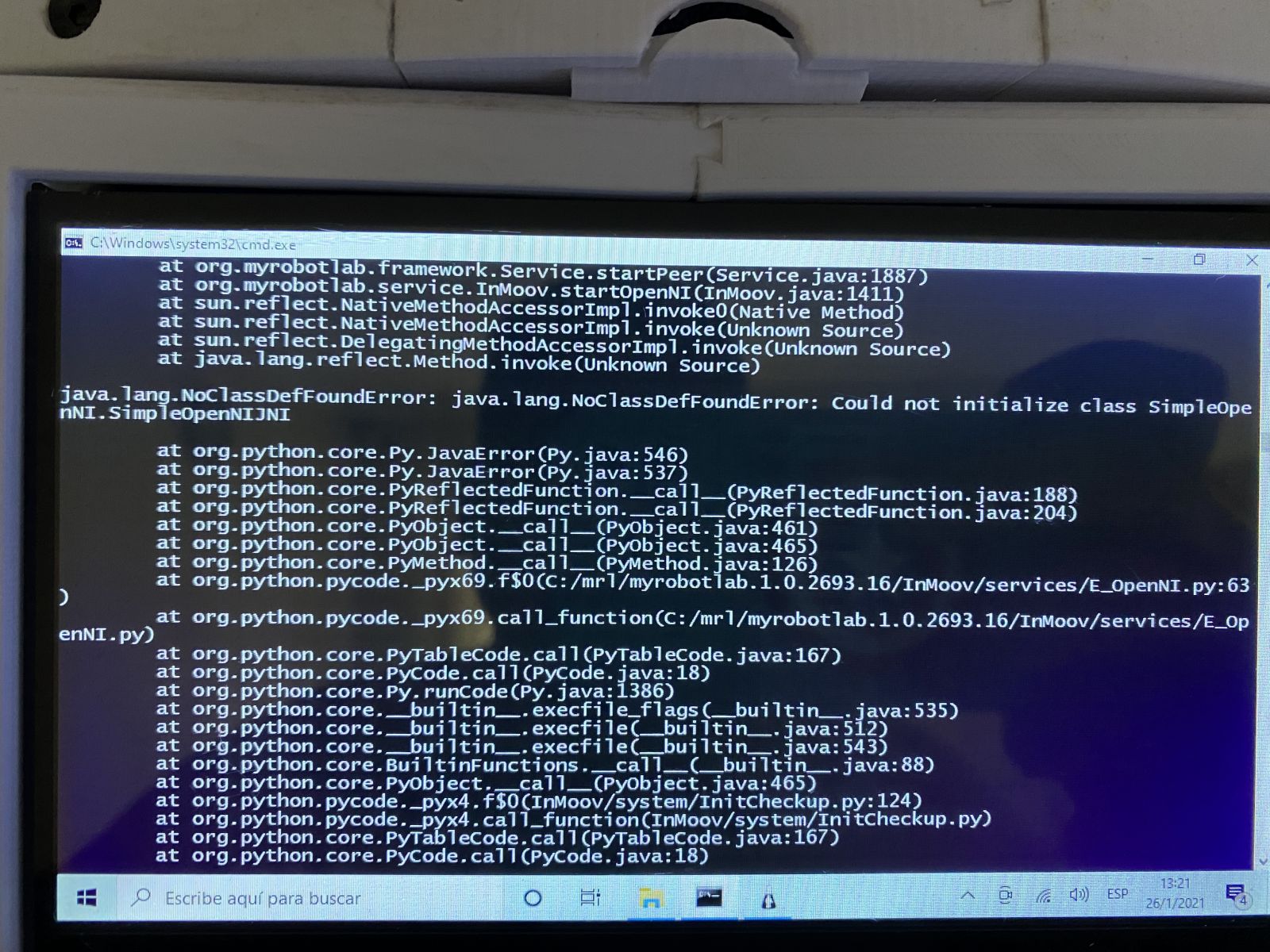

Hello, yesterday I saw why my kinect 360 did not work when I started the activation of the sensors, it only says start of kinect and everything stopped I have taken photos of the system symbol when it is in the start of kinect

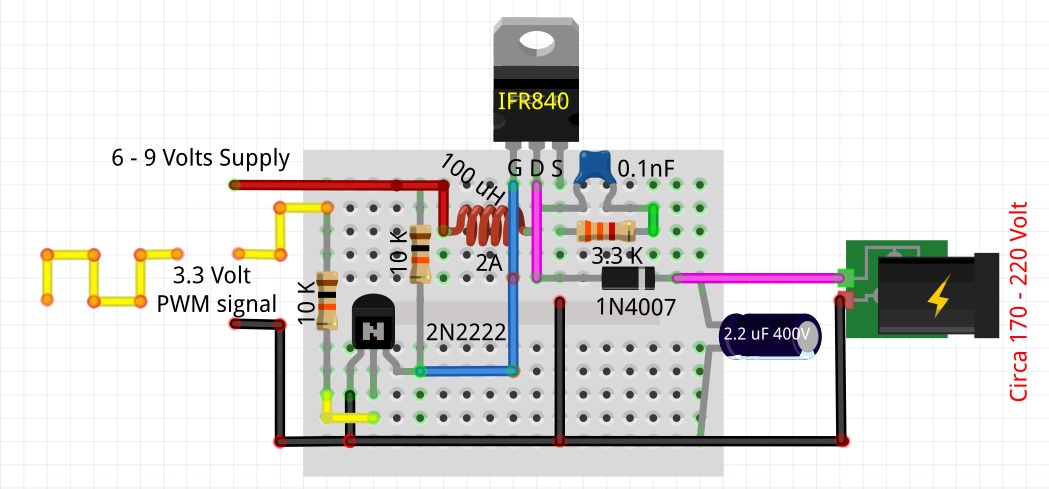

Latest iteration of the Neon supply 170 - 240 Volt generator.
The original circuit sported a "NE555" to drive the "Fly-Back" inductor N-Channel MOSFET, then after a hour sitting in its cosy socket (and an elvish brainwave later) it has been made redundant in preference to some"PWM Code..."
Grog,
Hi Folks
new here, plugging away at my robot. Started up myrobotlab, maticore, 1.0.2693, ran into 2 issues

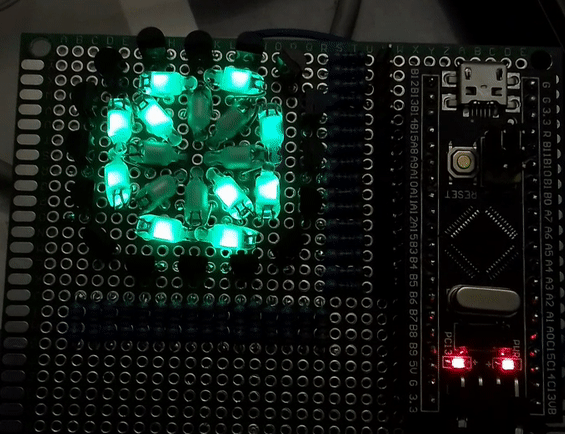

Over the last few months these "Coloured Neon lamp indicators" have been popping up on the matrix, so I could not resit...well who could not resist mixing 3.3volt logic with 170volt.
They come in a variety of colours "Green","Blue" and "Orange" , the glow intensity is good even in daylight.

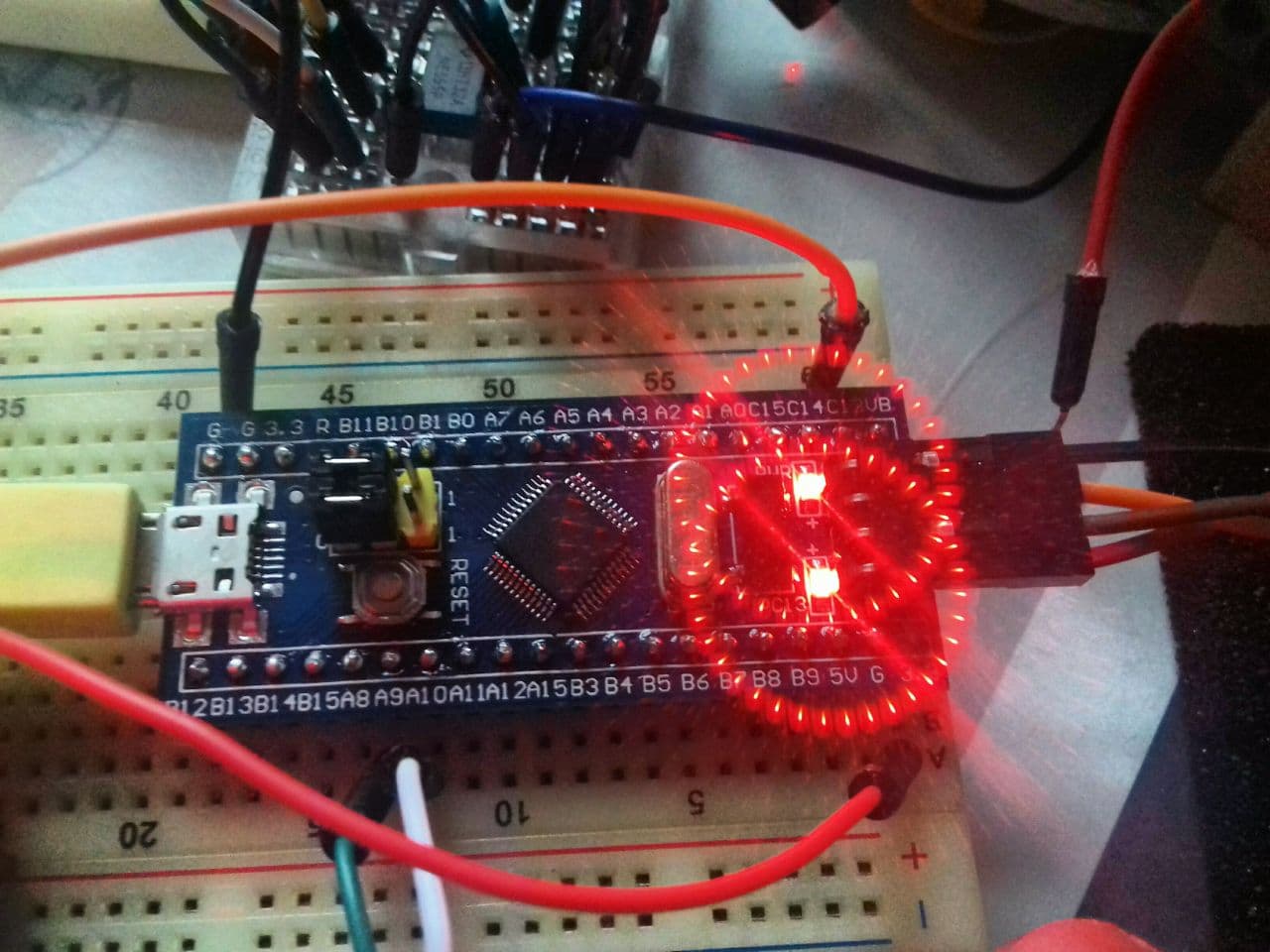

The MCU you see above is know as the "Blue-Pill" , it belongs to the STM32 family.
To put it in simple terms.... its a bit like an Arduino on steroids.
STM32F103 Specs :-
