inconsistent installs none of which work

InMoov2 version 1.1.518


java version "1.8.0_202"

Java(TM) SE Runtime Environment (build 1.8.0_202-b08)

Java HotSpot(TM) 64-Bit Server VM (build 25.202-b08, mixed mode)
I can't get the install to show INTRO in the WebUI and virual mode won't activate.
During one install I did get INTRO to work but none of the "save config" seemed to work. (or virtual controllers)

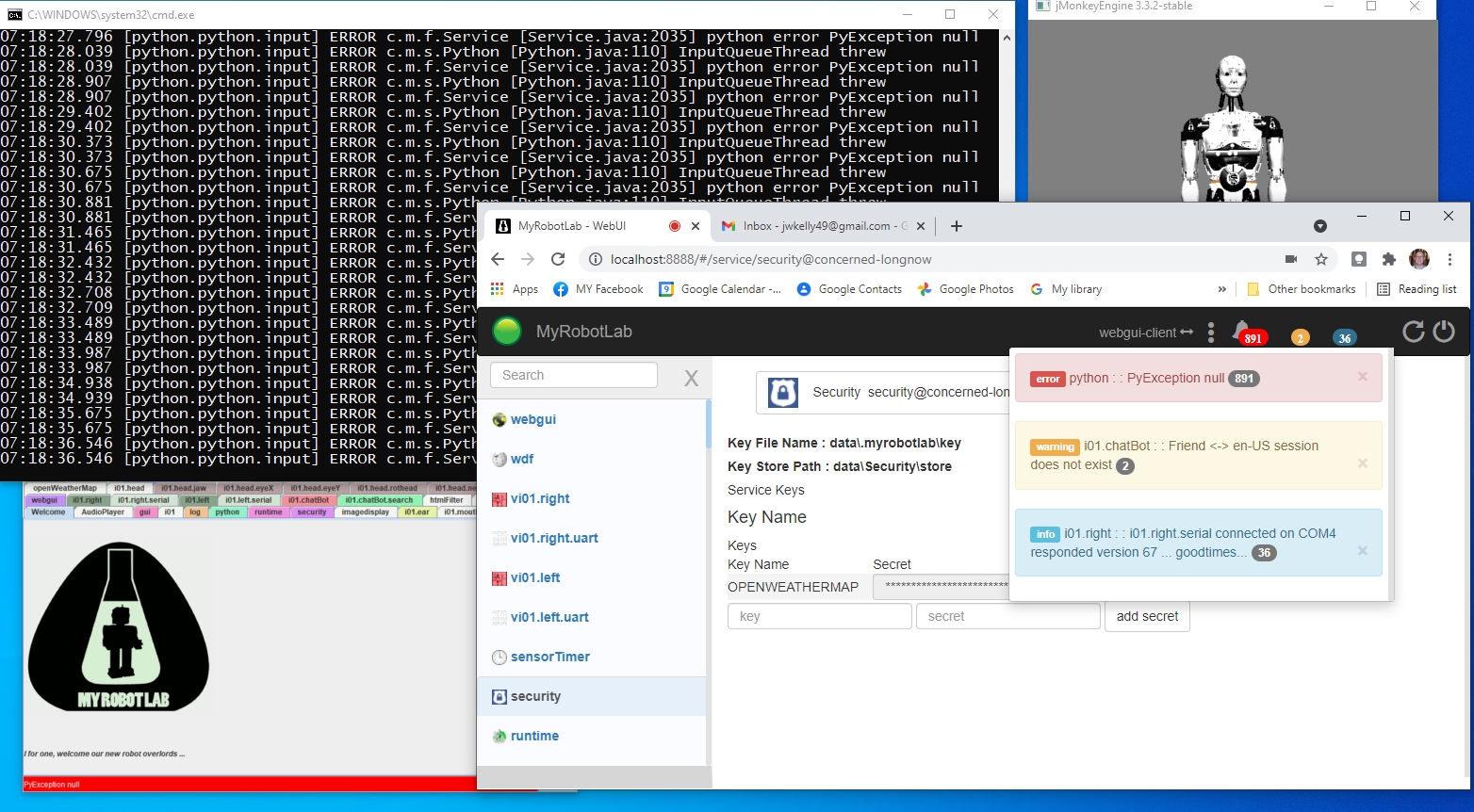

As you can see I have c.m.f.service and c.m.s. python errors
shutdown is full of c.m.a. (ack not received) for everything and I have to restrat Windows to make sure everything is closed.
During startup robot speaks and says "alert ........ can't start every gesture."
Most of the time "noWorky" failed to send
I have captured the log file but can't see a way to attach it.


GroG's picture

If you want to use Nixie

If you want to use Nixie version of MRL - (which includes Intro & InMoov2)...
You must install Java 11 not Java 8

Details of how to install and run even both are here ...

Although you might just simply uninstall Java 8 and install Java 11

Jim_K's picture

updated Java

I deleted java 8 and installed Java 11 and got the exact same behavior from myrobotlab.

No INTRO and same faults.

GroG's picture

what does java

what does

java -version

return now ?

Jim_K's picture

Java version test

C:\Users\jwkel>java -version
java version "11.0.11" 2021-04-20 LTS
Java(TM) SE Runtime Environment 18.9 (build 11.0.11+9-LTS-194)
Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
GroG's picture

Progress ! I suggest now you

Progress !

I suggest now you make a new directory...

something like this

mkdir c:\myrobotlab

Then download this jar

into c:\myrobotlab

start a cmd shell

cd c:\myrobotlab
java -jar myrobotlab.jar --install

this part will take a while - go get some coffee

when its done ...

cd c:\myrobotlab
java -jar myrobotlab.jar


Jim_K's picture

I now get the INTRO on the webUI

Using your suggested download and install/run procedure I got a webUI with the INTRO that allows me to select mouth/ears etc. and seems to work. As I configure robot parts they are added to the left side menu column.

The Win-10 cmd window shows a log of actions performed. It also does not have the repeating errors I saw before. When I use the webUI shutdown the Win-10 command prompt shows a short shutdown procedure and ends with an active command prompt.  I can then start myrobotlab without having to restart the computer.

Using your command prompt method to start myrobotlab.jar it opens only the webUI and does not start the Jmonkeyengine or the SwingGUI windows.

If I go to directory C:\myrobotlab and use the provided BAT file (START_INMOOV.bat) I get the webUI WITHOUT the intro selection but the left column shows all the robot parts. It also starts the jmonkeyengine and SwingGUI and the same error messages that my original download (in directory mrl) had and fails to do a proper shutdown.


Out of curiosity I used your startup (java –jar myrobot.jar) and the bat file startup on my installed version (in directory mrl) and get the identical behaviors explained above.


GroG's picture

Excellent - it sounds

Excellent - it sounds worky.

Using your command prompt method to start myrobotlab.jar it opens only the webUI and does not start the Jmonkeyengine or the SwingGUI windows.

The SwingGUI is no longer supported.  "Swing" is a very old display technology - The WebGui is what will be supported in the future.

There are multiple ways to start JMonkeyEngine.
So you know, Runtime service is the one which ultimately is in charge of starting or removing all other services.

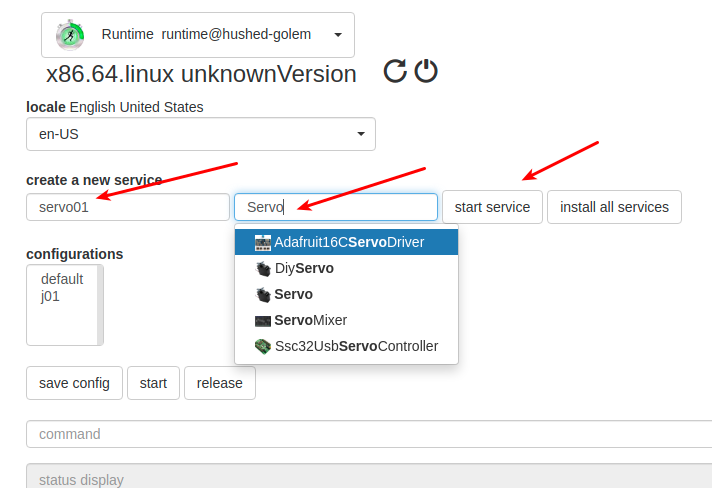

You can create a new service anytime, by typing its name, type, and pressing the [ start service ] button


The way you probably want to start JMonkey however is through InMoov2

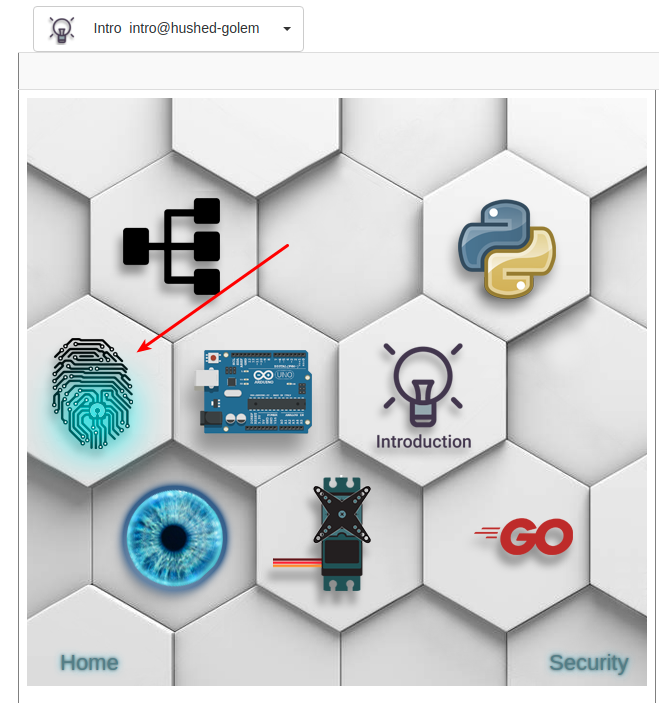

go to the Intro service - Press the InMoov tile

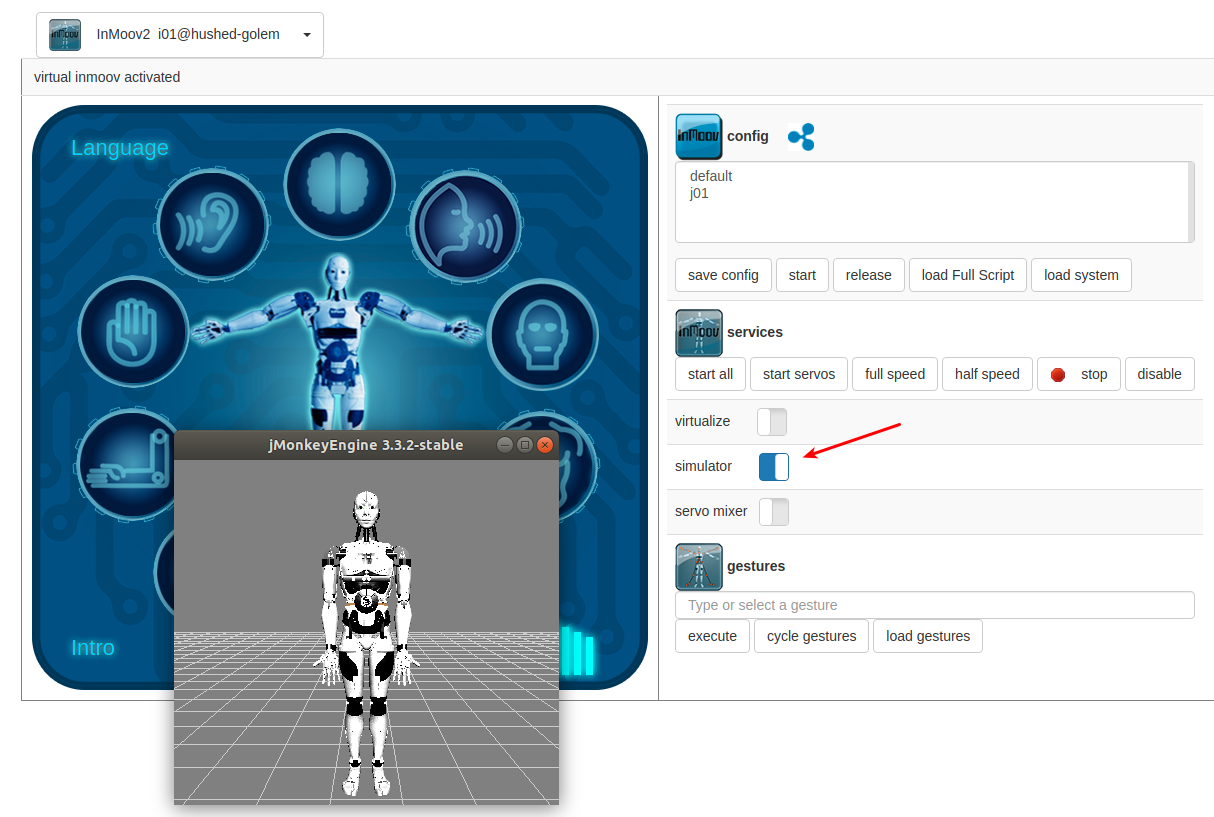

No on the InMoov2 service - see if you can find a simulator switch...


Bat files are not supported.  We are currently working on configuration in the form of files which should work well with this UI.

Jim_K's picture

Got it!

Okay, now I know to drop off my old expectations of what a startup looks like. I really like the look/feel of the webUI Great work!


Before I start a new topic perhaps you can point me to a tutorial on how to use the virtual settings -- say maybe on how to raise the right arm.

GroG's picture

There ya go

There ya go -
