Global Positioning System for MyRobotLab.
It will read data from a GPS sensor through a serial connection and parse it into its appropriate fields

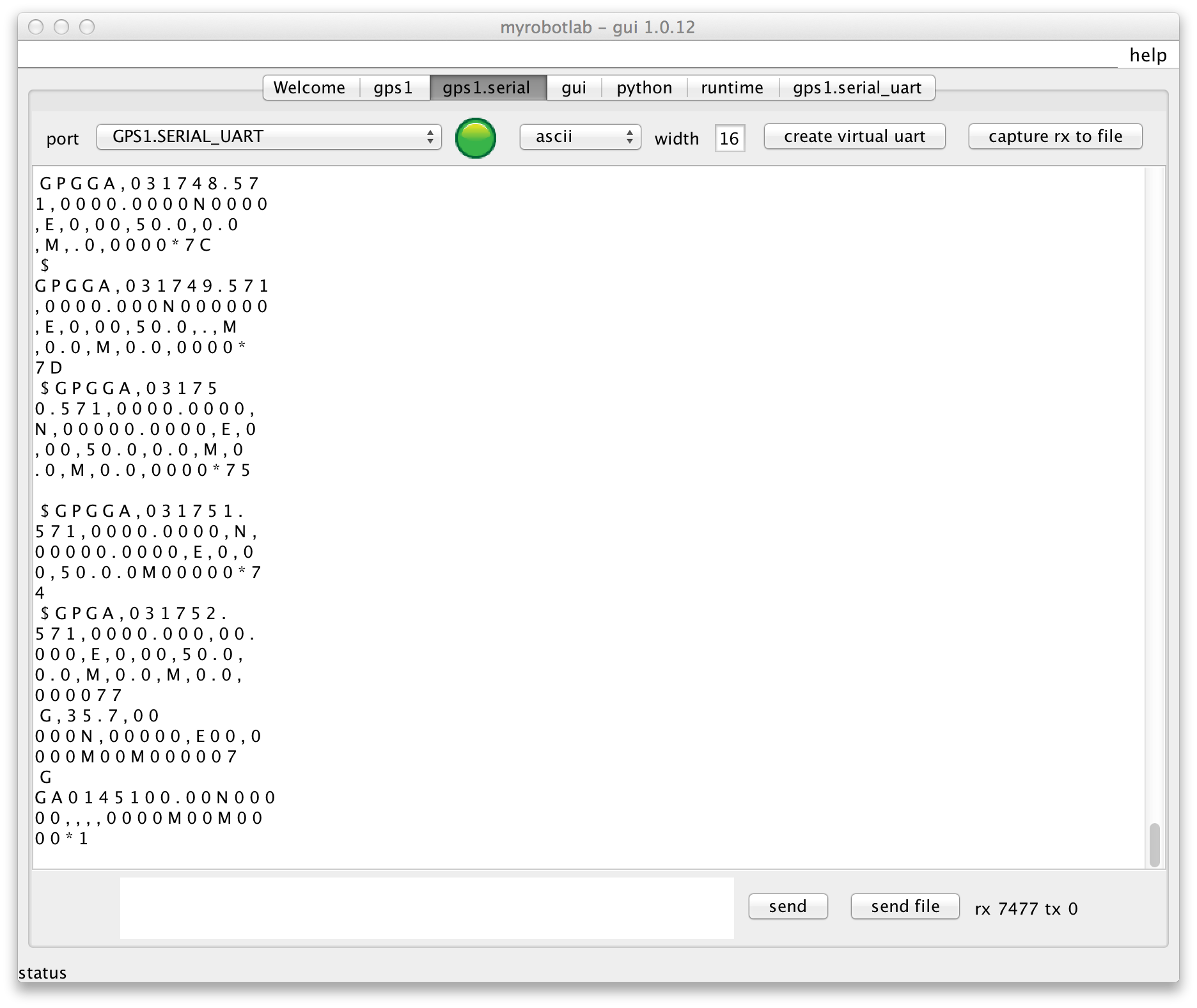

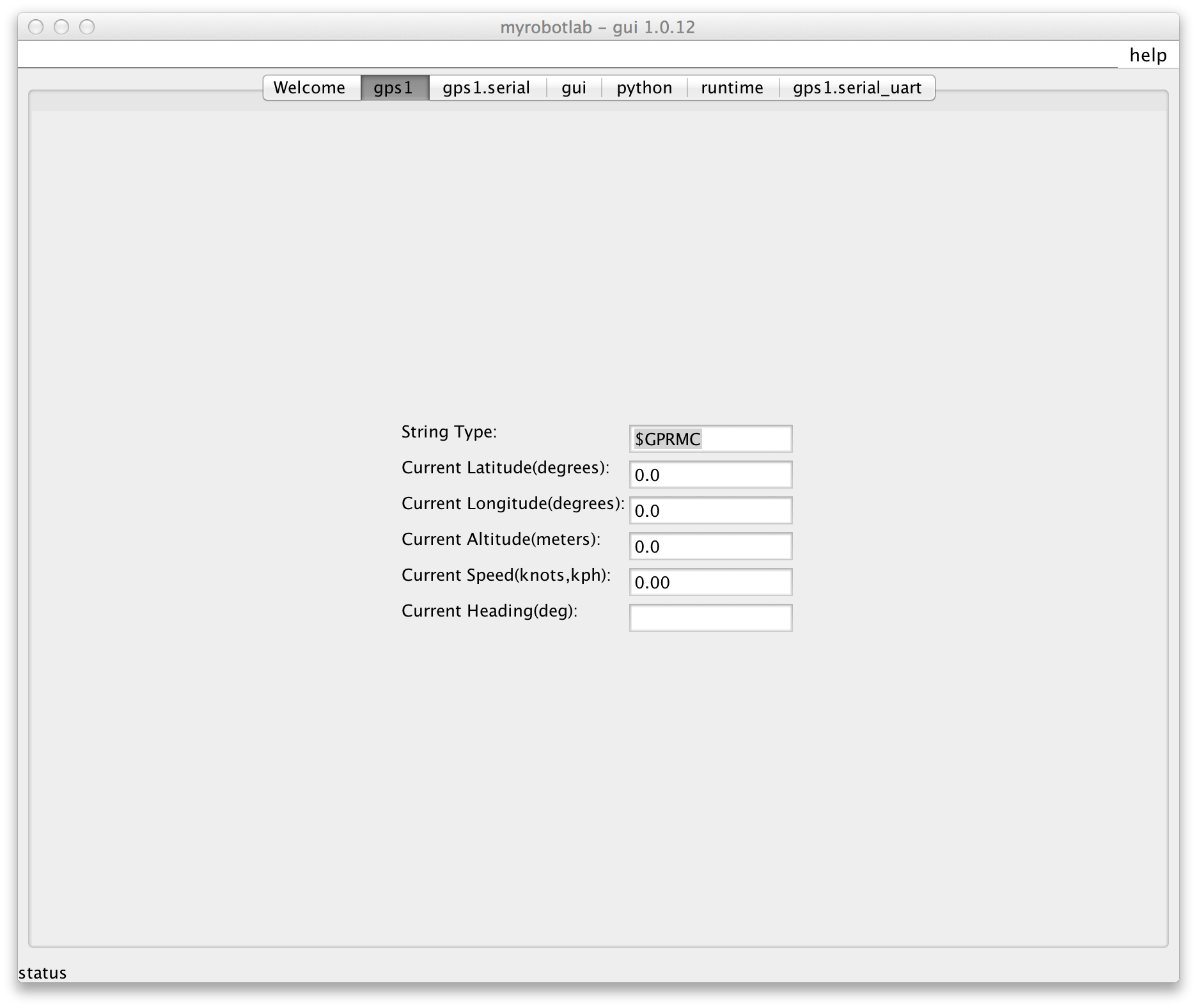

The service is able to parse NMEA sentences coming in over Serial (including Bluetooth Serial). There is a rudimentary GUI for the service that shows the current sentence being parsed and some of the relevant values parsed from it. One important note is that the Lat and Lon in NMEA are in the format ddmm.mmmm which means that they have to be converted to Degrees (d) from Degrees(d) Minutes(m) to be used with some of the other functions in the service.  The service automatically does the conversion when it parses the sentences into GPSData objects. If you capture the raw GPS data coming out of the device to a file, it won't be the converted version. It will be the raw NMEA value.

Starting in MRL versions after 1.0.86, some Geo Fence capabilities have been added.  The most basic of these is the Point based radius.  You define a Lat/Lon point and a radius around it in meters and then you can test to see if other points are inside or outside the fence.  A more complicated/flexible version is created by sending an array of GPS points to form a polygon. The last point will be connected back to the first point automatically to close the fence.  So if your robot is sending you it's current GPS coordinates, you can see if has wandered into our out of a fenced area.

Example code (from branch develop):
#file : Gps.py (github)
from time import sleep


gps1 = runtime.start("gps1", "Gps")

gps1.connect("COM3")
sleep(1)

# define some points ...
# Lets use Nova Labs 1.0
lat1 = 38.950829
lon1 = -77.339502
novalabs1 = gps1.setPoint(lat1, lon1)

# and Nova Labs 2.0 North East of NL 1
lat2 = 38.954471
lon2 = -77.338271
novalabs2 = gps1.setPoint(lat2, lon2)

# and the nearest Metro station
lat3 = 38.947254
lon3 = -77.337844
novalabsmetro = gps1.setPoint(lat3, lon3)

# and the Sand Trap out back
lat4 = 38.954844
lon4 = -77.338797
novalabstrap = gps1.setPoint(lat4, lon4)

# Lets create some points for a Polygon Geofence with diagonals defined by NL 1.0 and 2.0
cornerNW = gps1.setPoint(lat2,lon1) # NW corner
cornerNE = gps1.setPoint(lat2,lon2) # NE corner
cornerSE = gps1.setPoint(lat1,lon2) # SE corner
cornerSW = gps1.setPoint(lat1,lon1) # SW corner

def input():
  startingAngle = 0
  Latitude = msg_gps1_publishGGAData.data[0][2]
  Longitude =  msg_gps1_publishGGAData.data[0][4]
  altitude = msg_gps1_publishGGAData.data[0][9]
  print "Lat: " + Latitude
  print "Long: " + Longitude
  print "Alt: " + altitude + "\n"


#have python listening to gps
gps1.addListener("publishGGAData", python.name, "input")

print "Ready to receive Data from GPS..."


# Time to play with some GPS points and GeoFence examples

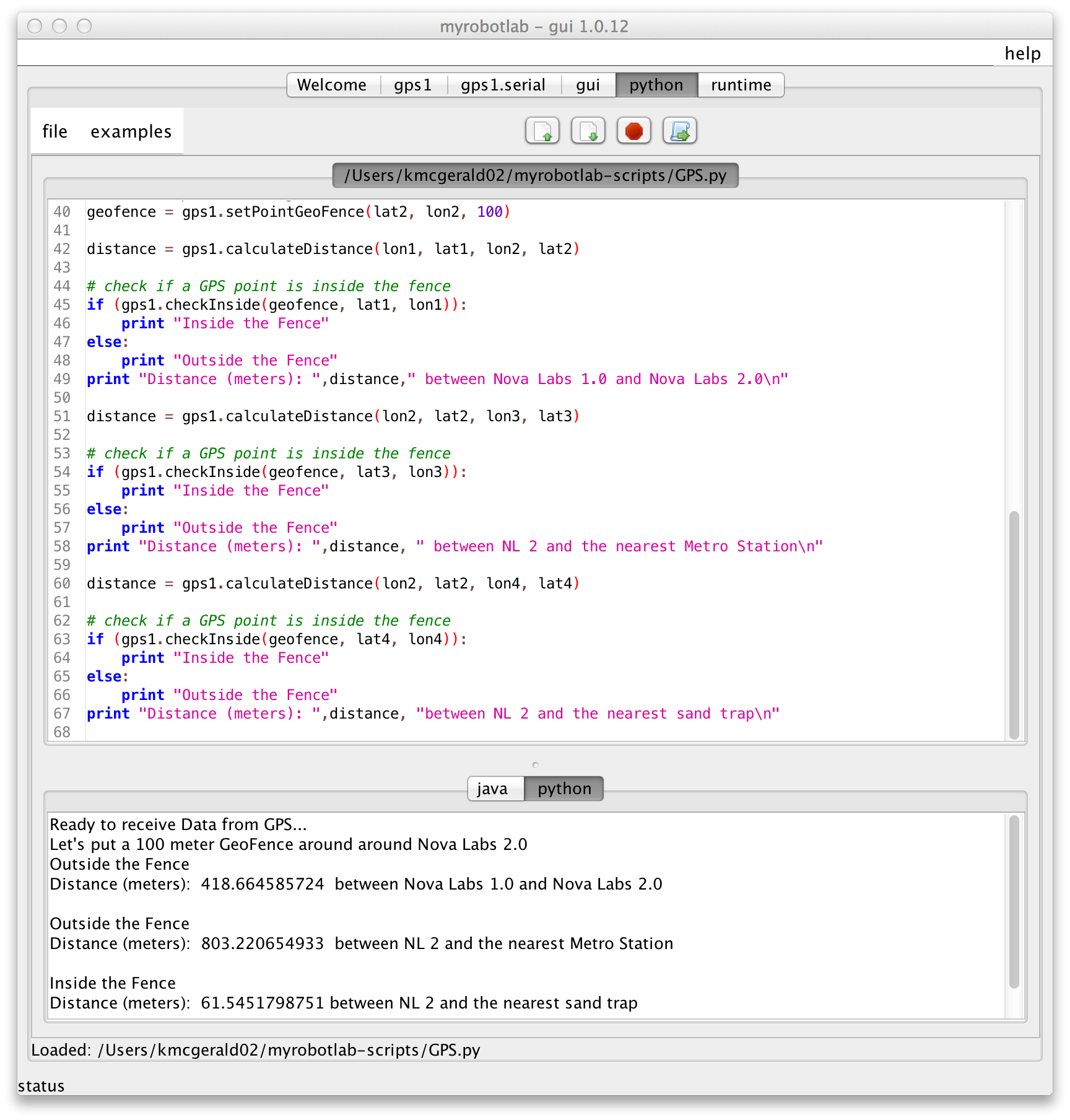

print "Let's put a GeoFence around around Nova Labs 2.0 (",novalabs2.getLat(),",",novalabs2.getLon(),") with a 100 meter radius"
# create a point based geofence with a 100m radius
geofence = gps1.setPointGeoFence(lat2, lon2, 100)
# or we could have done this
# geofence = gps1.setPointGeoFence(novalabs2, 100)

distance = gps1.calculateDistance(lat1, lon1, lat2, lon2)
# or we could have done this
# distance = gps1.calculateDistance(novalabs1, novalabs2)

# check if a GPS point is inside the fence
if (gps1.checkInside(geofence, lat1, lon1)): # or we could have used gps1.checkInside(geofence, novalabs1)
    print "Nova Labs 1.0 is Inside the Fence around Nova Labs 2.0"
else:
    print "Nova Labs 1.0 is Outside the Fence around Nova Labs 2.0"
print "Distance (meters): ",distance," between Nova Labs 1.0 and Nova Labs 2.0\n"

distance = gps1.calculateDistance(lat2, lon2, lat3, lon3)

# check if a GPS point is inside the fence
if (gps1.checkInside(geofence, lat3, lon3)):
    print "The Metro station is Inside the Fence around Nova Labs 2.0"
else:
    print "The Metro station is Outside the Fence around Nova Labs 2.0"
print "Distance (meters): ",distance, " between NL 2 and the nearest Metro Station\n"

distance = gps1.calculateDistance(lat2, lon2, lat4, lon4)

# check if a GPS point is inside the fence
if (gps1.checkInside(geofence, lat4, lon4)):
    print "Sand Trap is Inside the Fence around Nova Labs 2.0"
else:
    print "Sand Trap is Outside the Fence around Nova Labs 2.0"
print "Distance (meters): ",distance, "between NL 2 and the nearest sand trap\n"

# create a Polygon geofence based on the NL 1.0 and 2.0 corners
print "Let's build a geofence with NL 1.0 and 2.0 in diagonal corners"
geogrid = gps1.setPolygonGeoFence([cornerNW, cornerNE, cornerSE, cornerSW])

#check if the sand trap is in the fence
if (gps1.checkInside(geogrid, lat4, lon4)): # or we could have used gps1.checkInside(geogrid, novalabstrap)
    print "Sand Trap is Inside the Fence"
else:
    print "Sand Trap is Outside the Fence"
Example configuration (from branch develop):
#file : Gps.py (github)
!!org.myrobotlab.service.config.GpsConfig
listeners: null
peers:
  serial:
    autoStart: true
    name: gps.serial
    type: Serial
type: Gps
