Upgrading the Raspberry Pi camera..

Although the stock lens is sharp ..... it lacks that spycam aspect.......

There are loads of fixed lenses out there ... however nothing beats a good zoom lens.

Ebay Search string (F1.8 1/3 Inch CS Mount 5.0-100mm DC Auto IRIS Manual Zoom CCTV Lens)

My Very Quick delivery came from eprid.security

Specs :-

F 1.8

1/3" CCTV Lens

5.0 mm - 100.00 mm

With a direct drive 2 coil Iris for adjusting light levels

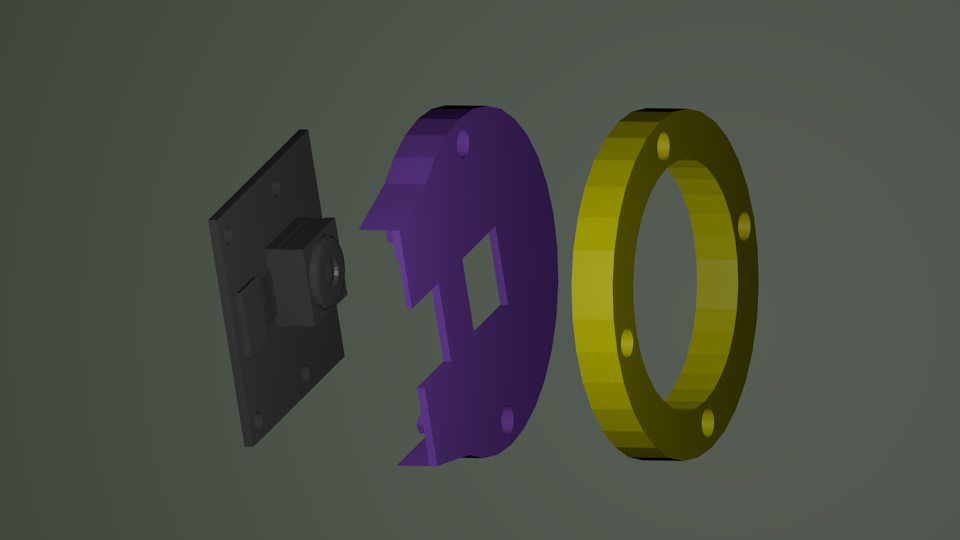

I made a custom 3D printed adaptor.... version 2 :-

The direct drive Iris has a drive coil and a damping coil.

By default the Iris is closed (so no power .....no lens) ... Its a simple job to open the Iris by applying 6 to 16volt signal (@35mA)... That opens the Iris "Wide" .... I plan to PWM the 2 coils for better control.

The Zoom and Focus rings will be easy to automate ... however I am clueless how an auto-focus system works....


Comment viewing options

Select your preferred way to display the comments and click "Save settings" to activate your changes.
GroG's picture

Really looks sharp Gareth

How fast (FPS) is the raspi cam ?

Gareth's picture

Difficult Question ......SD dependant

Hmmm you need the fastest SD out there if you want good fps. (ie vga 90fps)

Qoute :- Prior to March 2014, video mode did not use the full sensor area (only a 1920x1080 center crop), and there was no video mode faster than 30 fps. With new firmware as of March 18 2014 the camera has a full-sensor 2x2 binned video mode, and also can do 640 x 480 up to 90 fps.

I have noticed that my cheap ebay cards do stutter a bit so the faster the better....

Qoute :- SD card class. The card class determines the sustained write speed for the card; a class 4 card will be able to write at 4MB/s, whereas a class 10 should be able to attain 10 MB/s.

cahbtexhuk's picture

CS Drive lens

Have you managed to do anything with the DC Iris drive?
There's a metric tonne of great cheap CS-mount lenses and they work perfectly with a pi hq cam, but absolutely no projects to drive the iris from the pi
