Servos Installed :- MRL>>>Propeller>>> Flexy-Flexy

Last Hurdle....Kinda......Multiple Servos now working from MRL >>> Propeller

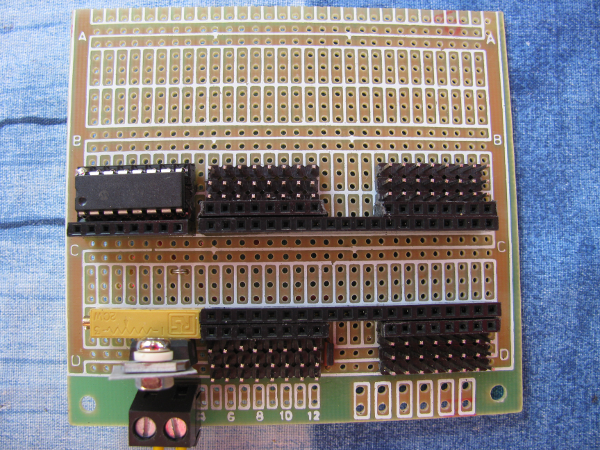

Also created a universal Propeller Board...... one that is easy to fit things too.....

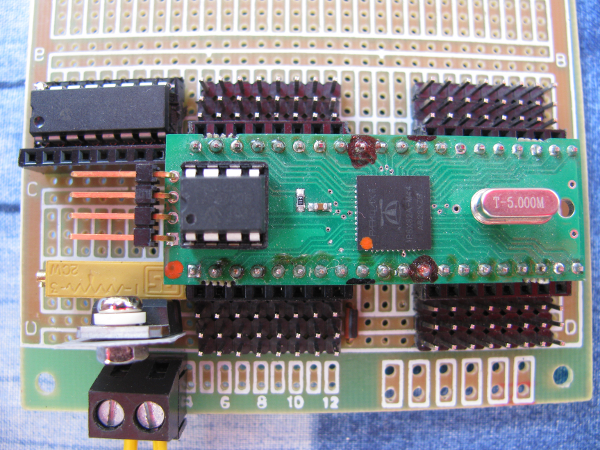

Bottom Left adjustable power Regulator ... for servos (5V-6V) underneath is a 3.3V regulator(Hidden)

Middle Left ... FTDI serial link

16 pin chip is an 8 Channel 12 bit ADC.

8 pin chip is an i2c eprom ..... Program is stored here - on boot up it loads into the propeller ... means also its easy to plug in stock known "Working" programs.

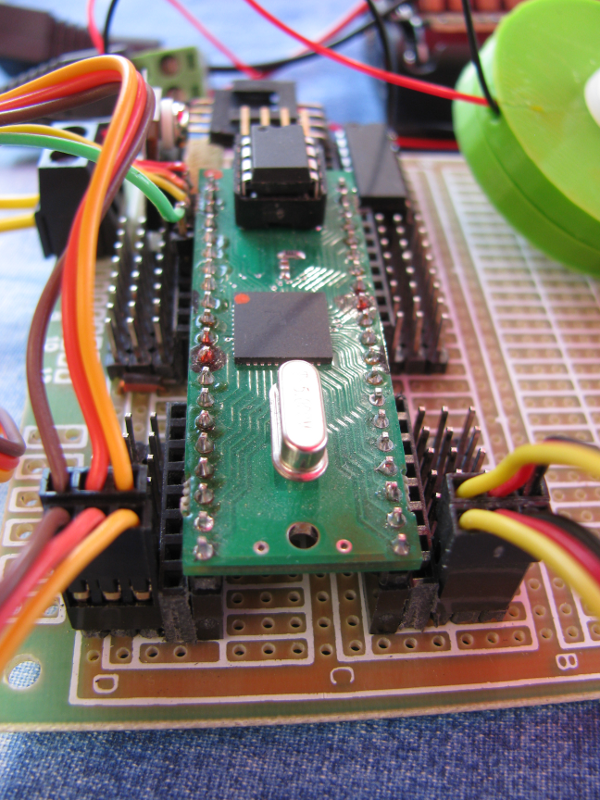

Square 40 pin chip is the 8 cog Propeller running @ 40Mhz ....and along side a plugable crystal.

Its possible to populate 32 servos (and i have installed sockets/plugs in case).... however doing that willl leave no room for RX/TX

Rest of the Propeller intergration will be done with this board set up now.......
