Serial Terminal Loopbacks in Linux

Thanks Adam for the scripts !

In order to test serial communication Linux has a great feature where you can create virtual serial ports and connect them to each other.  A serial loopback ! :)

terminalEmulation.sh
#Terminal emulation script by Adam Harris

#create the two linked pseudoterminals
socat -d -d pty,raw,echo=0 pty,raw,echo=0 &

#now create symbolic links to these terminals
sudo ln -s /dev/pts/1 /dev/ttyUSB13
sudo ln -s /dev/pts/2 /dev/ttyUSB14
echo "symbolic links created, see for yourself:"
ls /dev/ttyUSB*



#unlink.sh:
#unlinks the symbolic links of the pseudoterminals
echo "unlinking the ttyUSBs..."
sudo unlink /dev/ttyUSB23
sudo unlink /dev/ttyUSB24
echo "done, see: ls /dev/ttyUSB*"
ls /dev/ttyUSB*
echo "killing socat..."
sudo killall socat
echo "done."

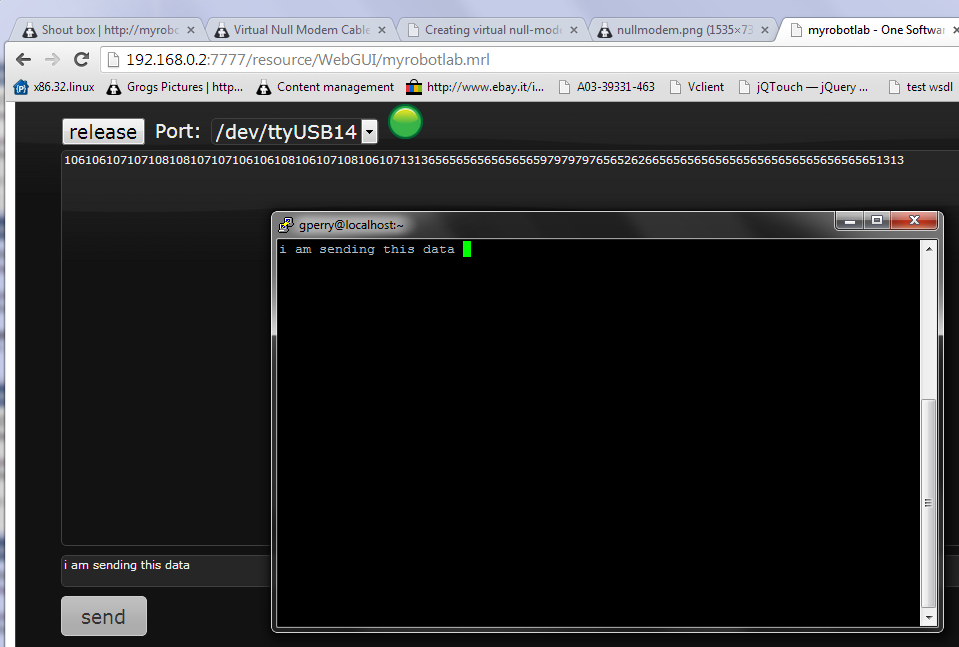

Here is a Serial session I started using socat and a virtual null modem. In the webgui I can type and send data to the terminal running minicom.  In minicom i can type and data will appear in the webgui - one bug is the double display (I think it might be a display only issue) of the data coming back to the Serial service - it would be nice to have it display in different formats too .  But data is going both ways.
