mounted
the process

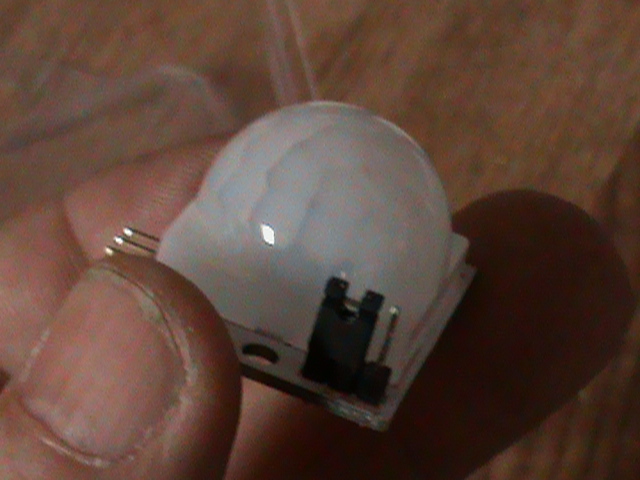

I removed these pins to avoid them being seen

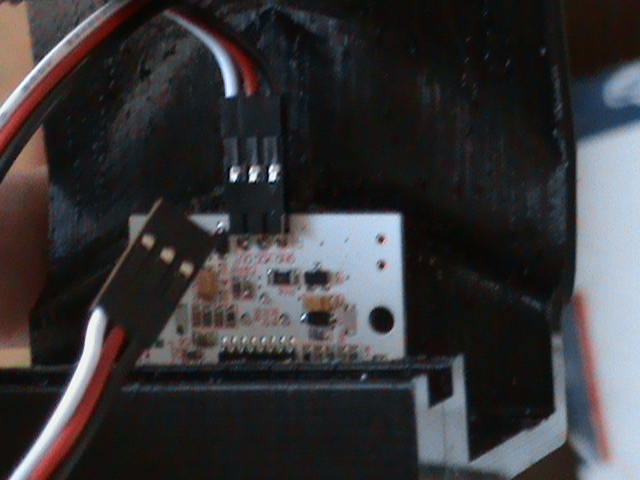

here you can jumper soldered into back side, I set it for Re-Trig to send a continus signal when detecting motion

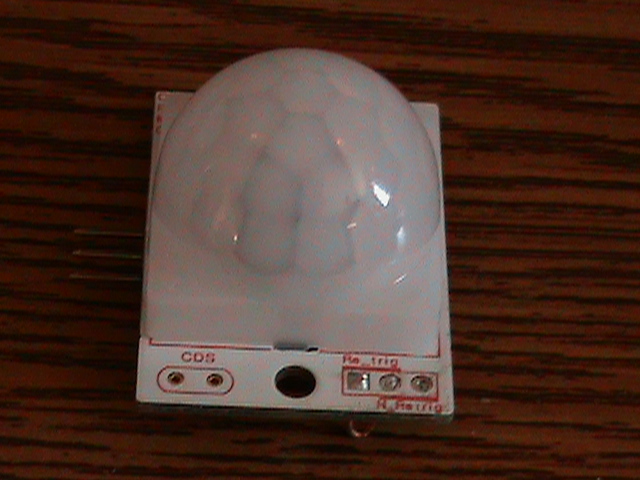

here it is from front after soldering jumper on back

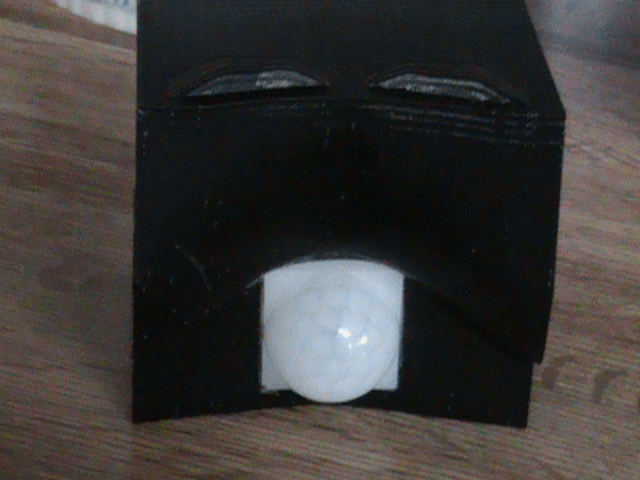

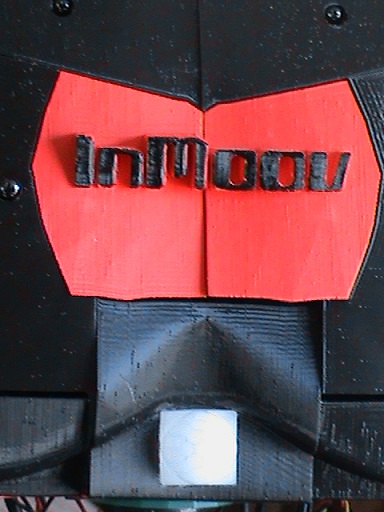

installed on BottomChestV1

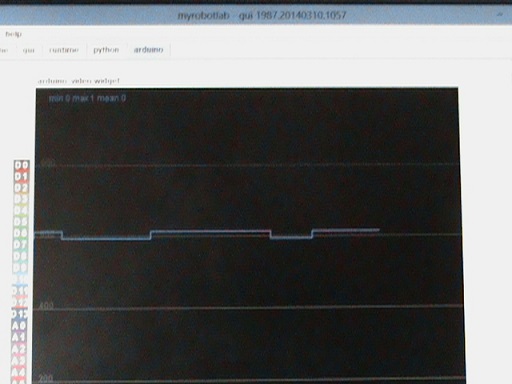

oscope in MRL
this is a noworky ;-P
Round 2
oscope of pin12
make sure you are not trying to trace any analog pins or you will get dashes not nice lines like these
"trap - don't have analog traces running"
line low at no movement,
line goes high and stays up with movement, 4 seconds after movement ends line goes low.
Worky!
