UPDATE 06.03.2014



UPDATE 05.14.2014

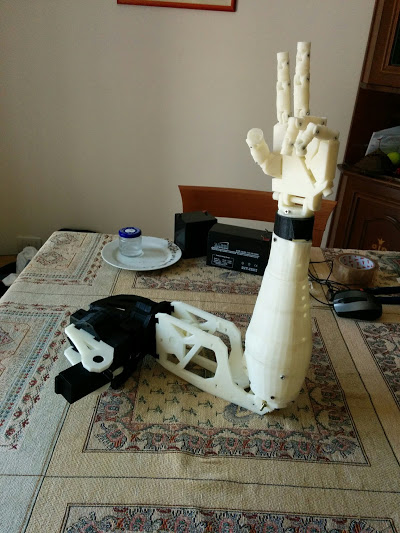

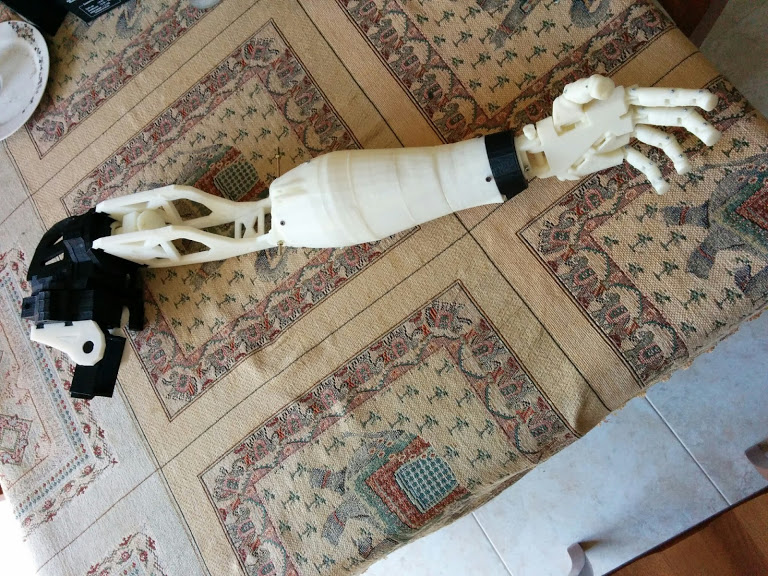

Printing right arm and stringing left hand !!!


UPDATE 03.07.2014

Servo christmas :D

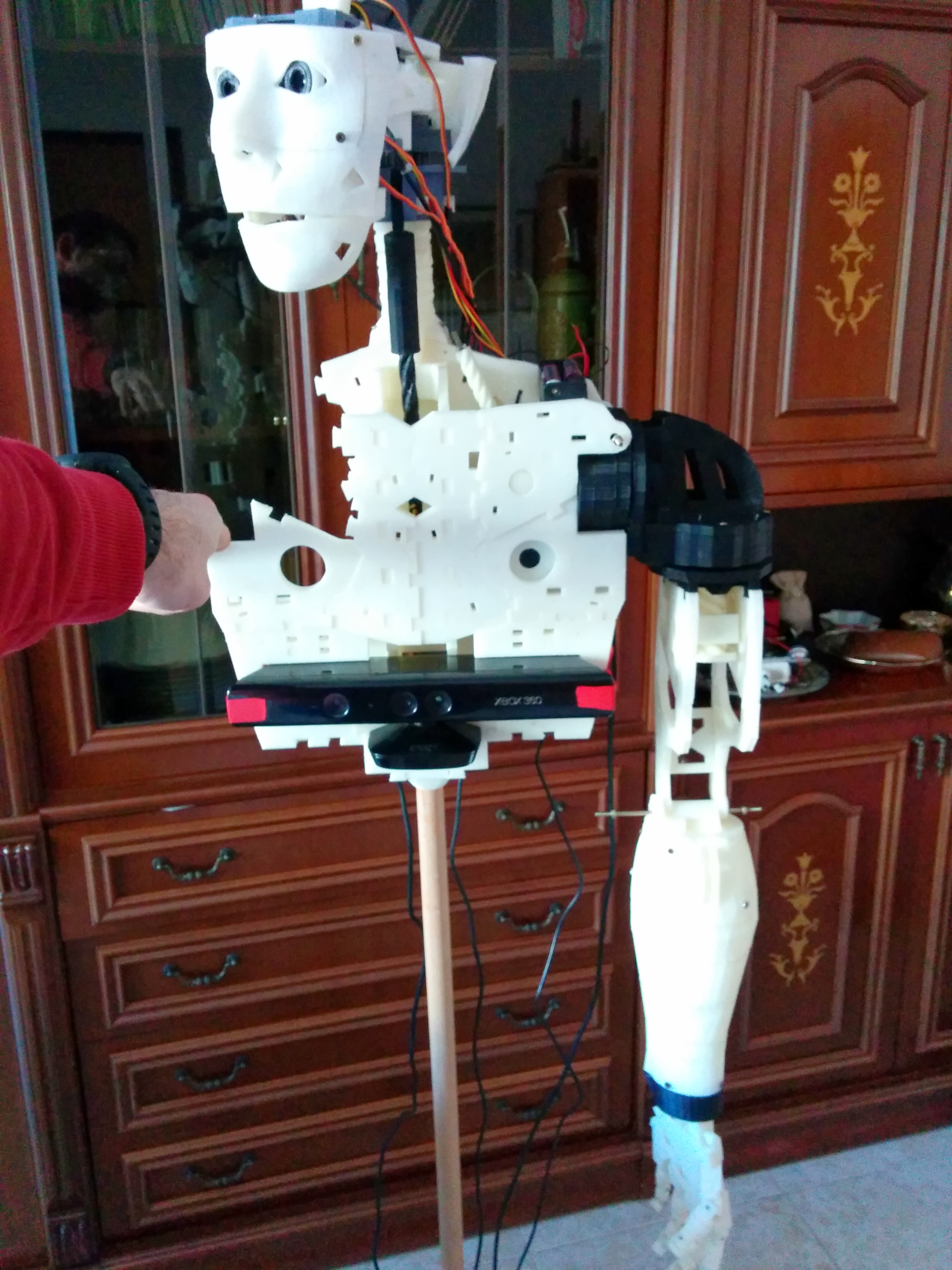

UPDATE 03.04.2014

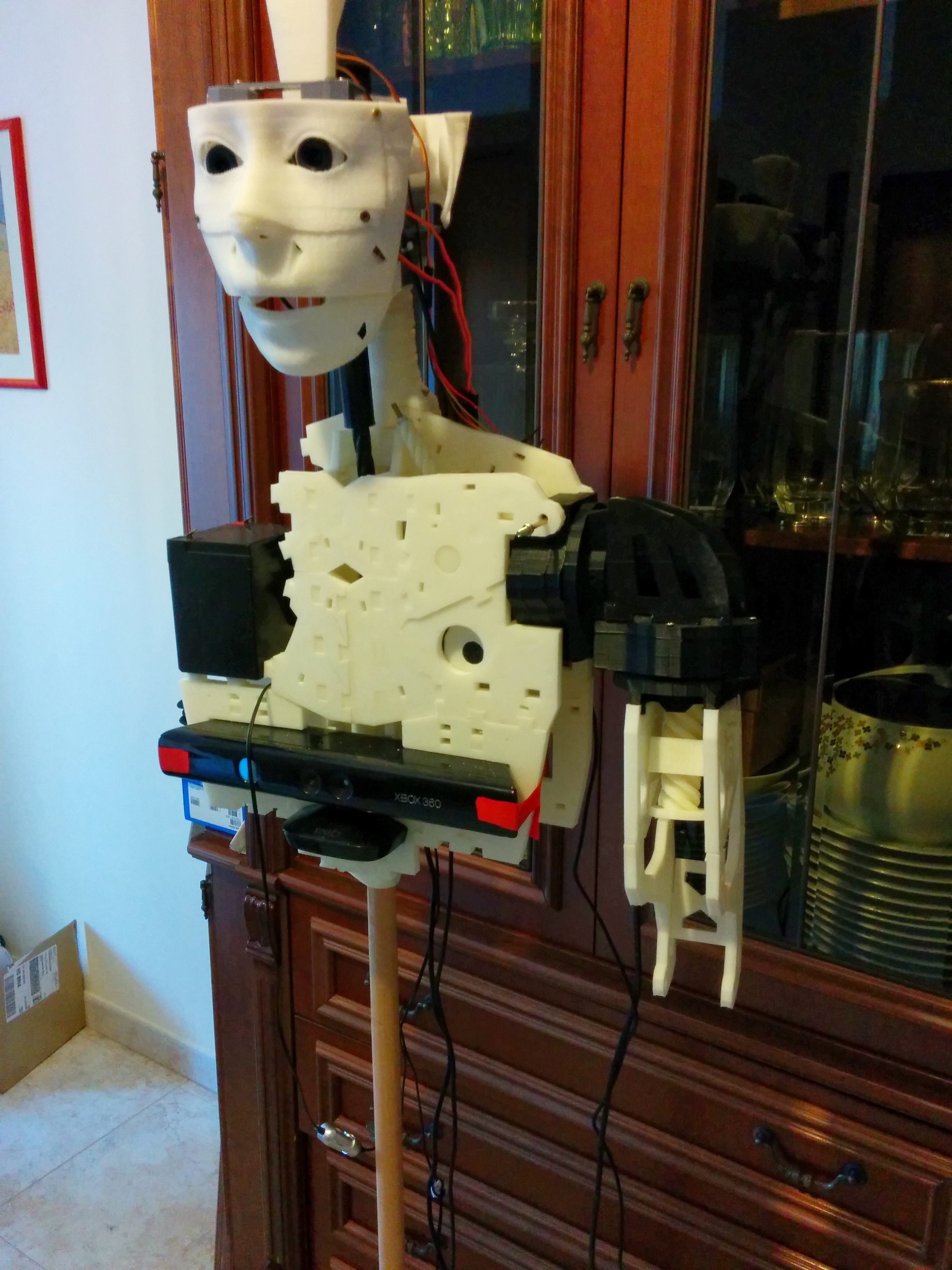

UPDATE 02.25.2014


.UPDATE 02.07.2014

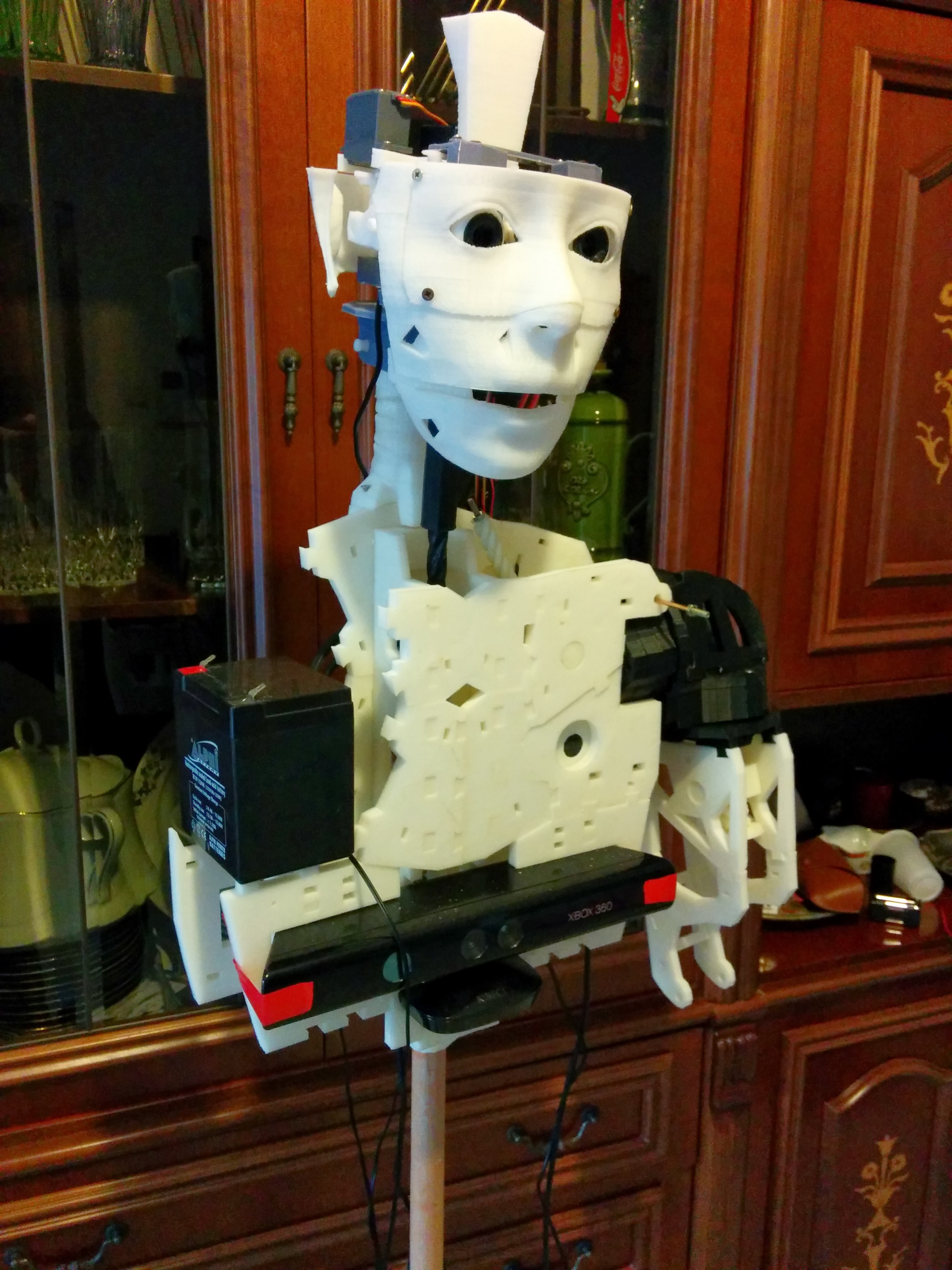

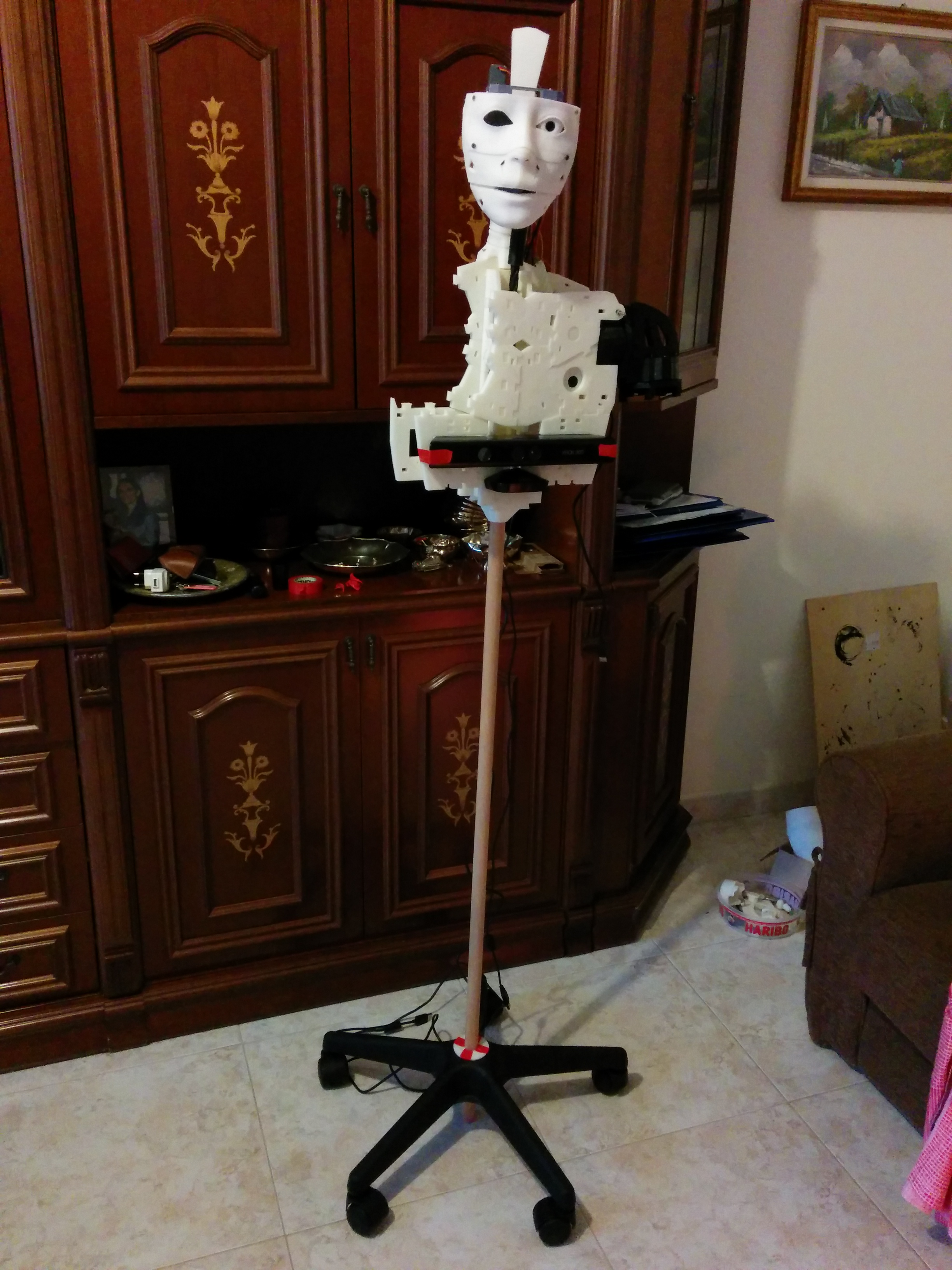

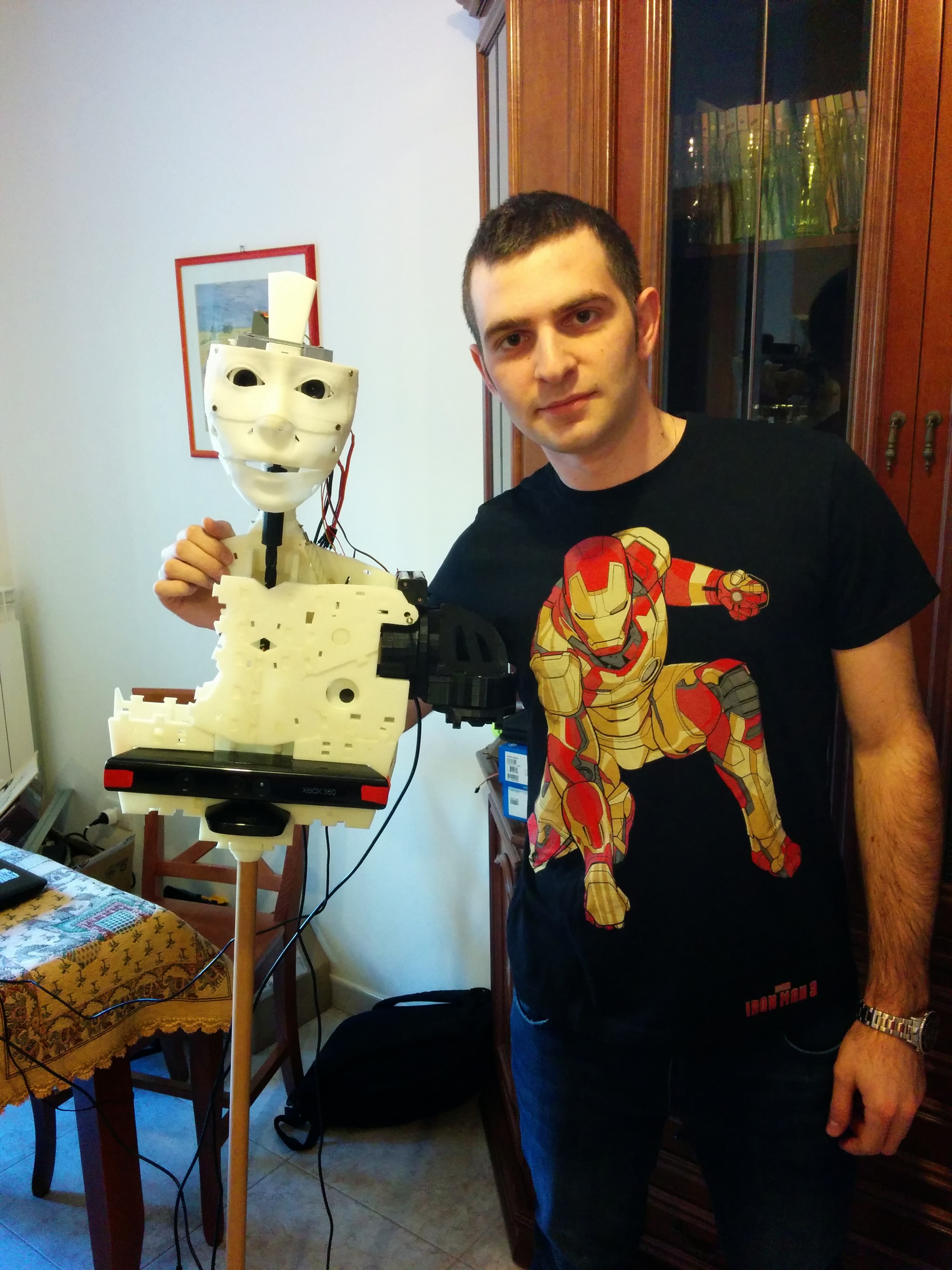

InMoov now stands on his own stick :)

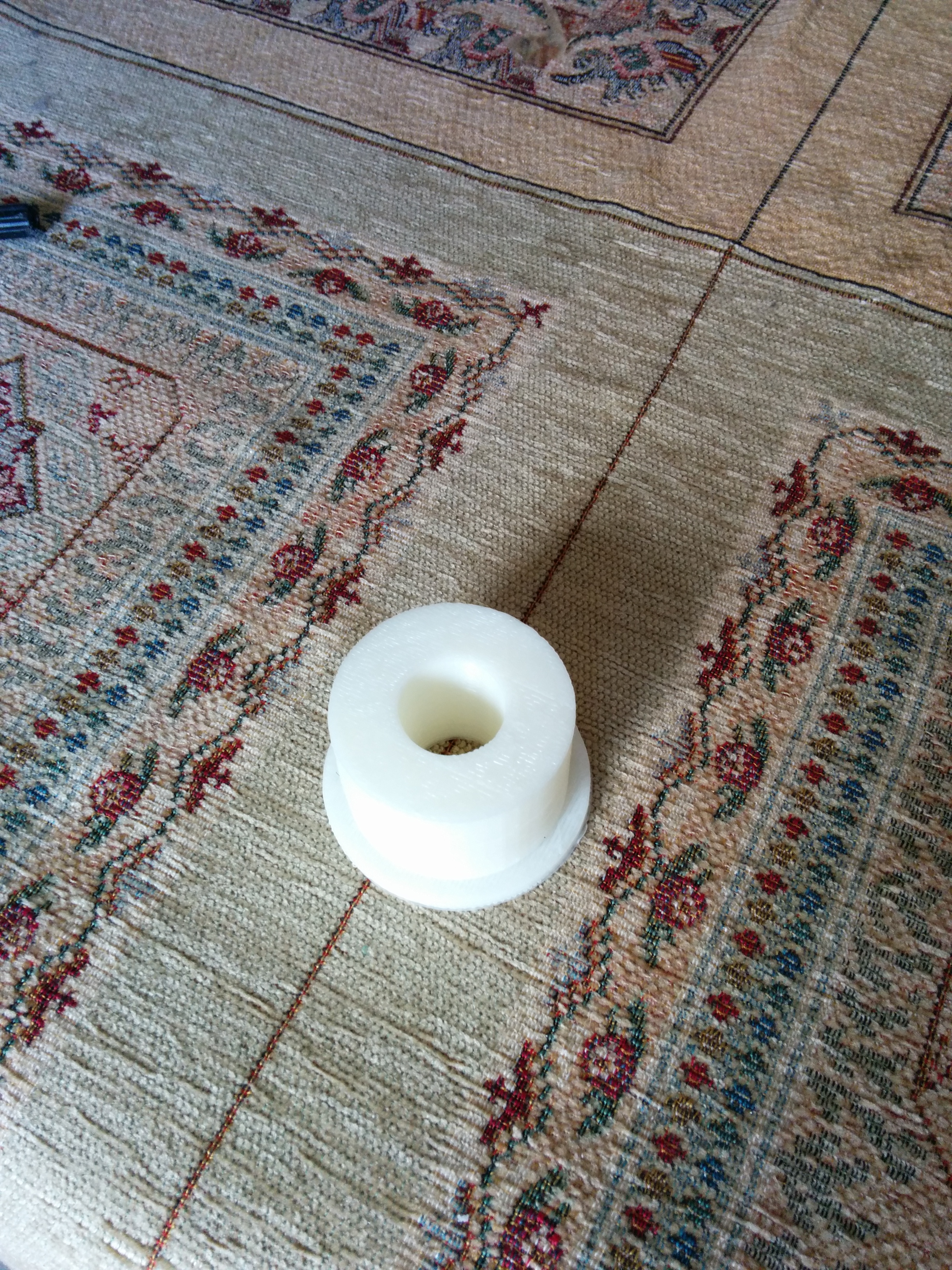

Adapter I designed and printed to make the stick fit with the hole in the chair base...


UPDATE 02.07.2014

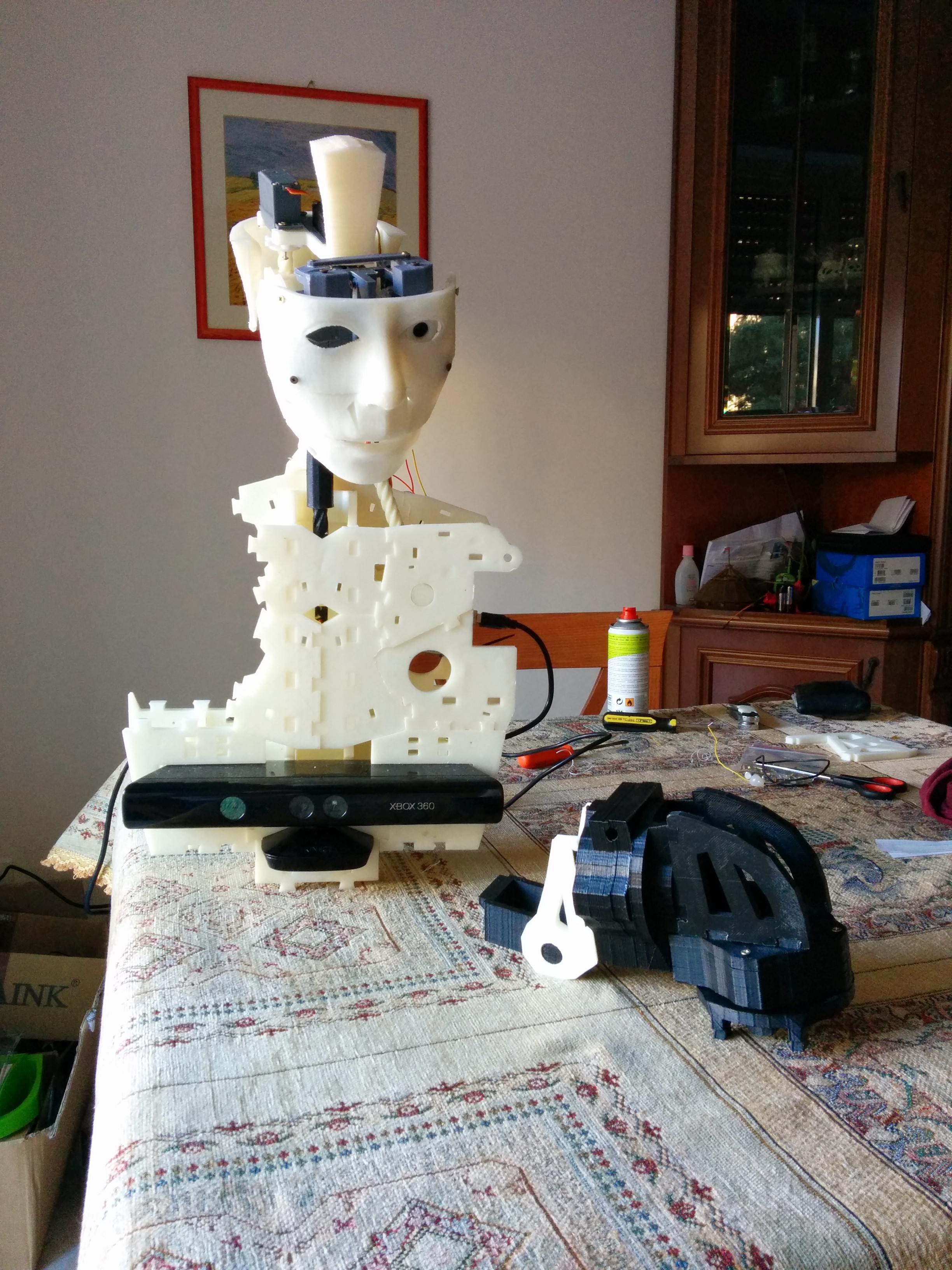

InMoov saying : "Ale, you've built a shoulder for me??? Please...attach it to me !! :)

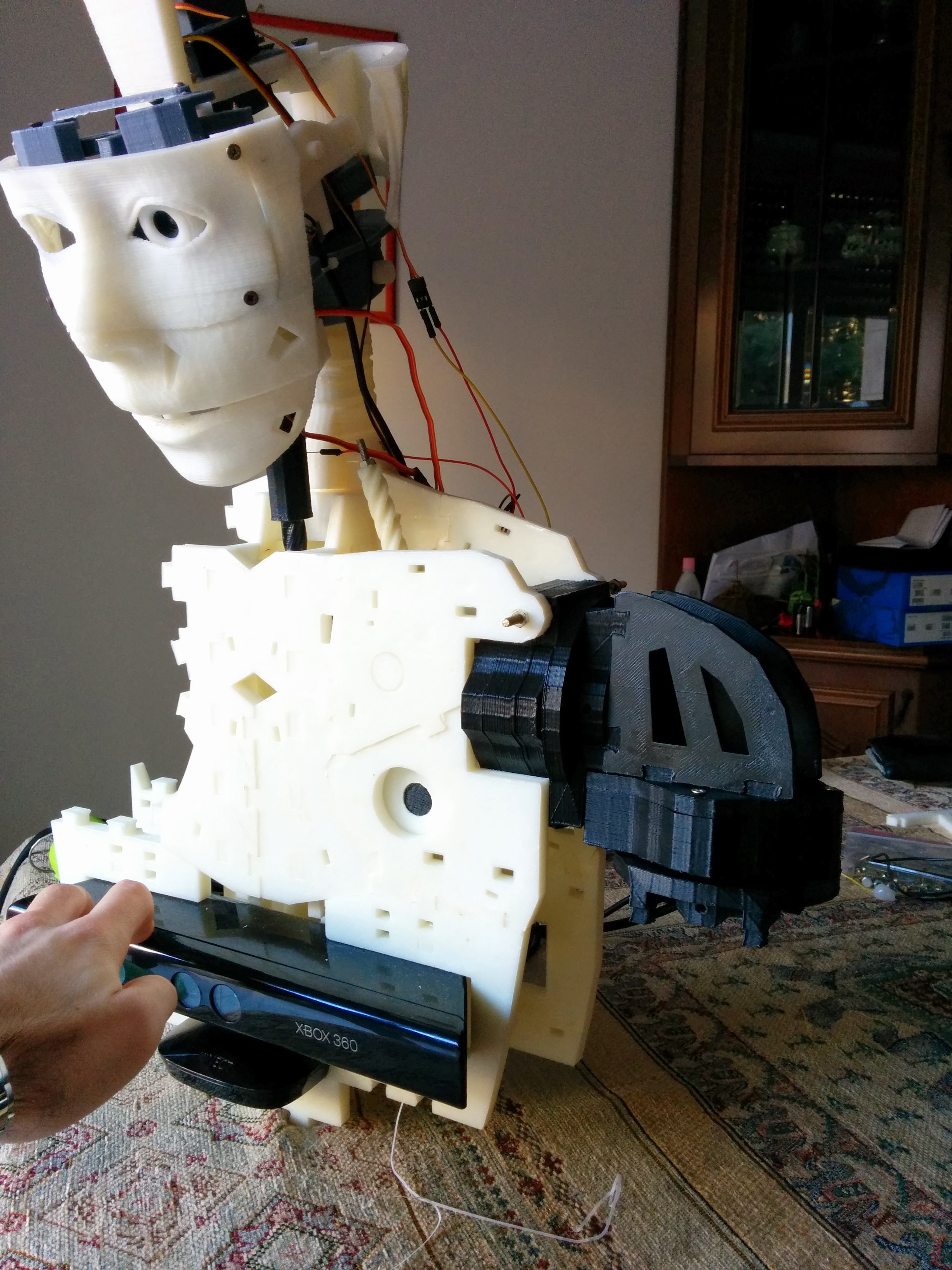

InMoov proud of his new shoulde/omoplate/rotation :)


UPDATE 01.23.2014


UPDATE 01.22.2014


UPDATE 01.17.2014


UPDATE 12.20.2013

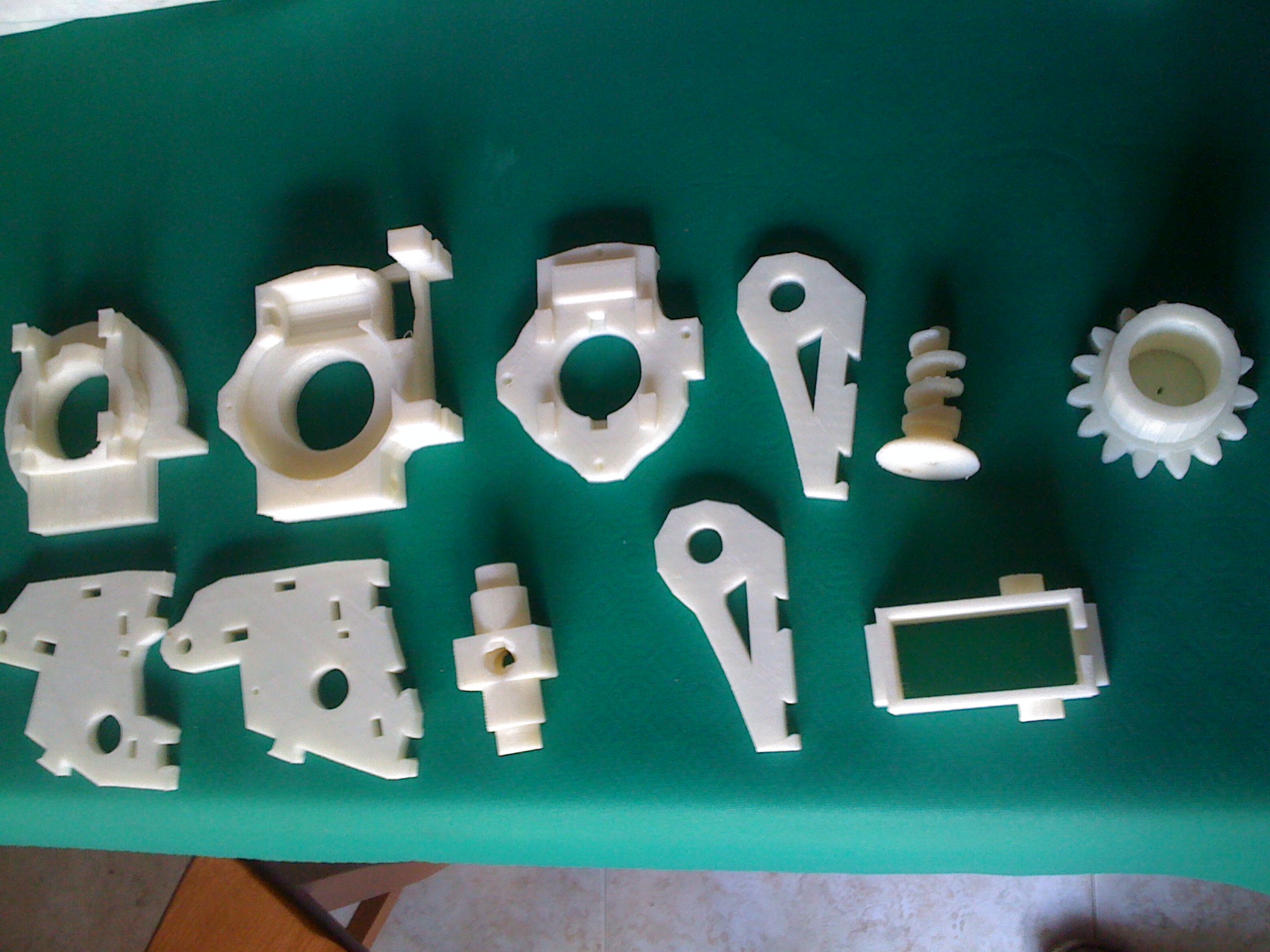

More shoulder parts..almost finished

UPDATE 12.16.2013

Shoulder !!! :)

UPDATE 12.10.2013

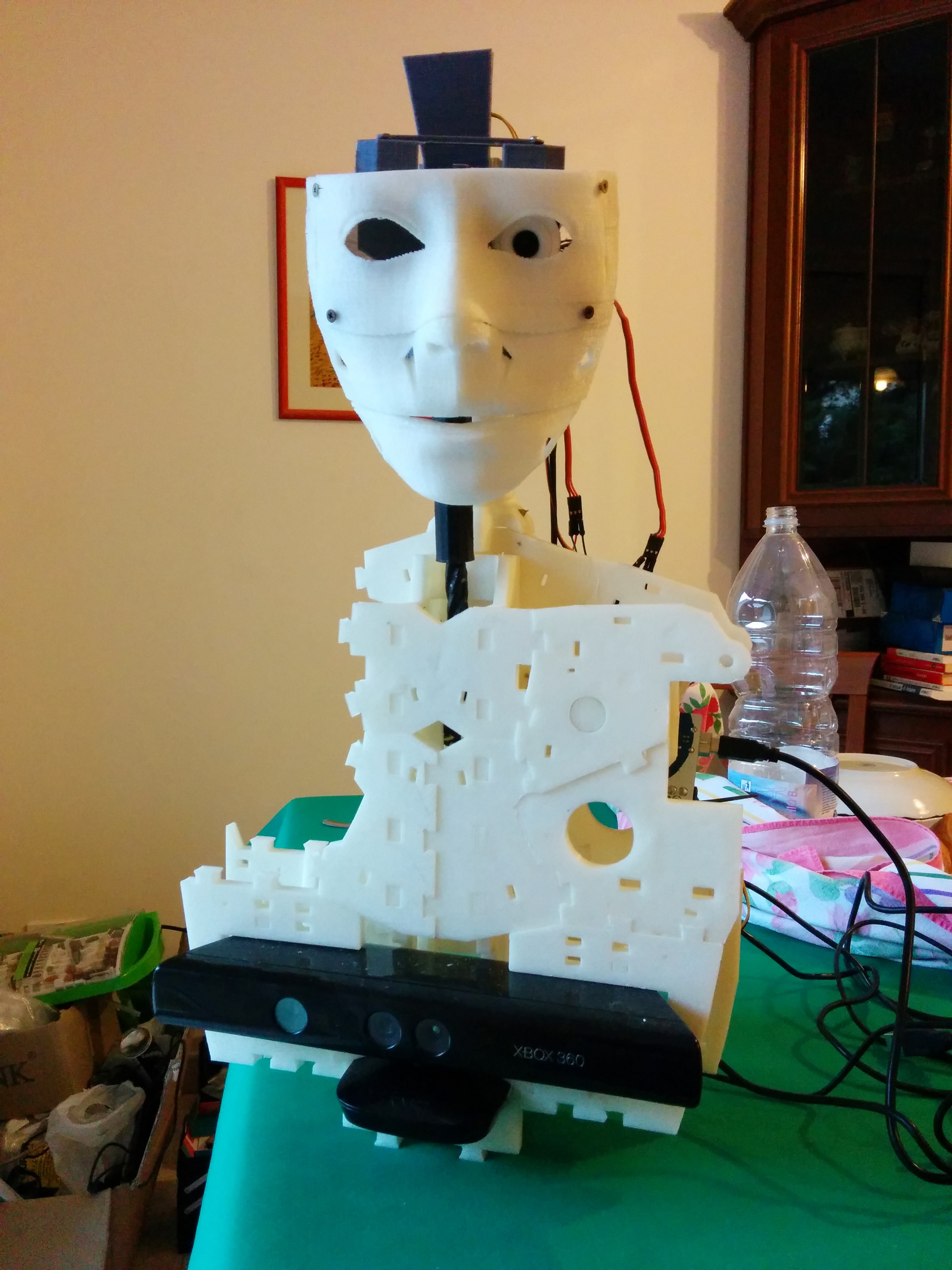

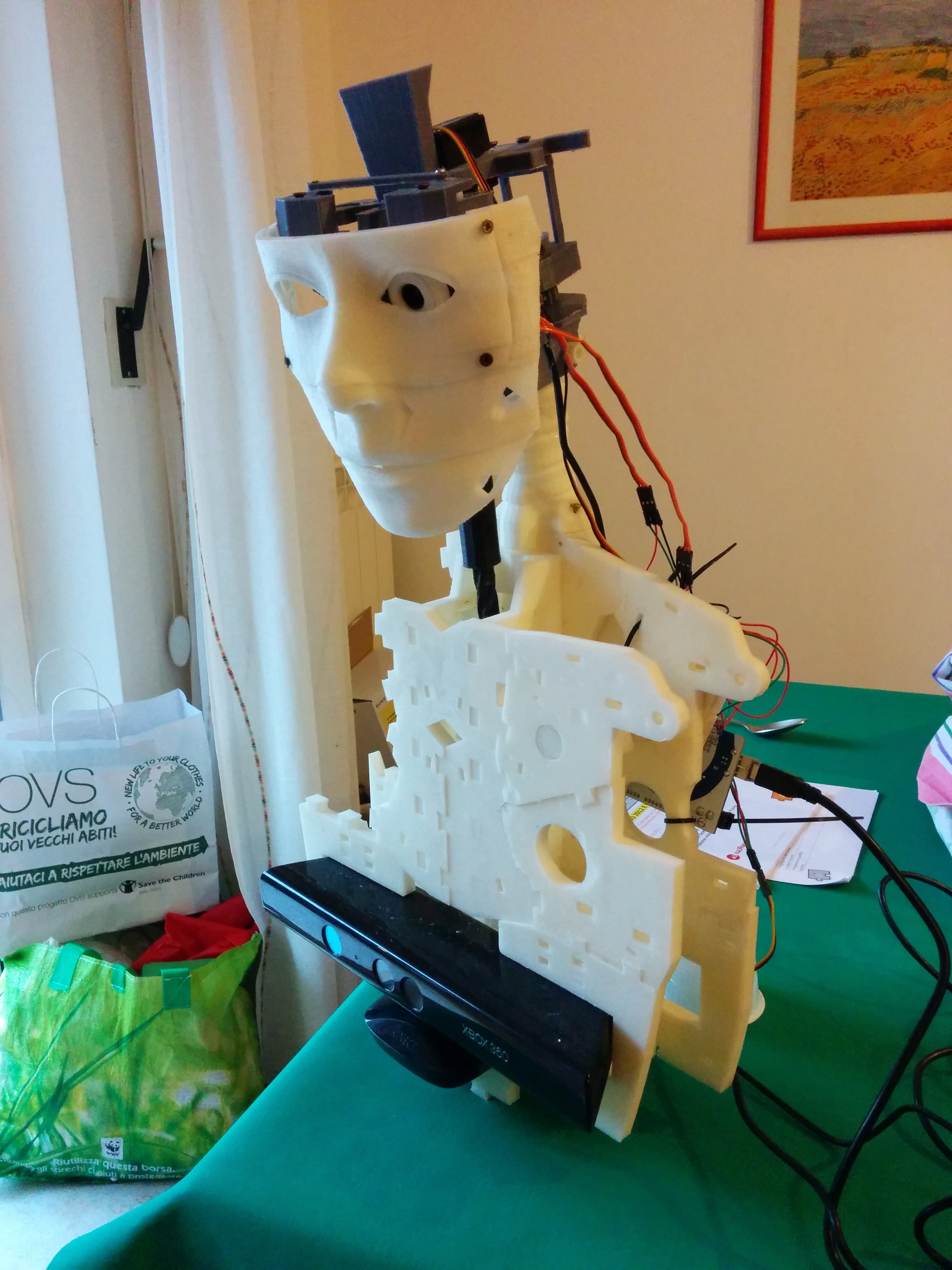

My Baby is growing, he is learning how to use his Infrared and 3D Vision...so cute :)




UPDATE 12.09.2013

Printer is working hard :) Kinect holder parts :)


UPDATE 12.06.2013


UPDATE 12.04.2013

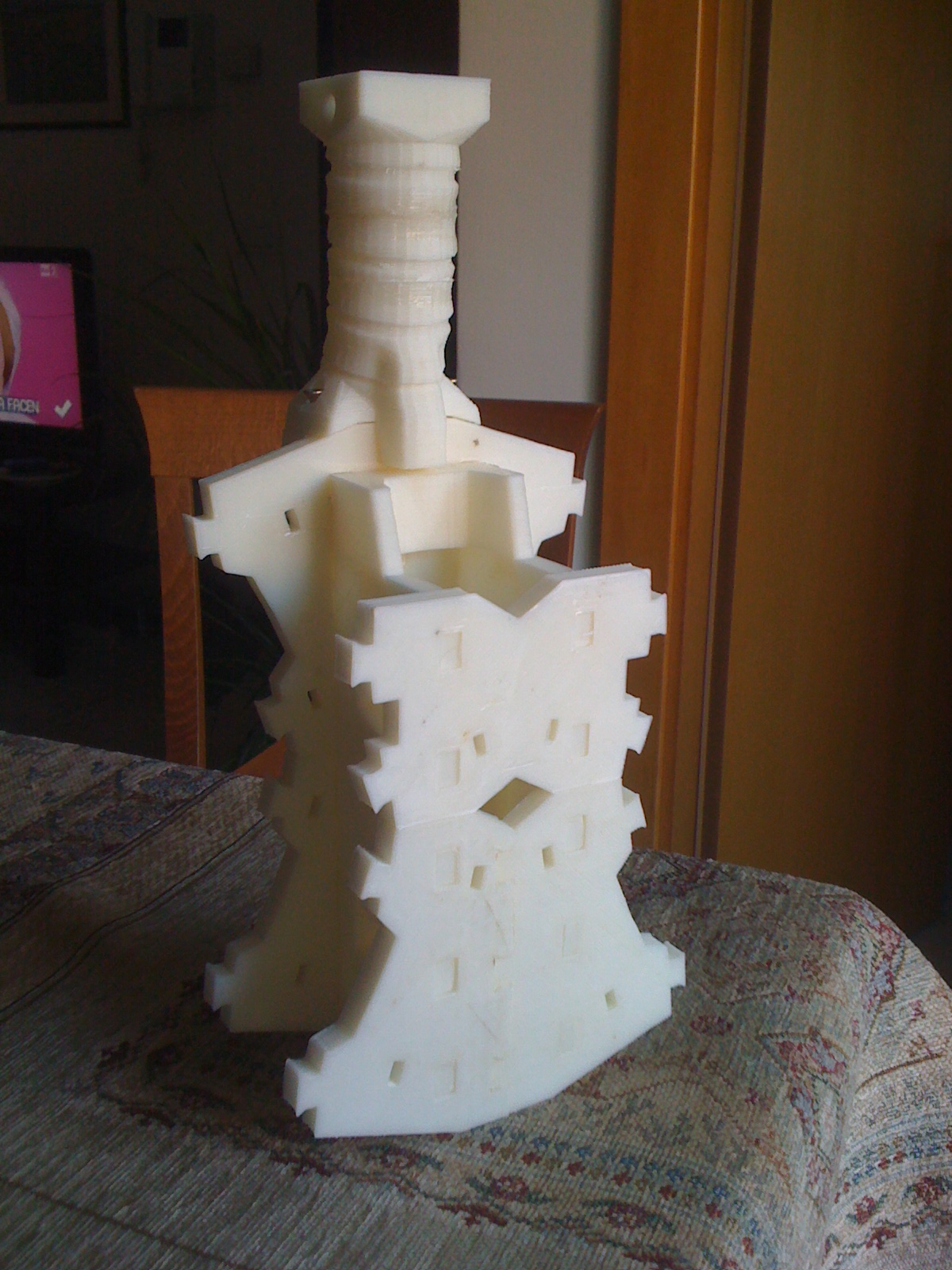

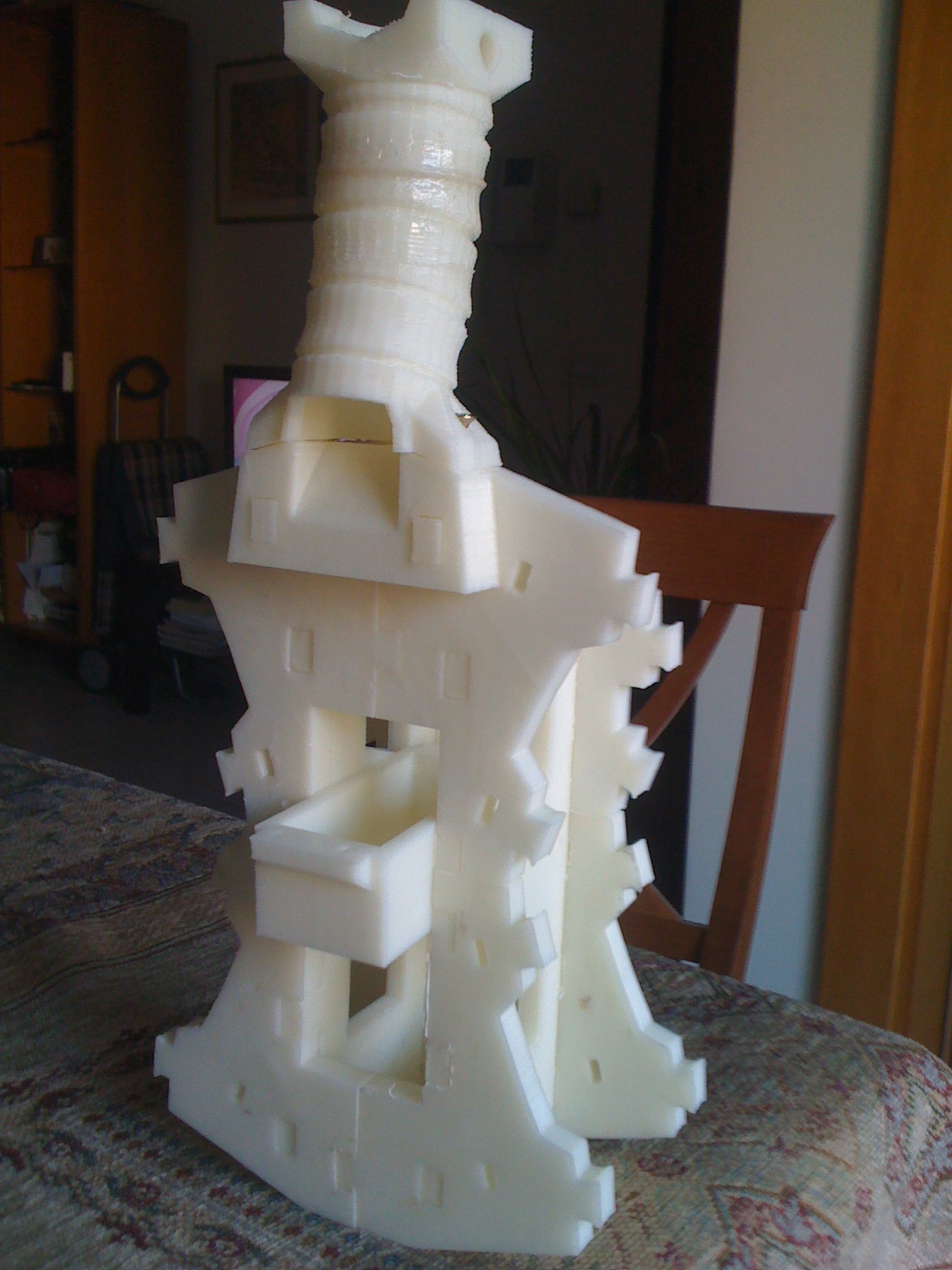

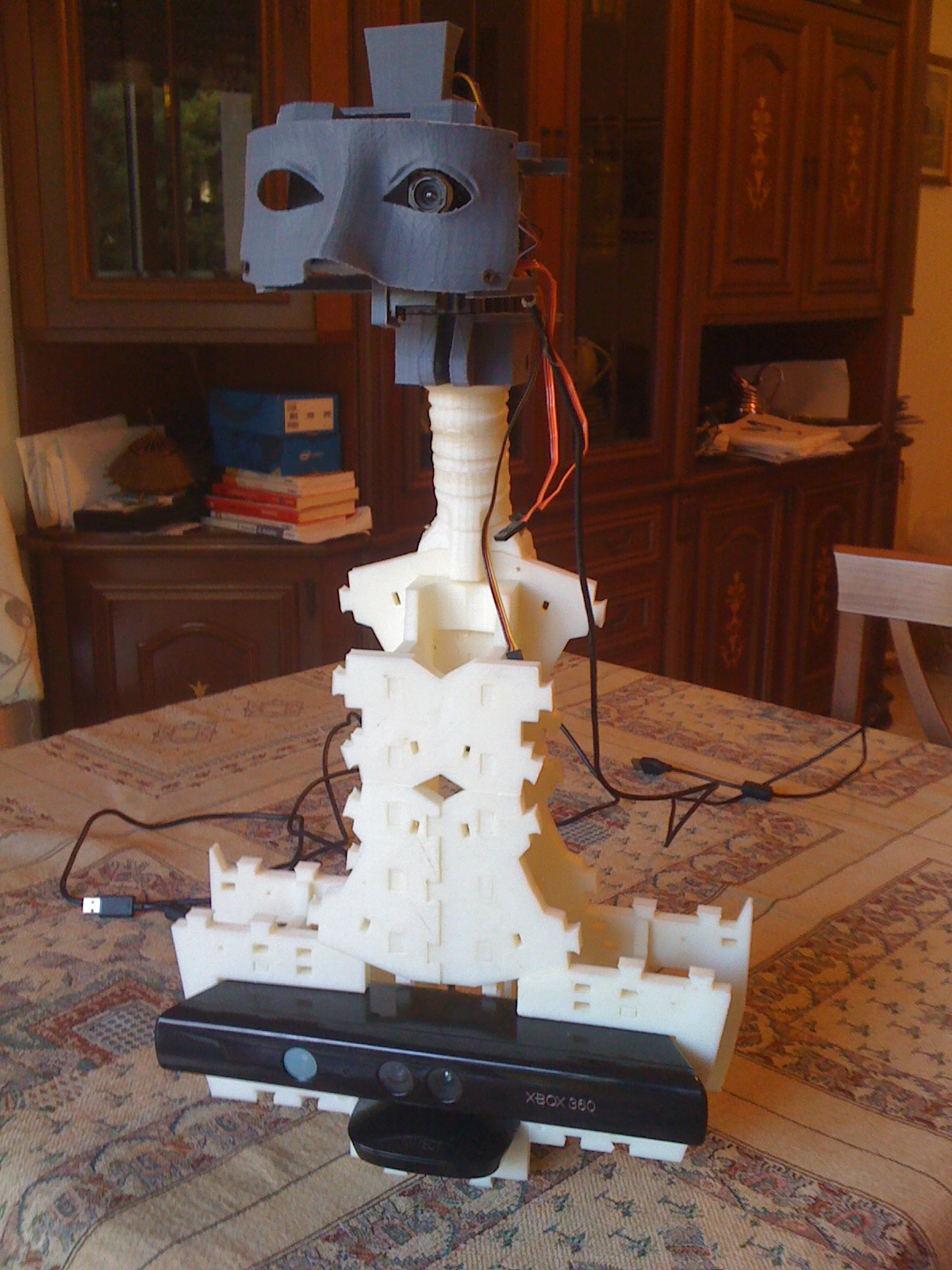

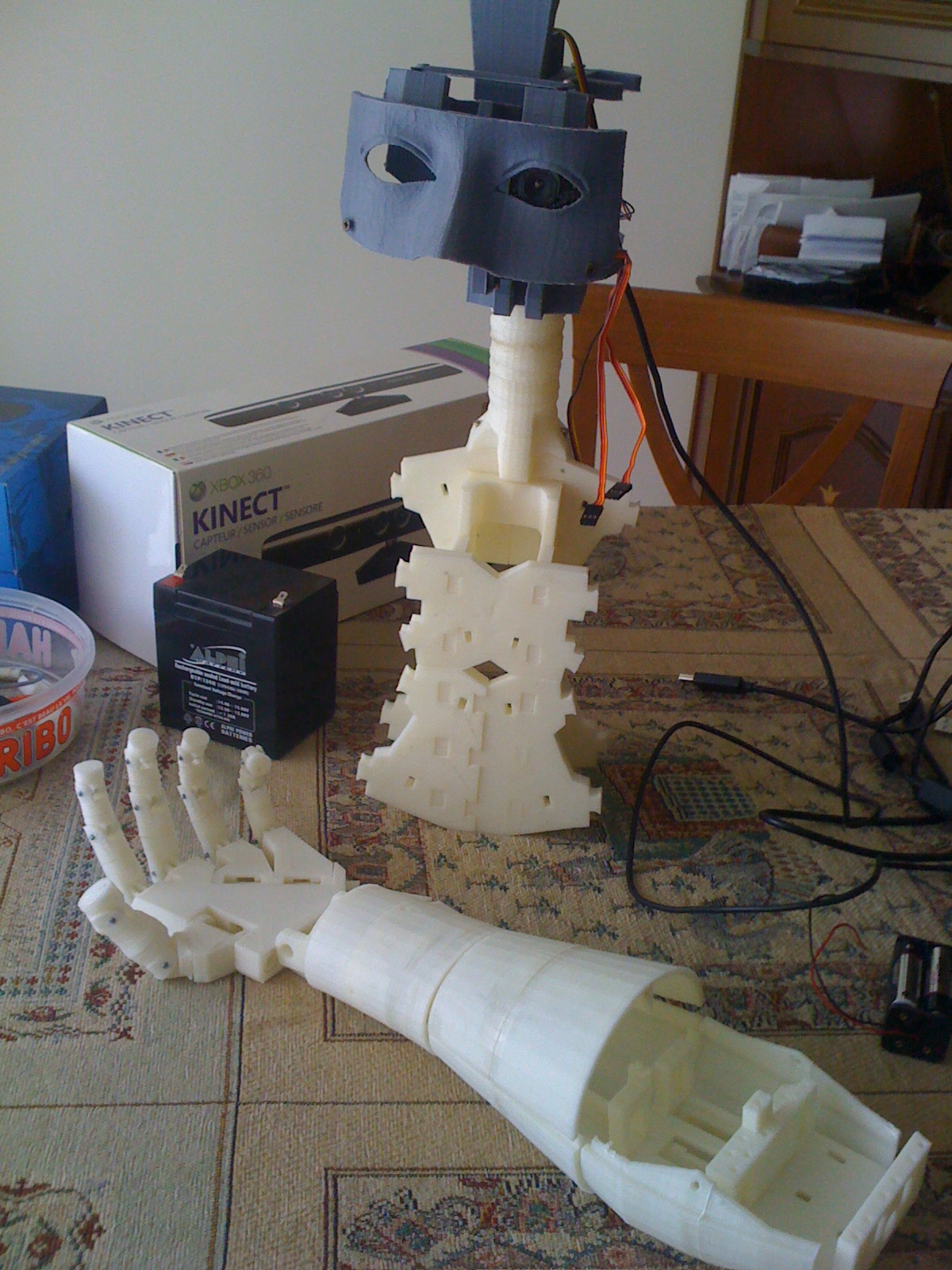

Torso + Neck assembled

UPDATE 12.03.2013

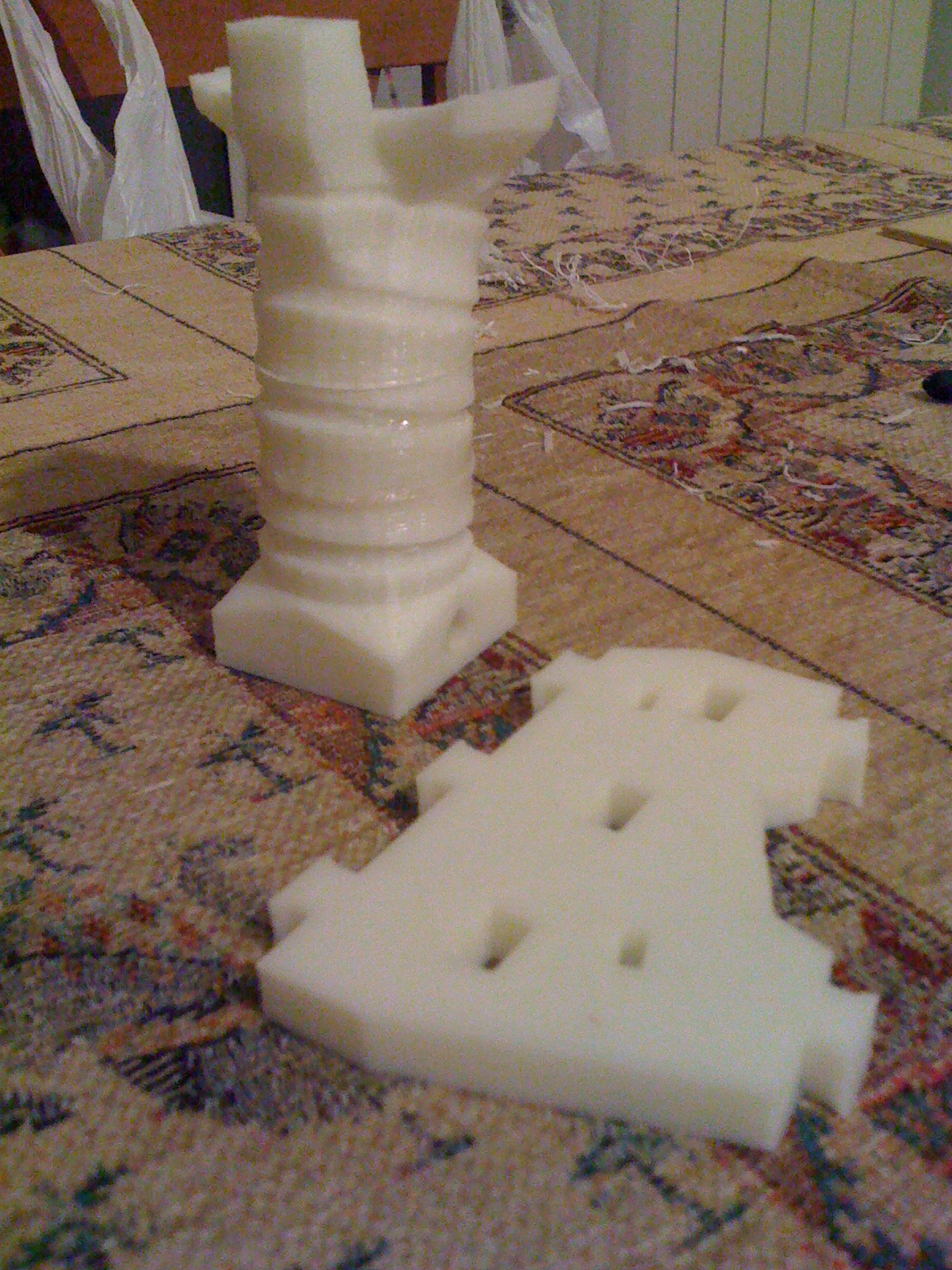

One More Torso piece and the neck...

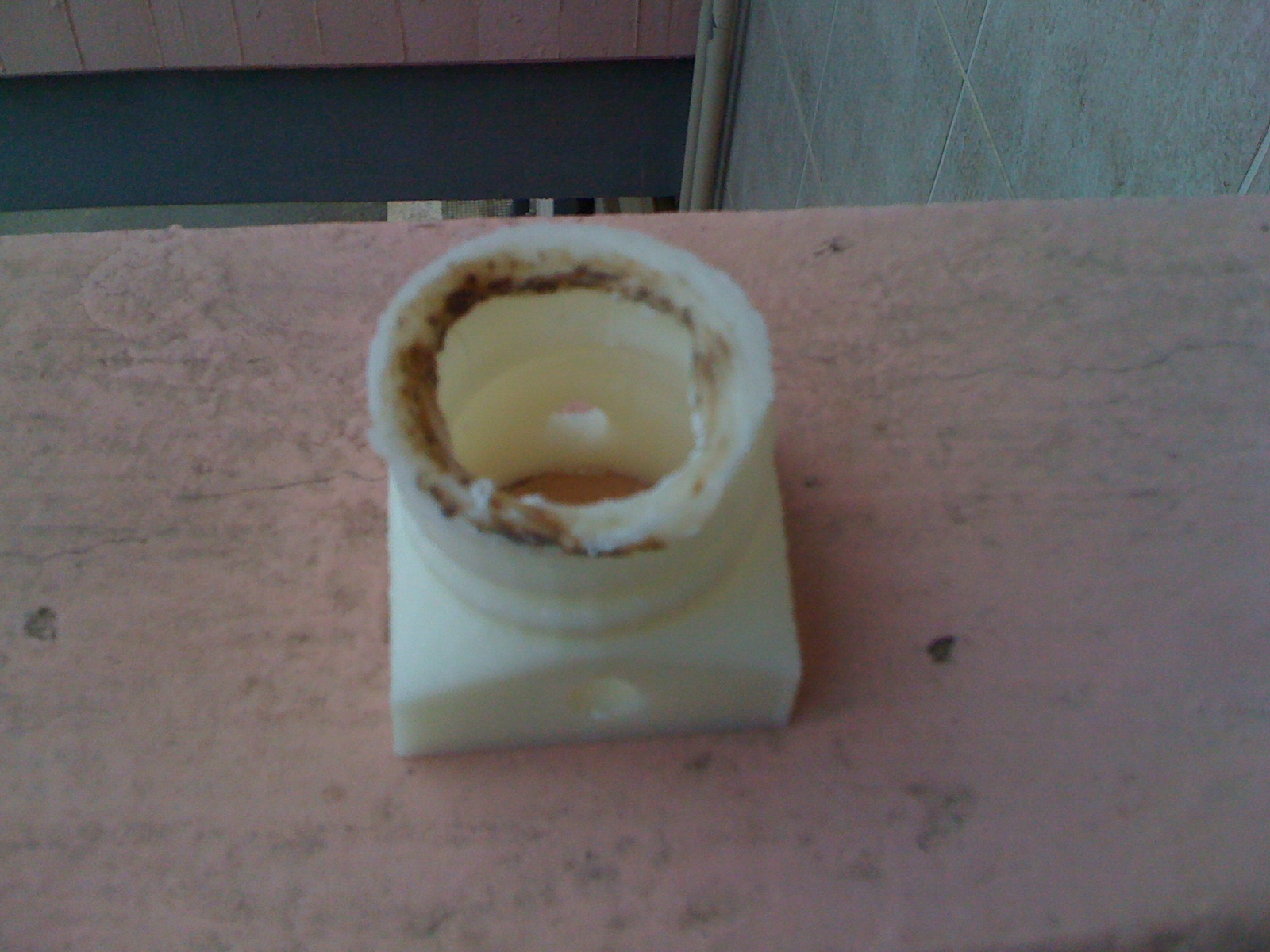

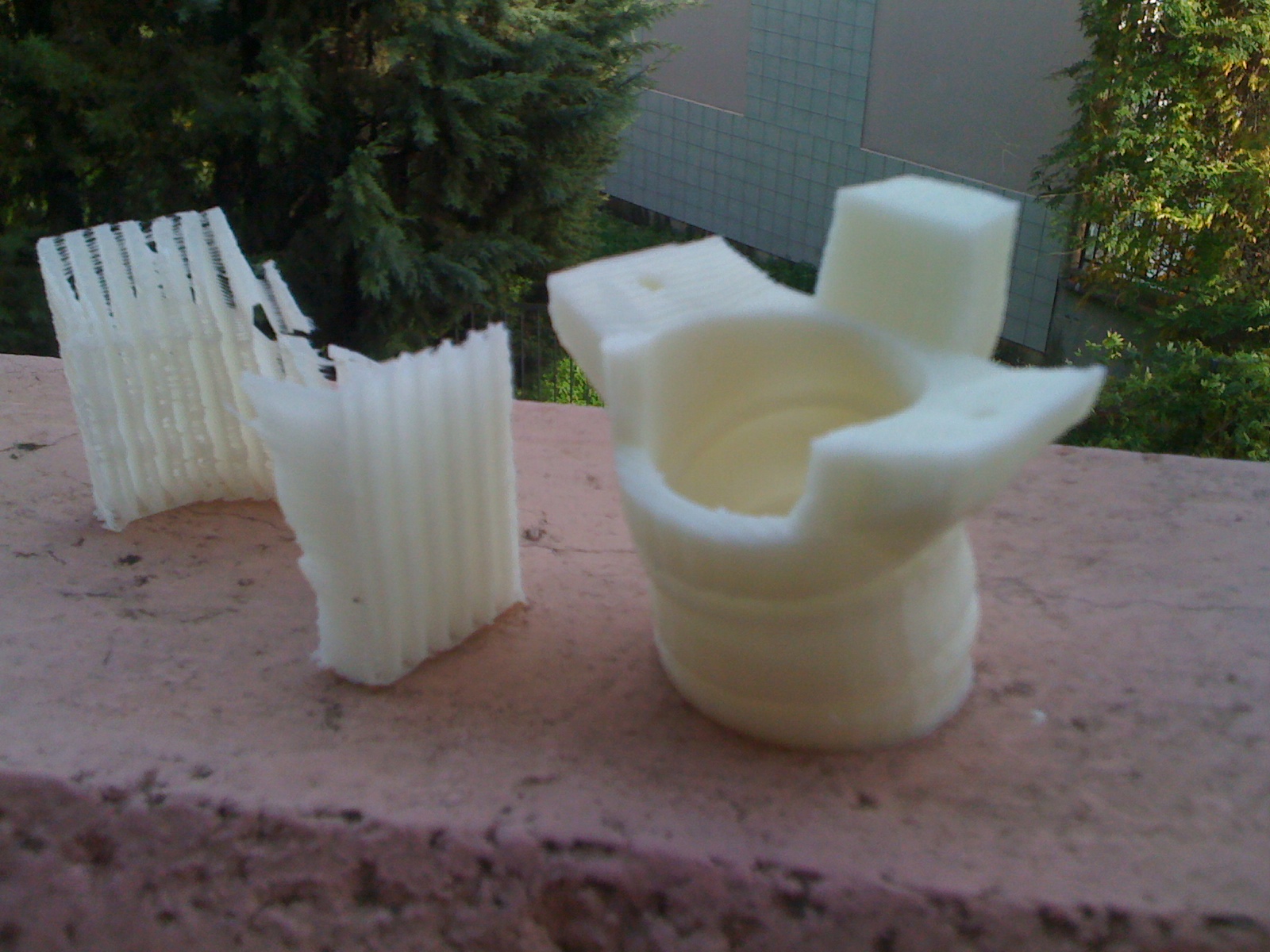

This is after the x-axis has fallen on the piece during the printing

Neck part with and without the support material (i hate support :p )


UPDATE 12.02.2013

3 more torso pieces after filament christmas !! yay...

UPDATE 11.29.2013

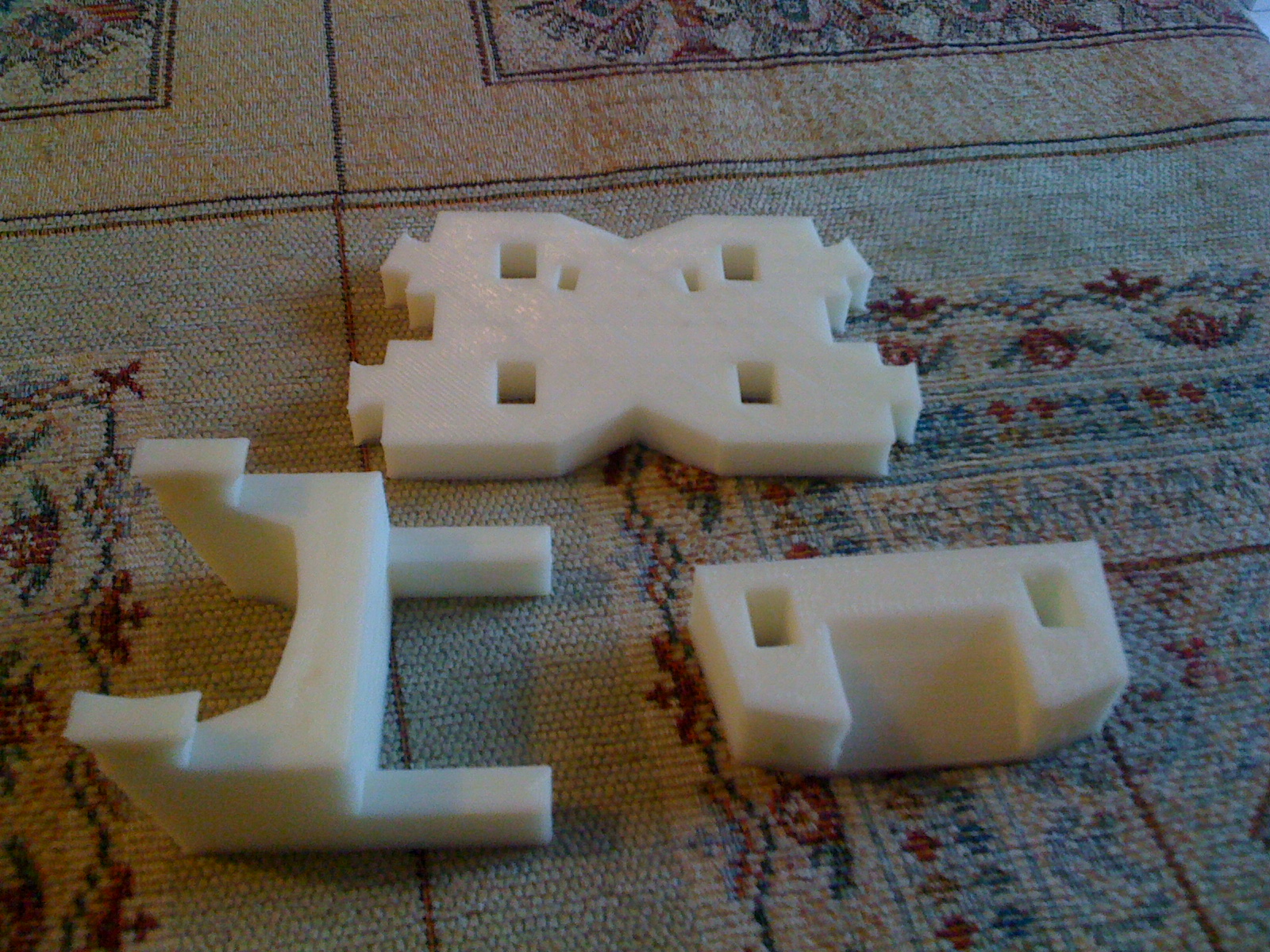

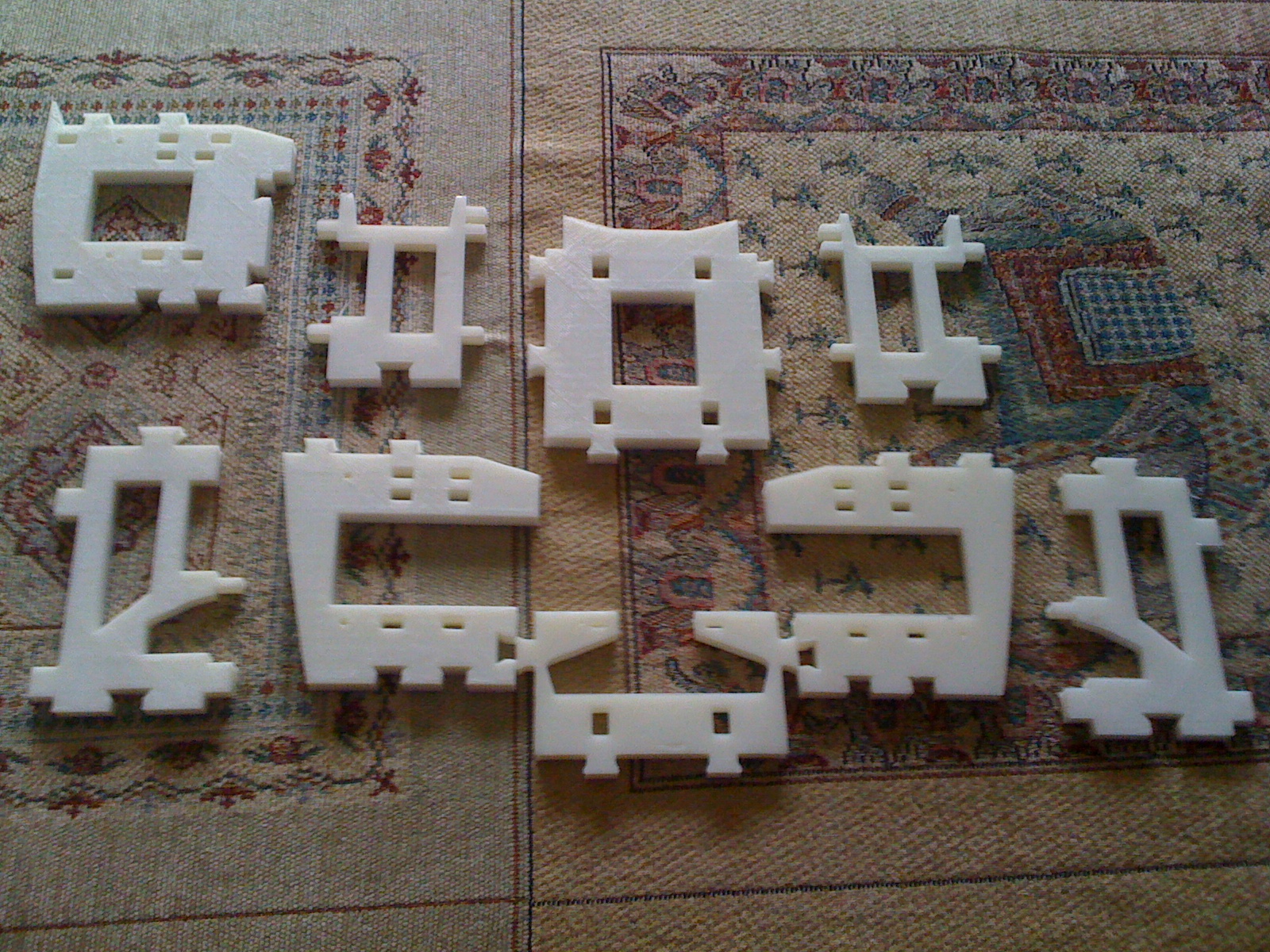

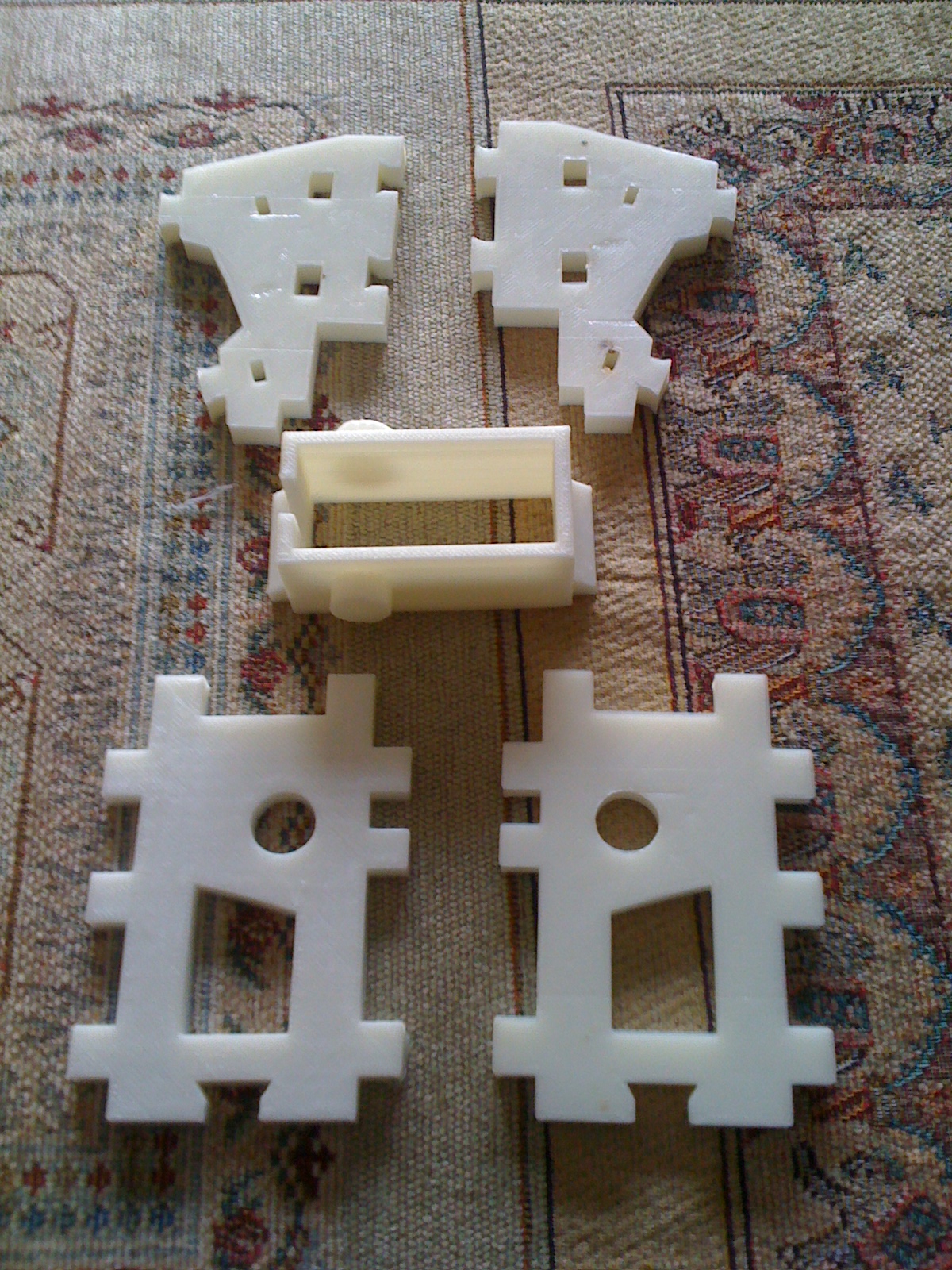

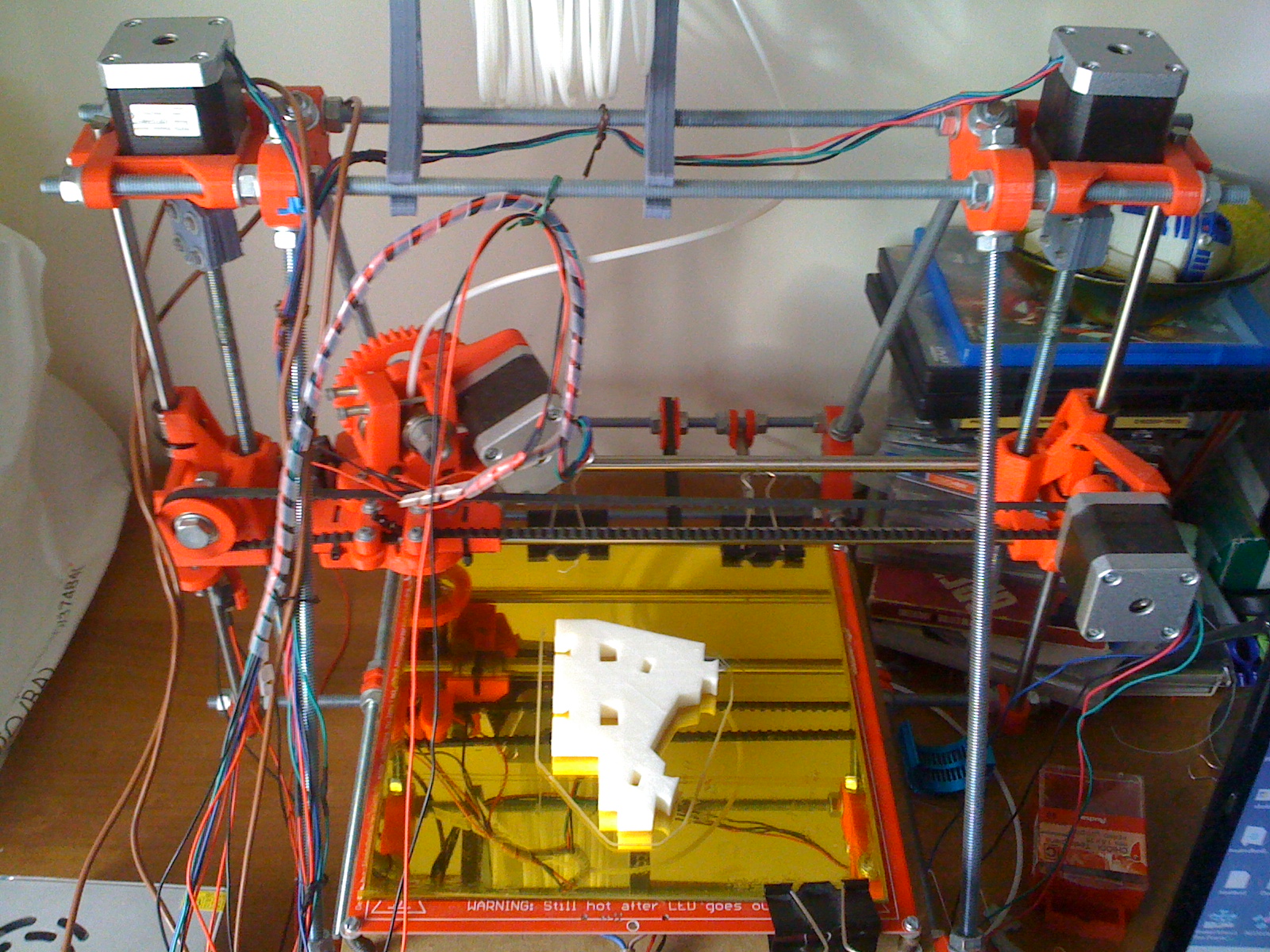

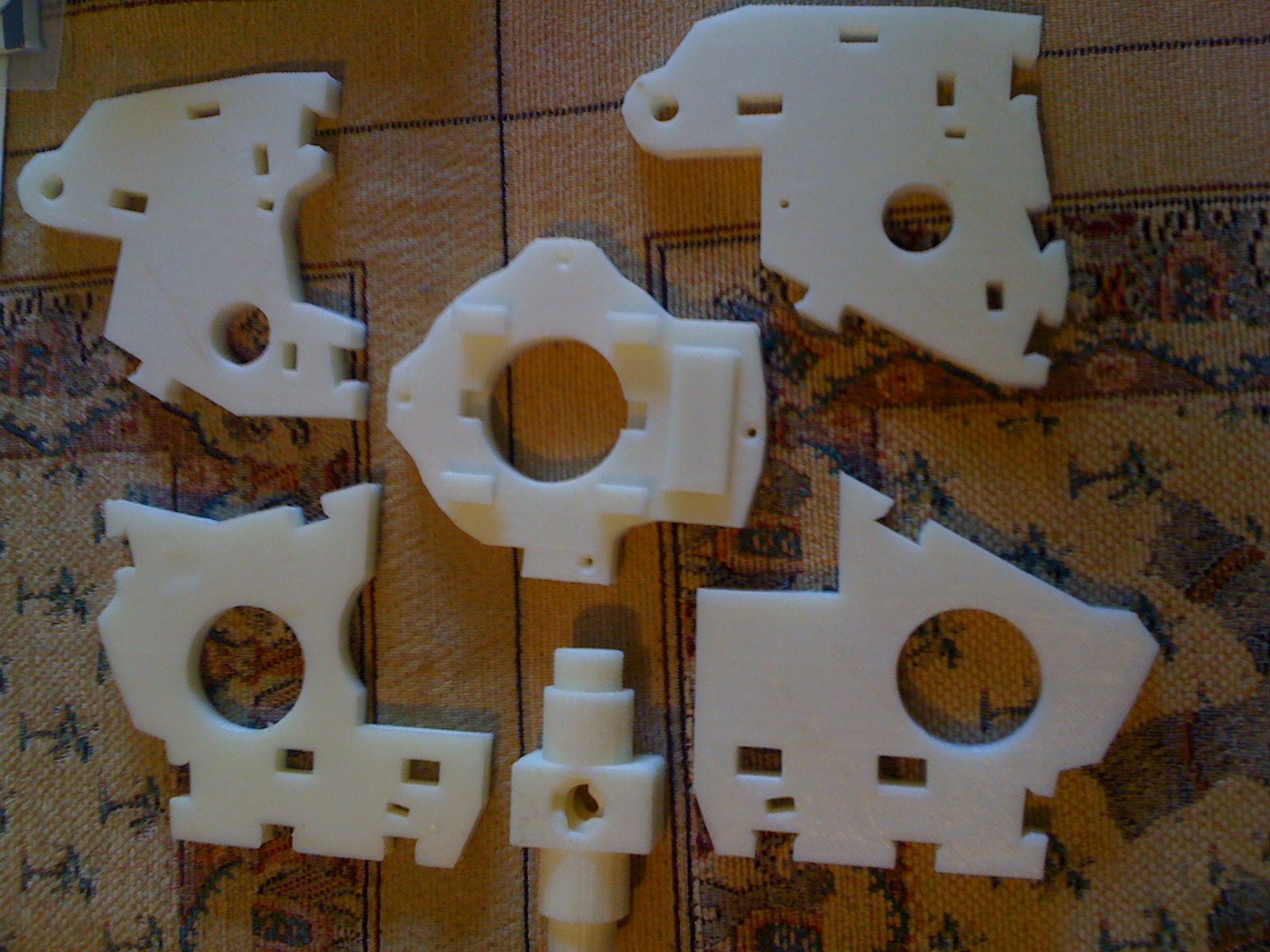

Torso pieces...


UPDATE 11.27.2013

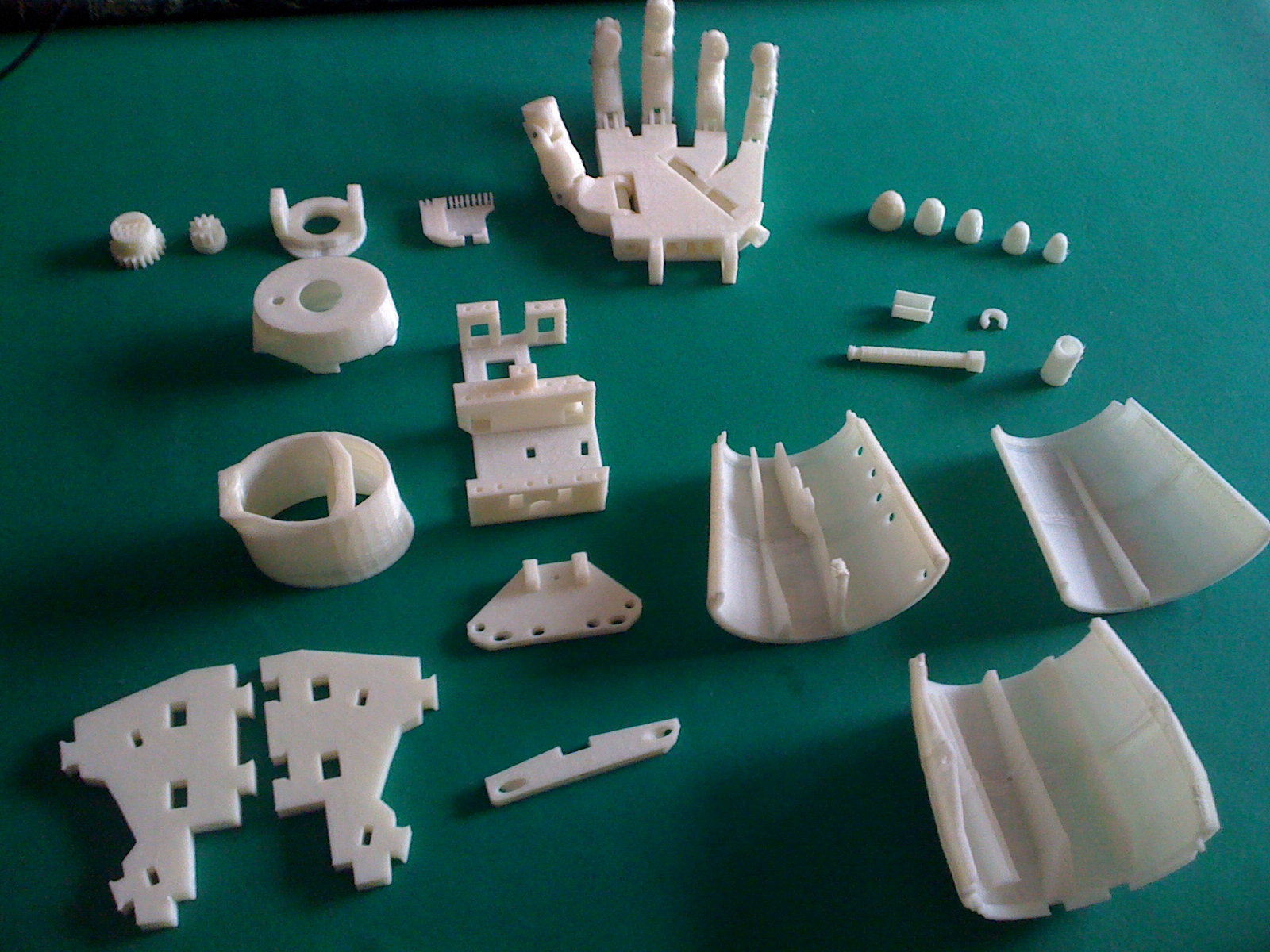

InMoov parts printed so far

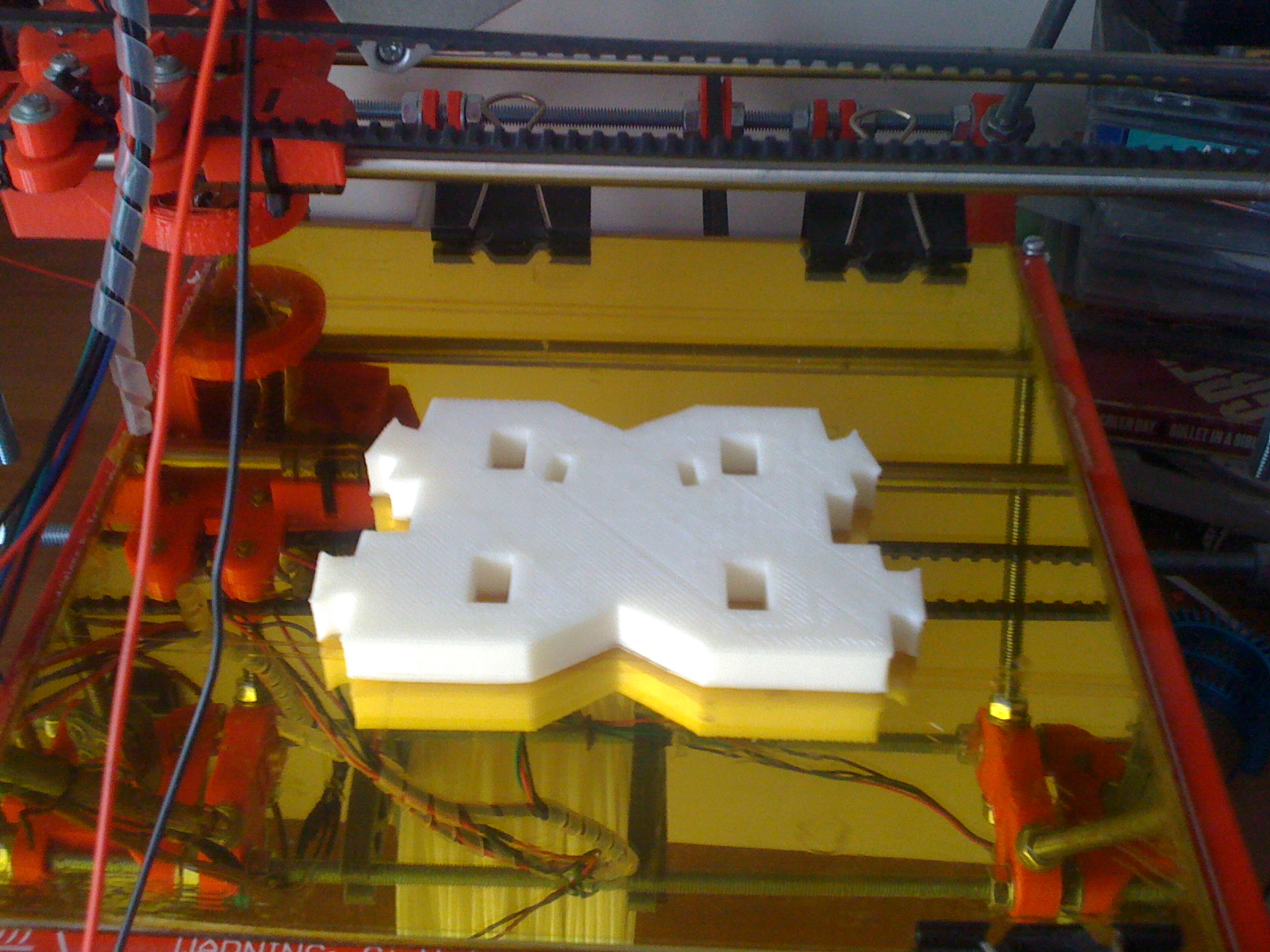

First torso piece...homoplate back...

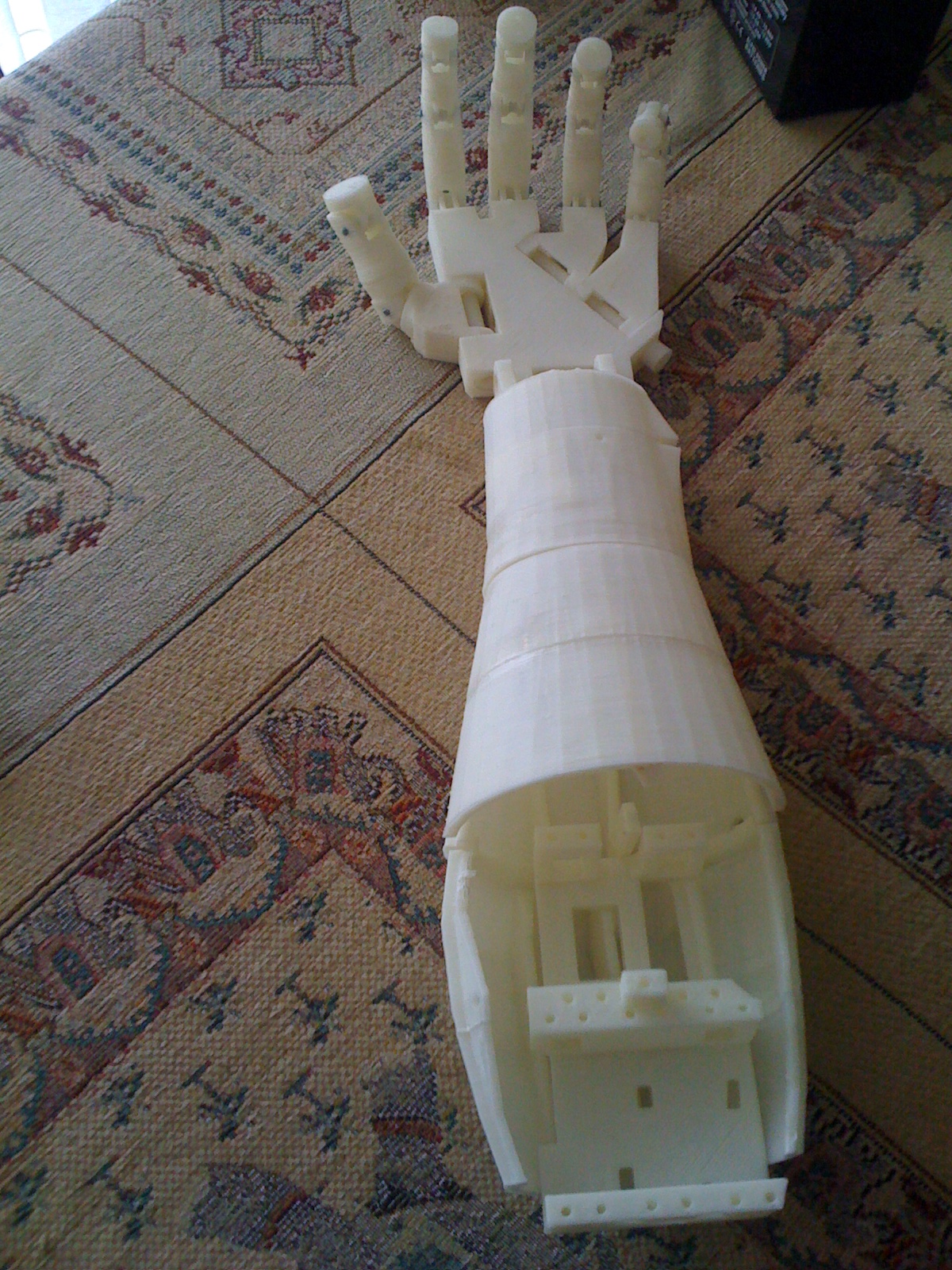

I decided to print the torso after the forearm, so i can mount the head and i MUST finish the bicep :)



UPDATE 10.24.2013



UPDATE 10.23.2013

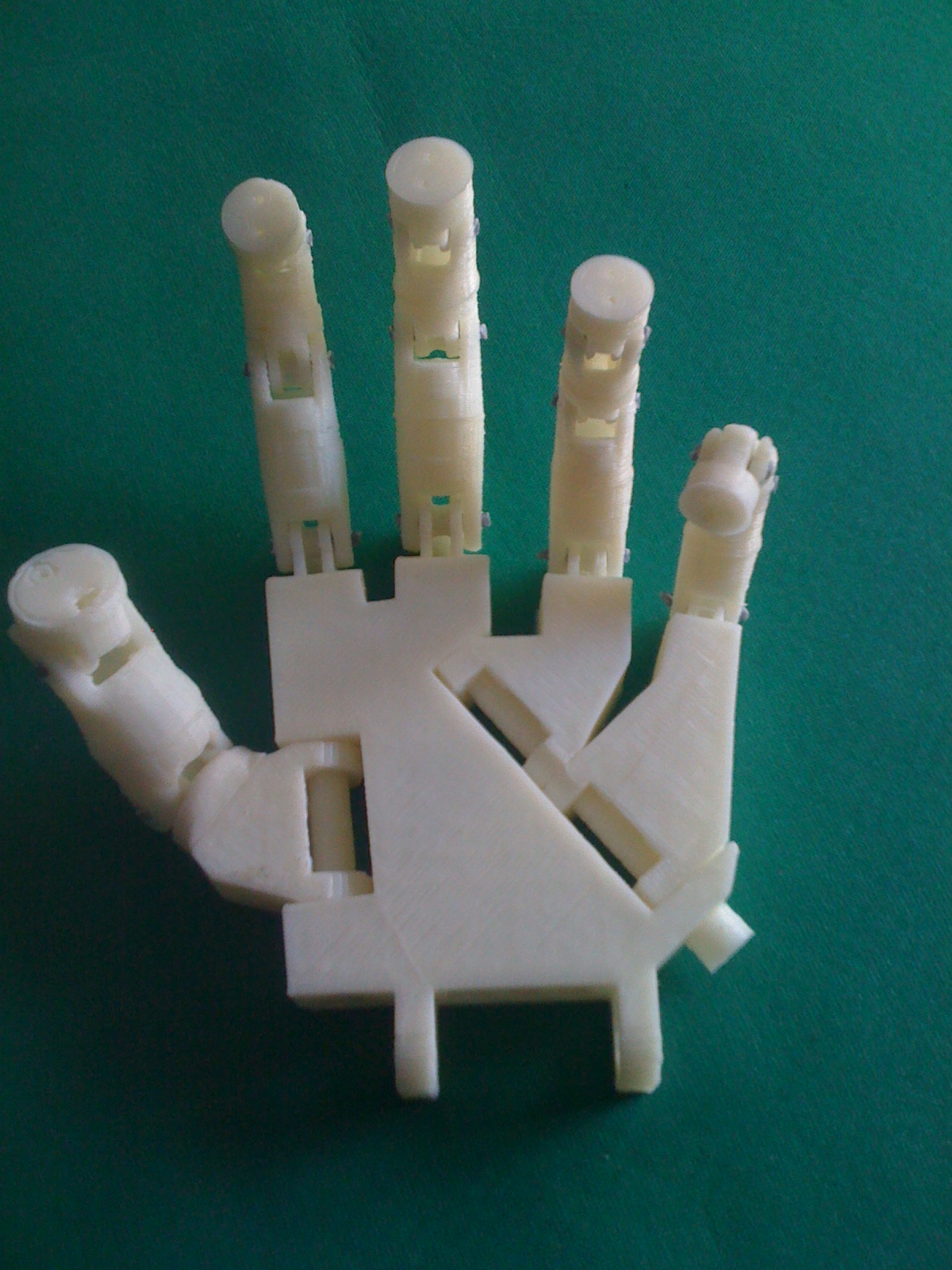

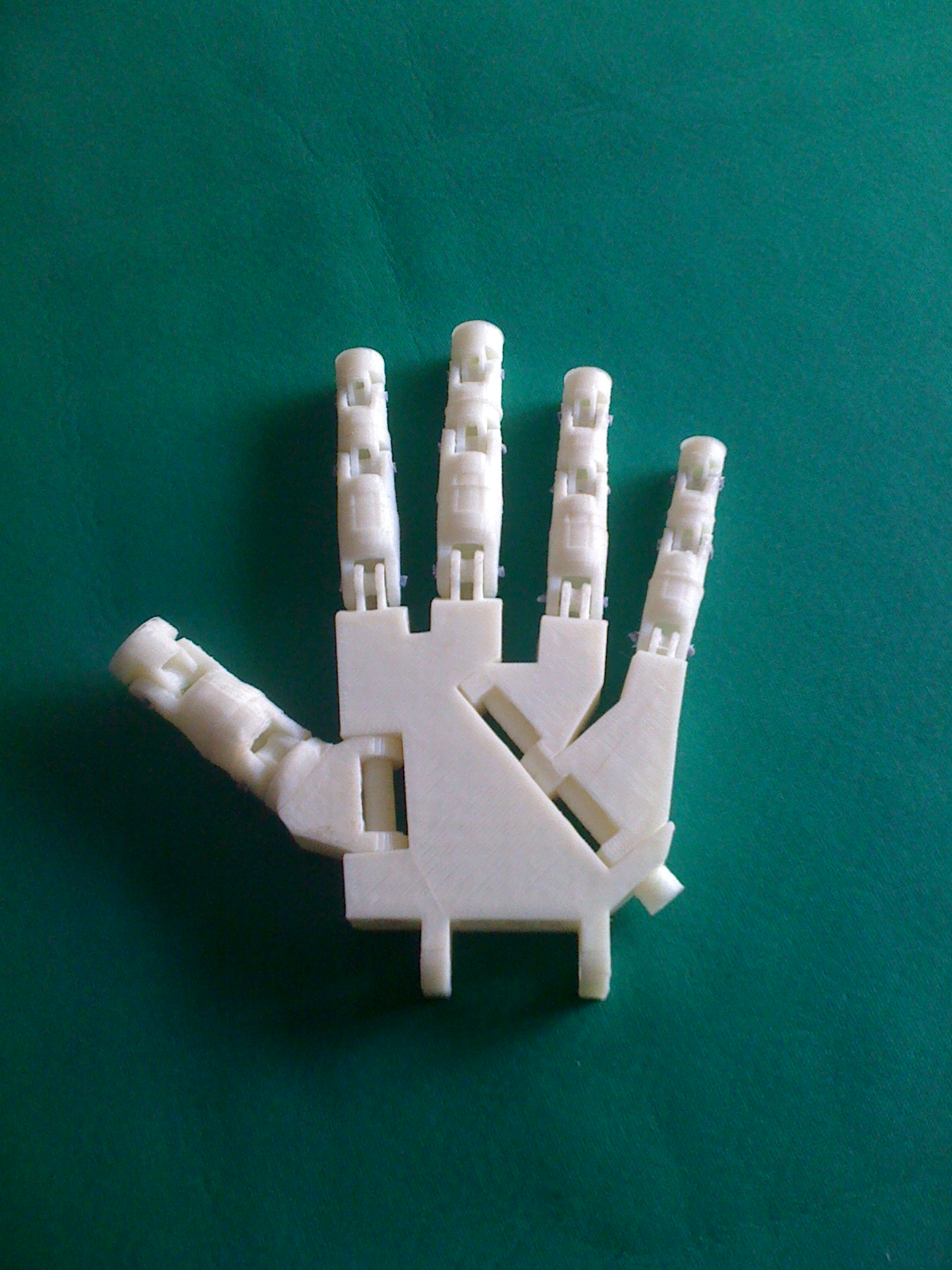

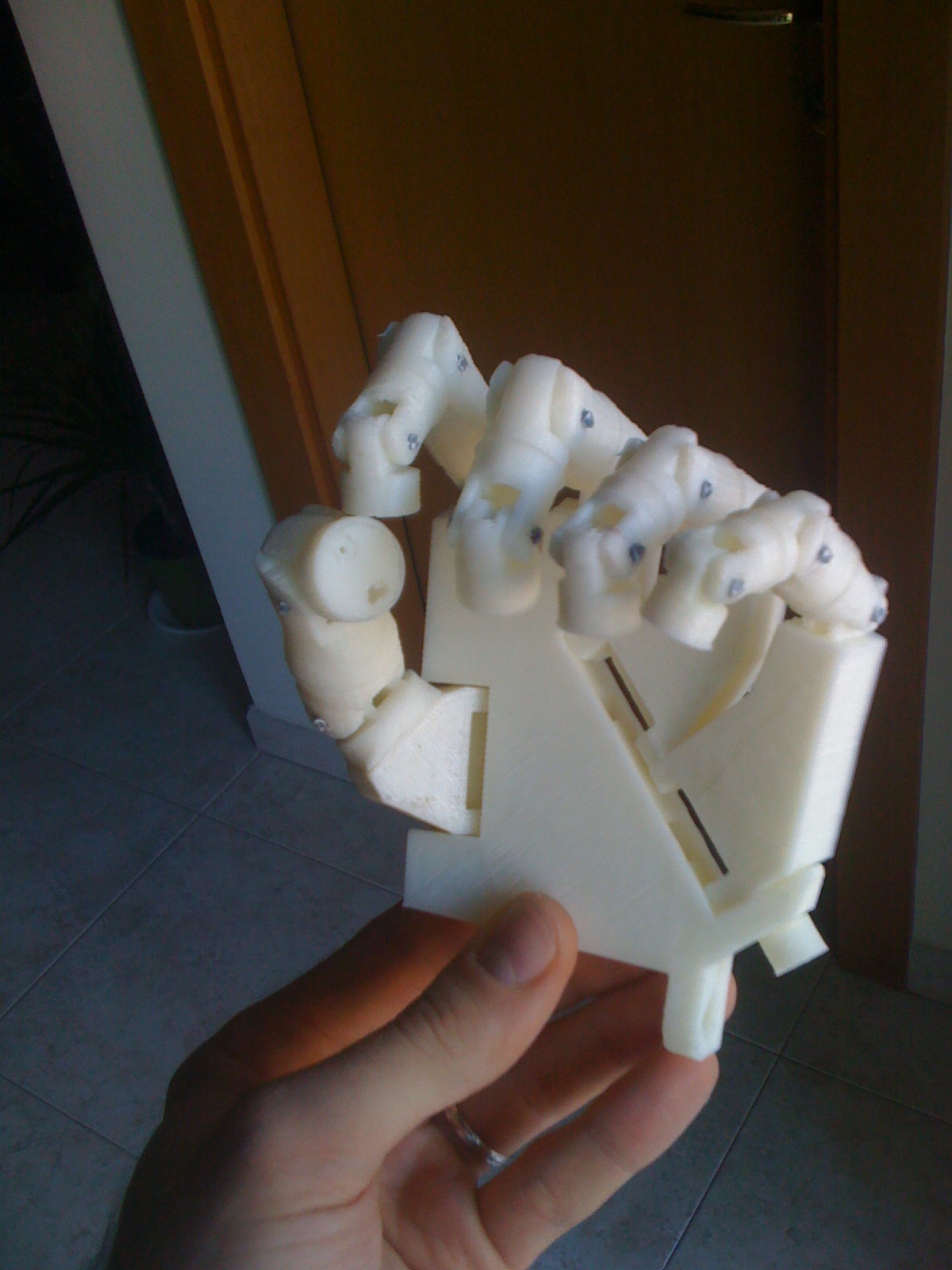

I stopped with inmoov printing because of MakerFaireRome... Now that i got white ABS , I started printing the hand...

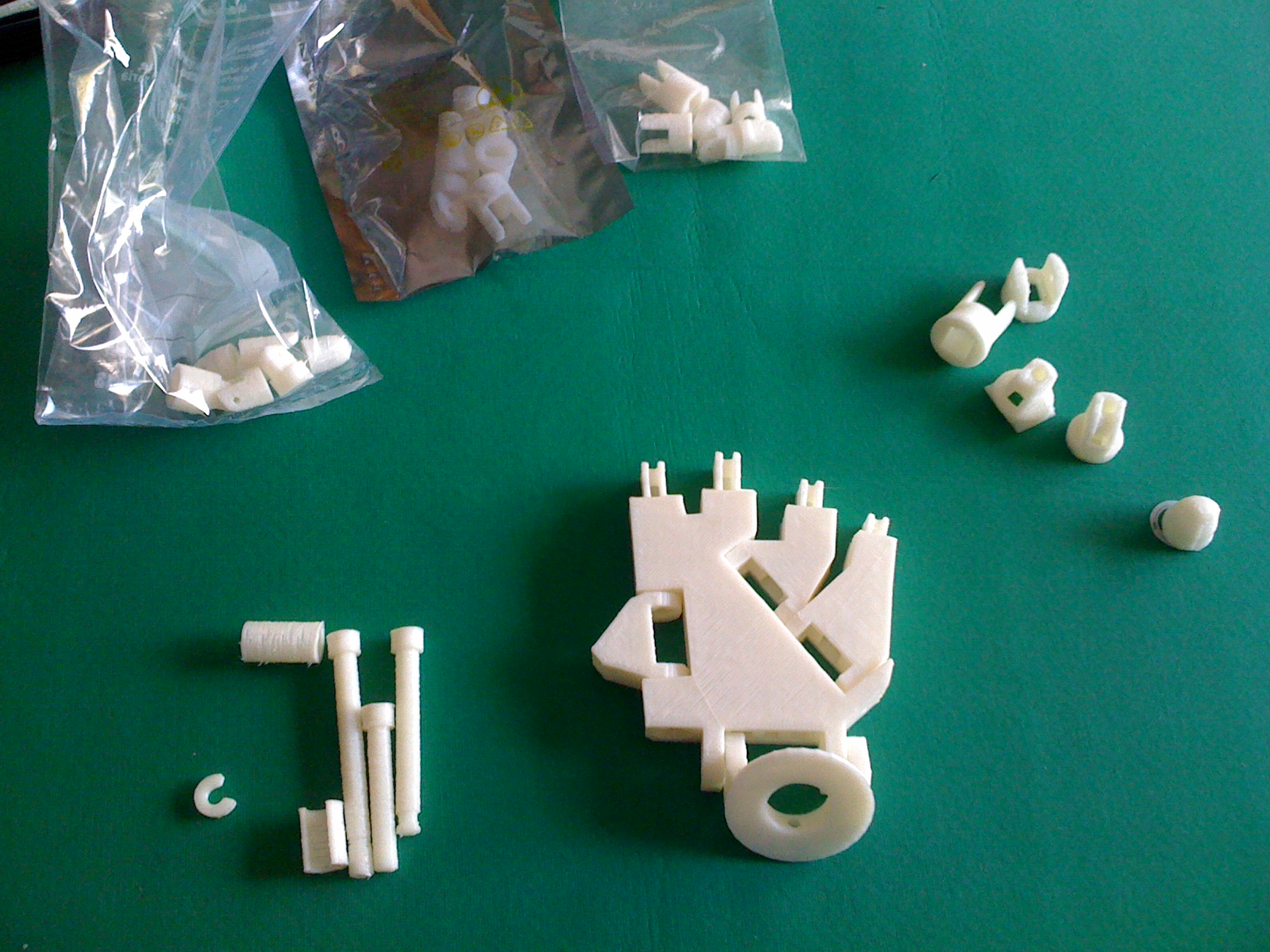

Fingers are divided, cause i don't want to mix them up...

Now i'm printing wrist!


UPDATE 09.06.2013


UPDATE 08.29.2013

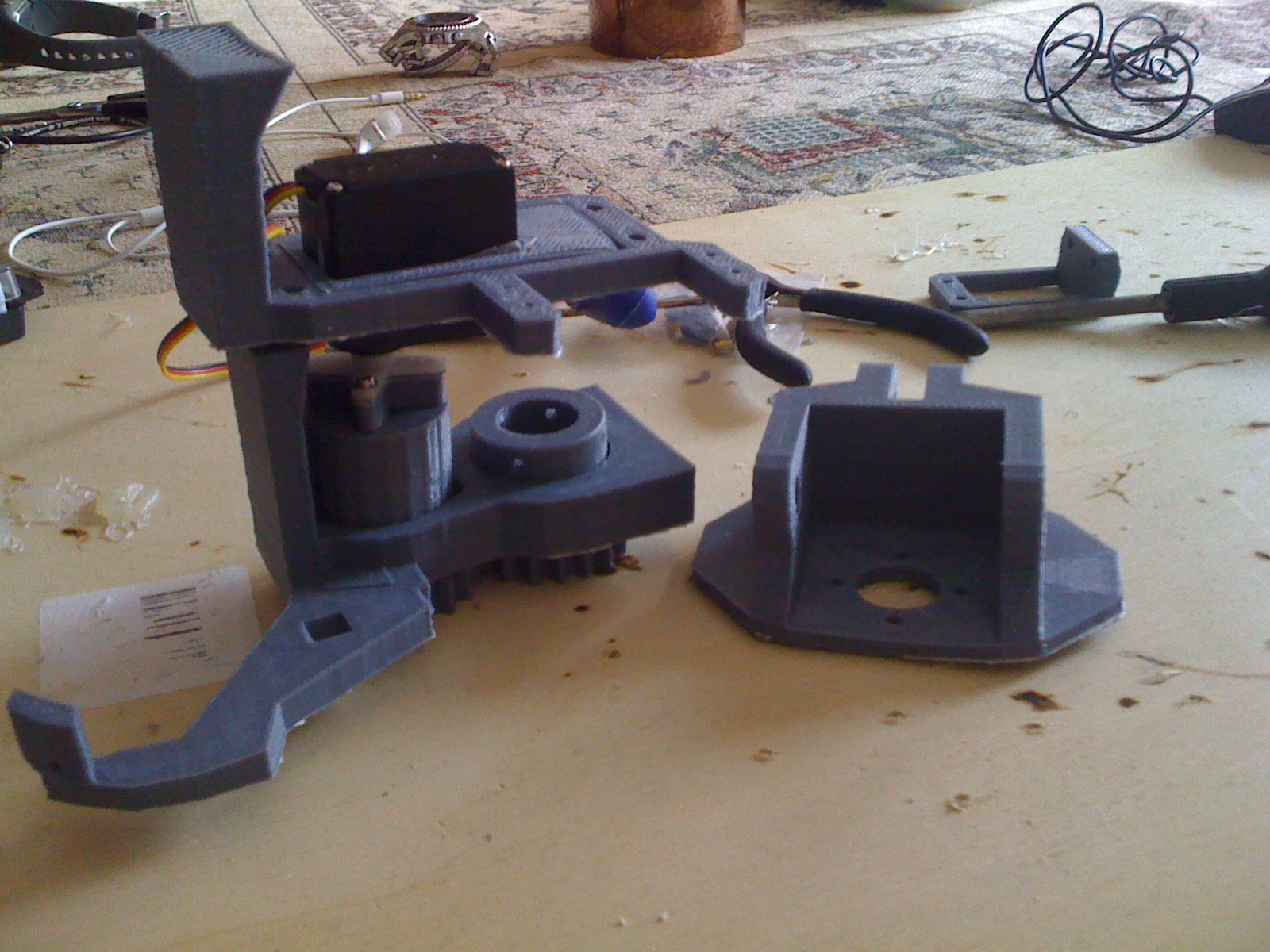

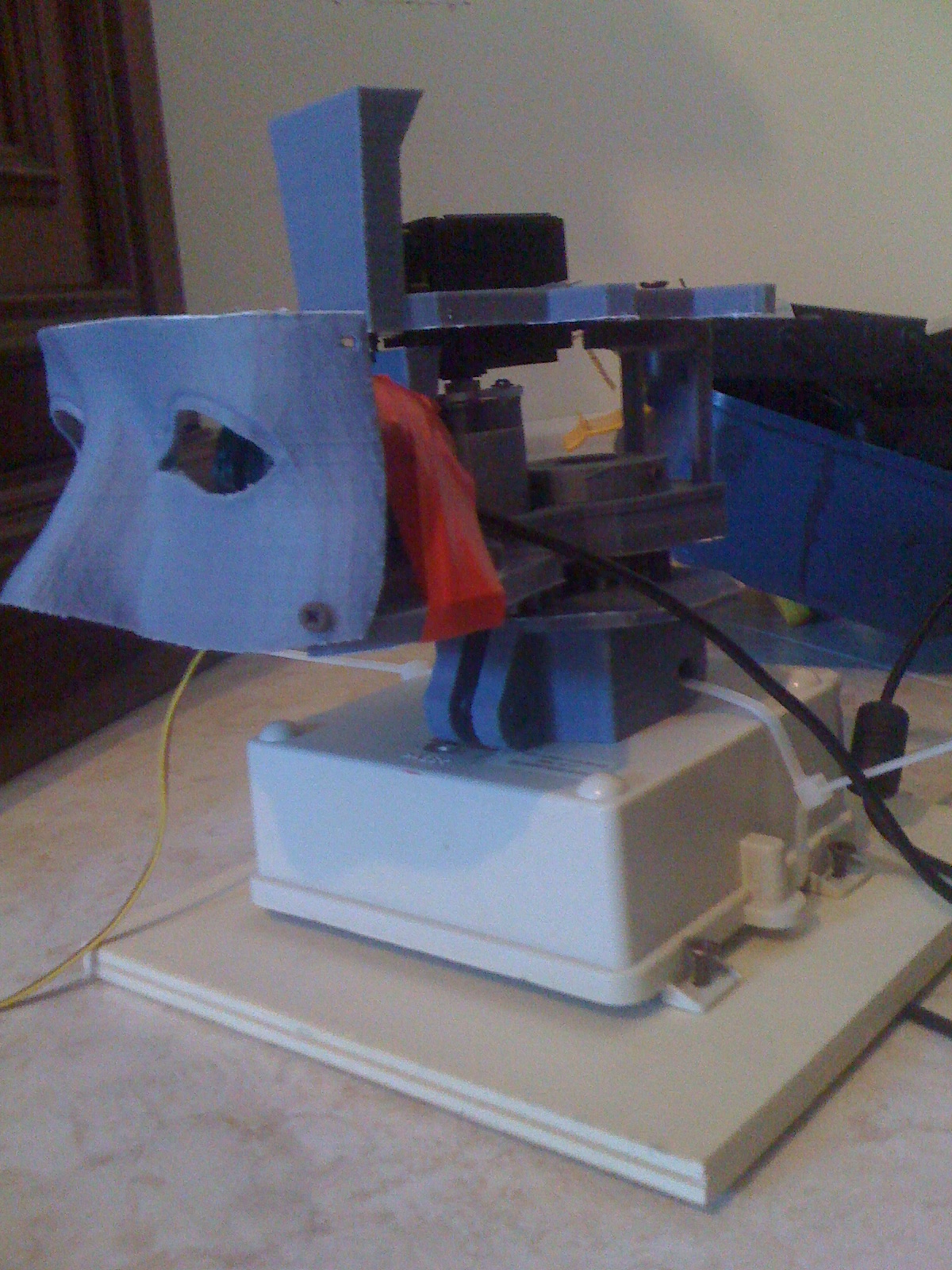

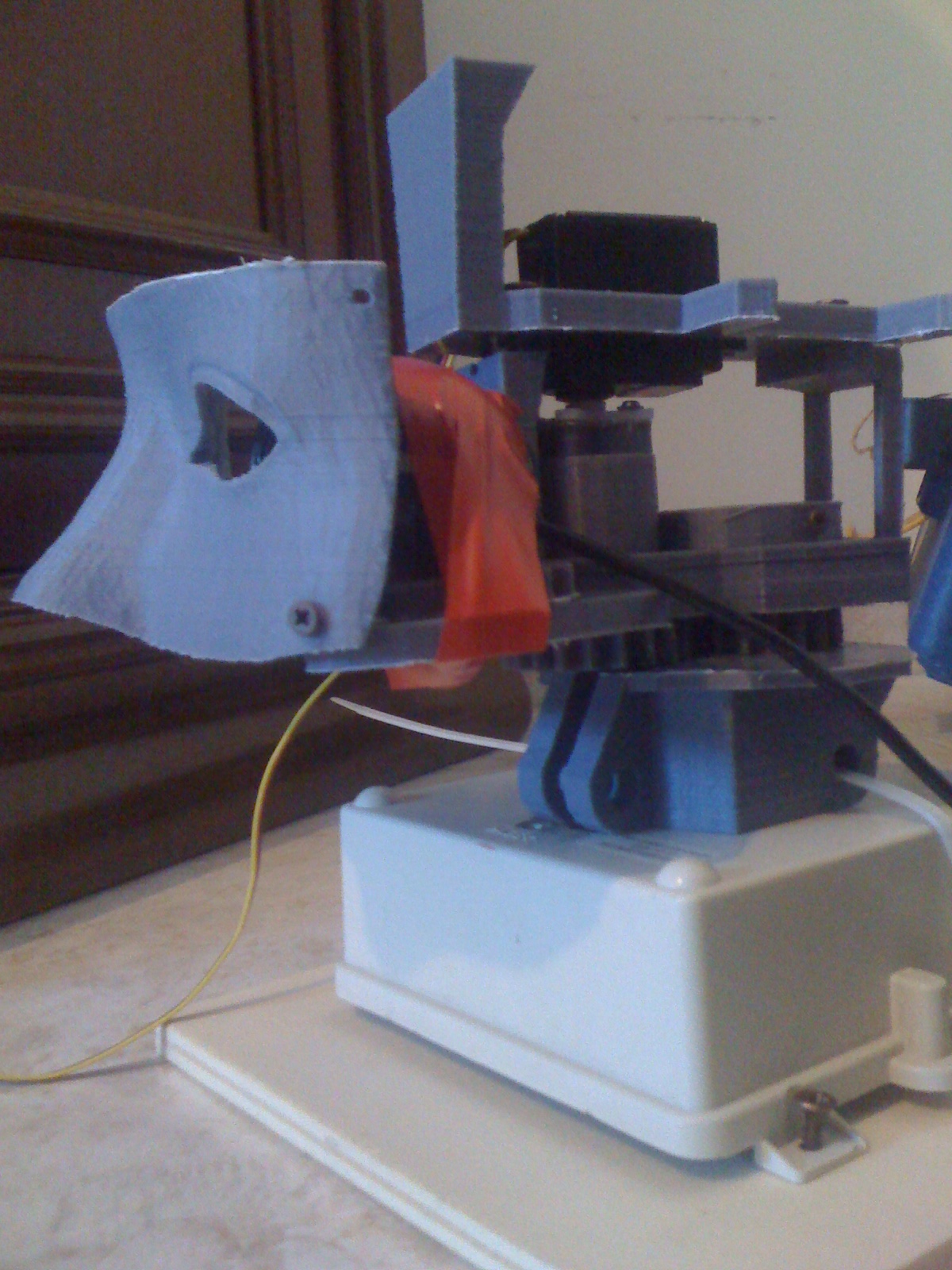

Assembling the head :D


UPDATE 08.23.2013

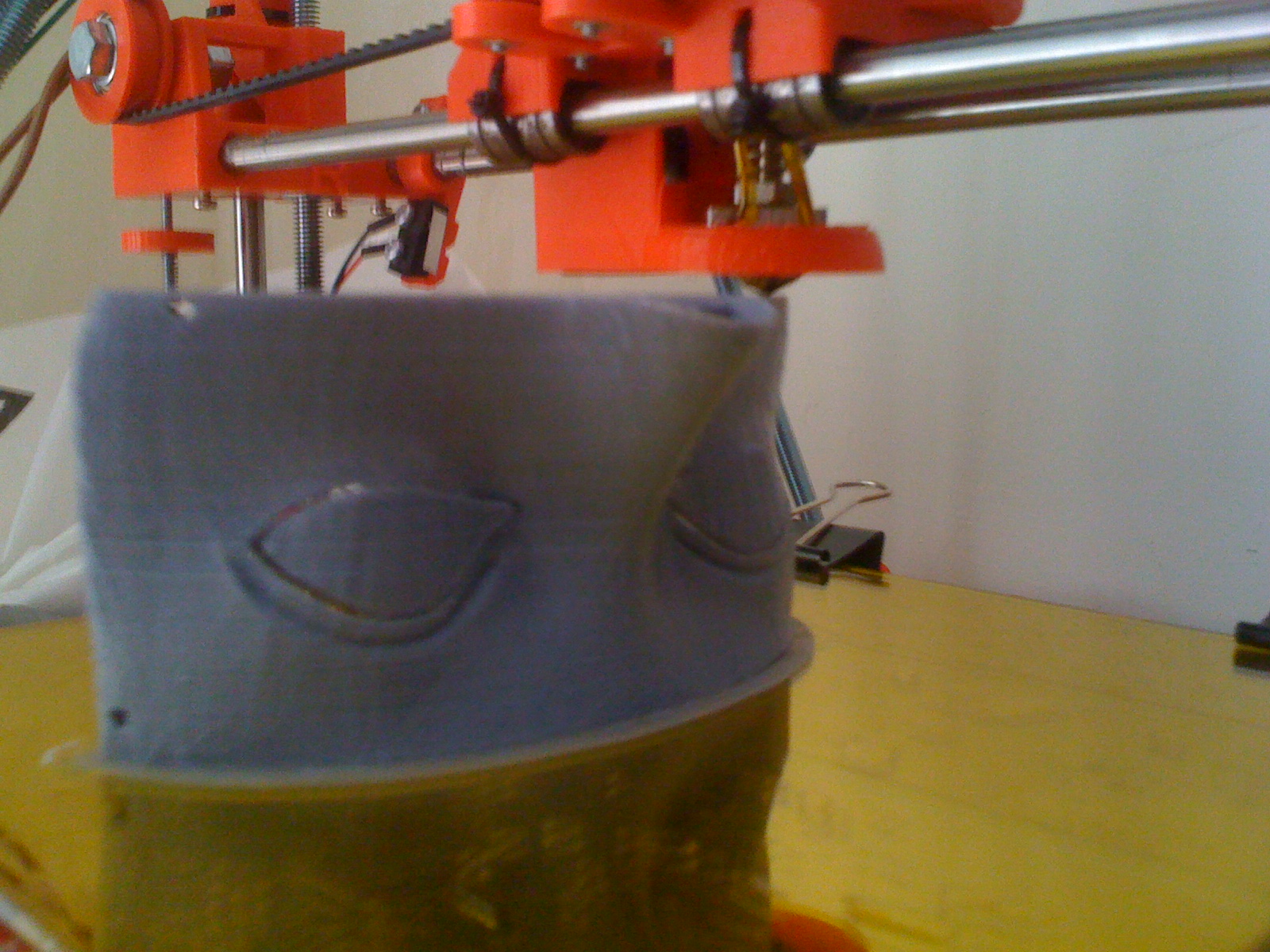

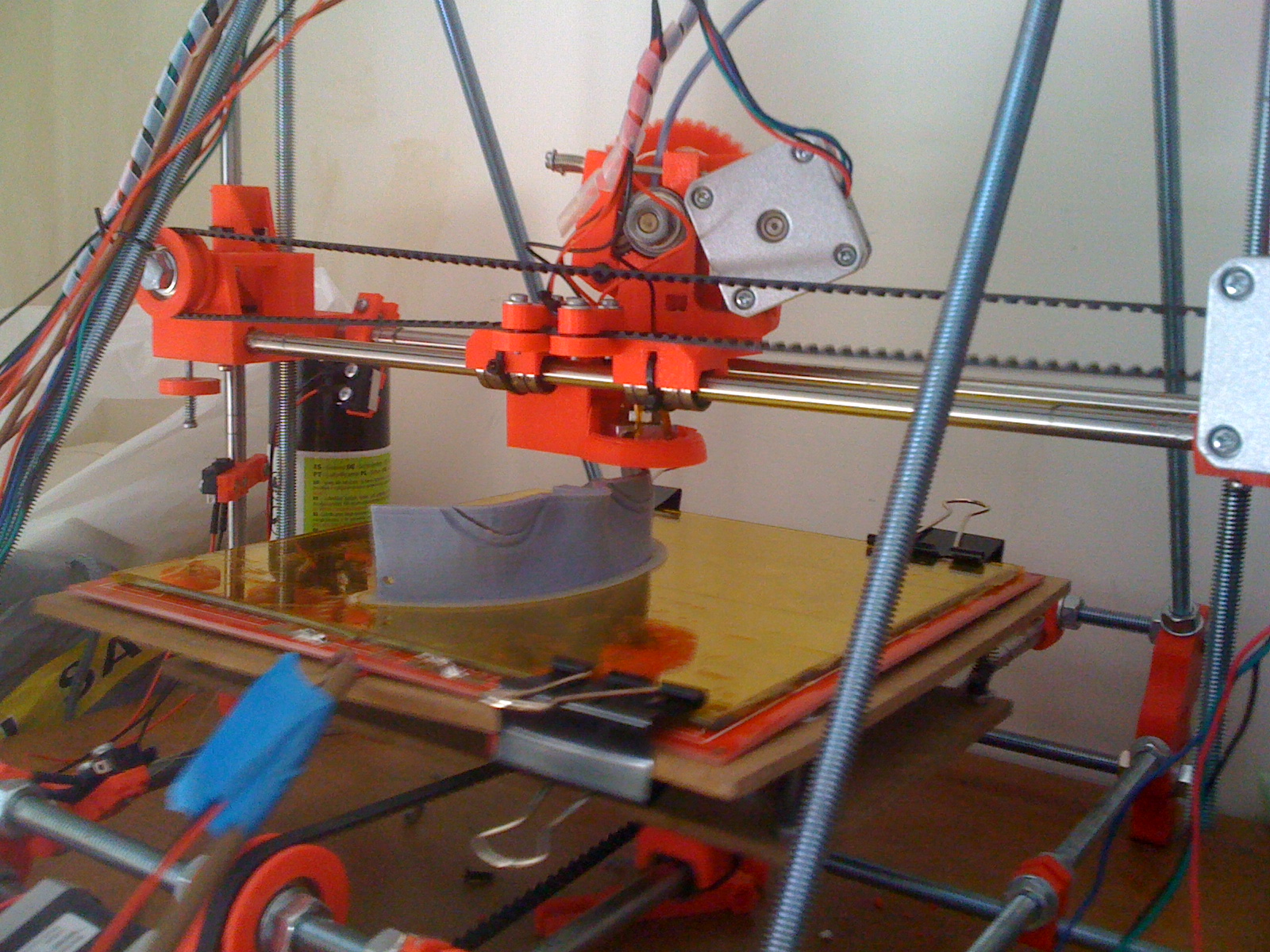

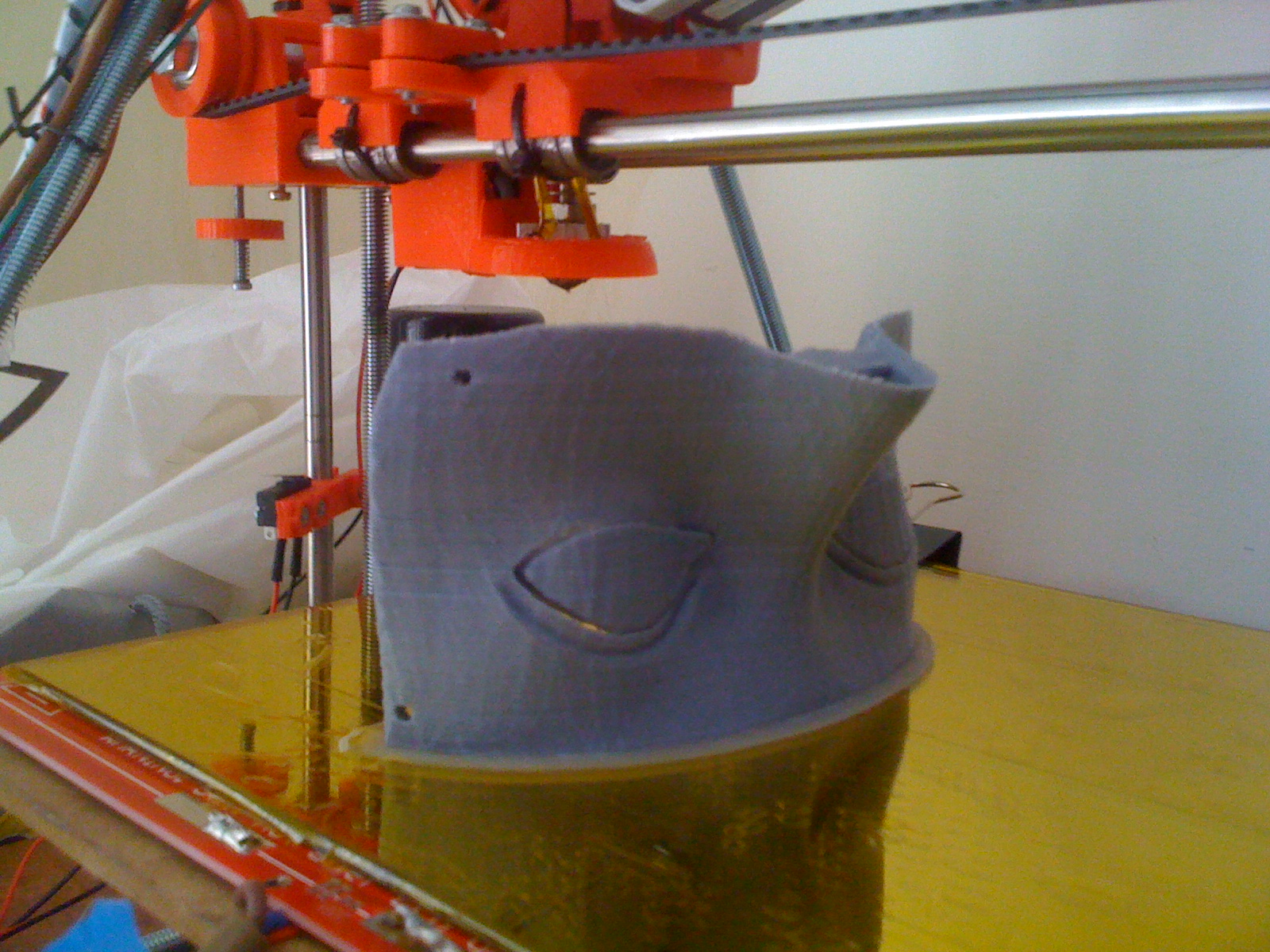

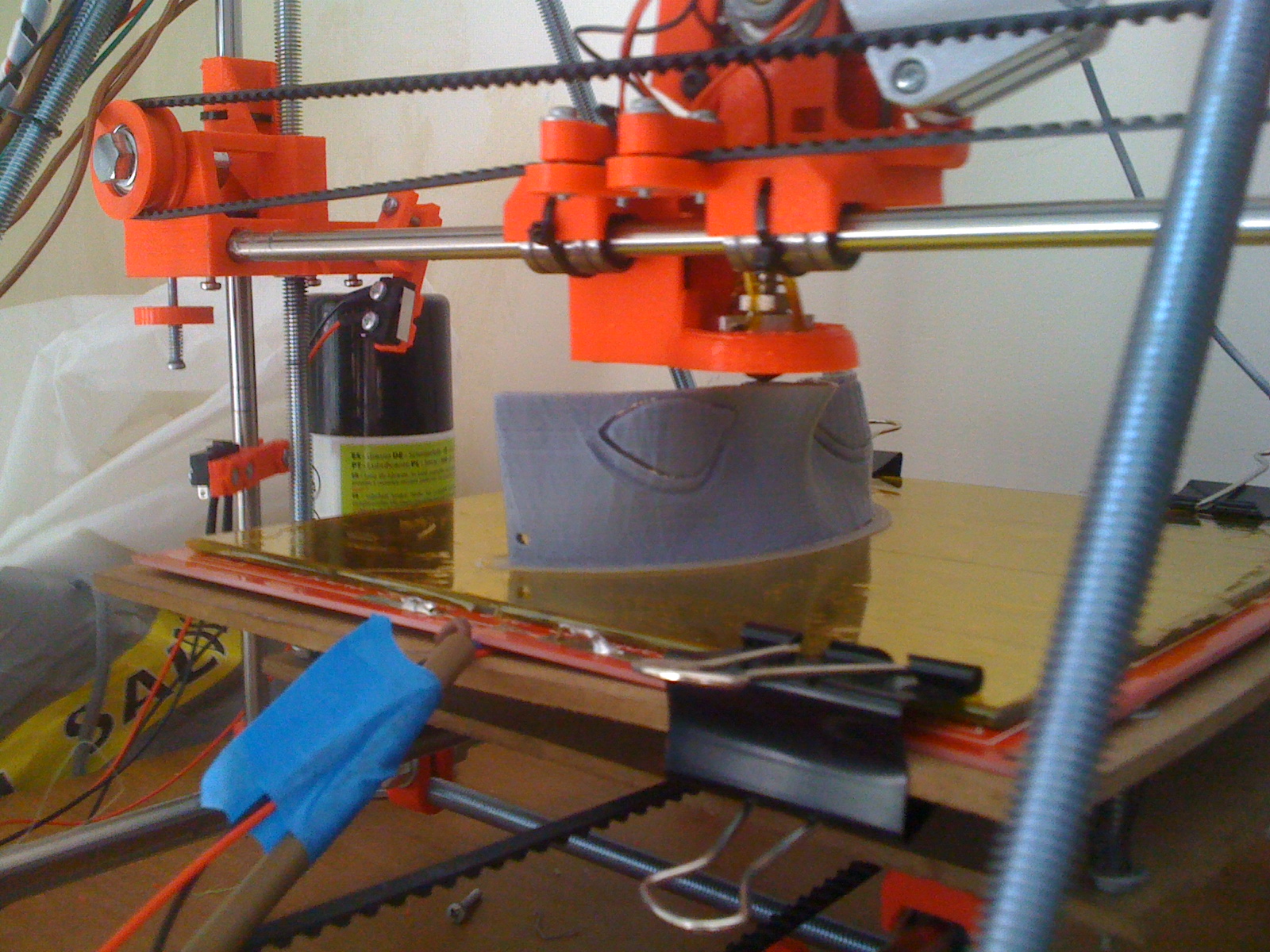

InMoov face growing :

UPDATE 08.21.2013

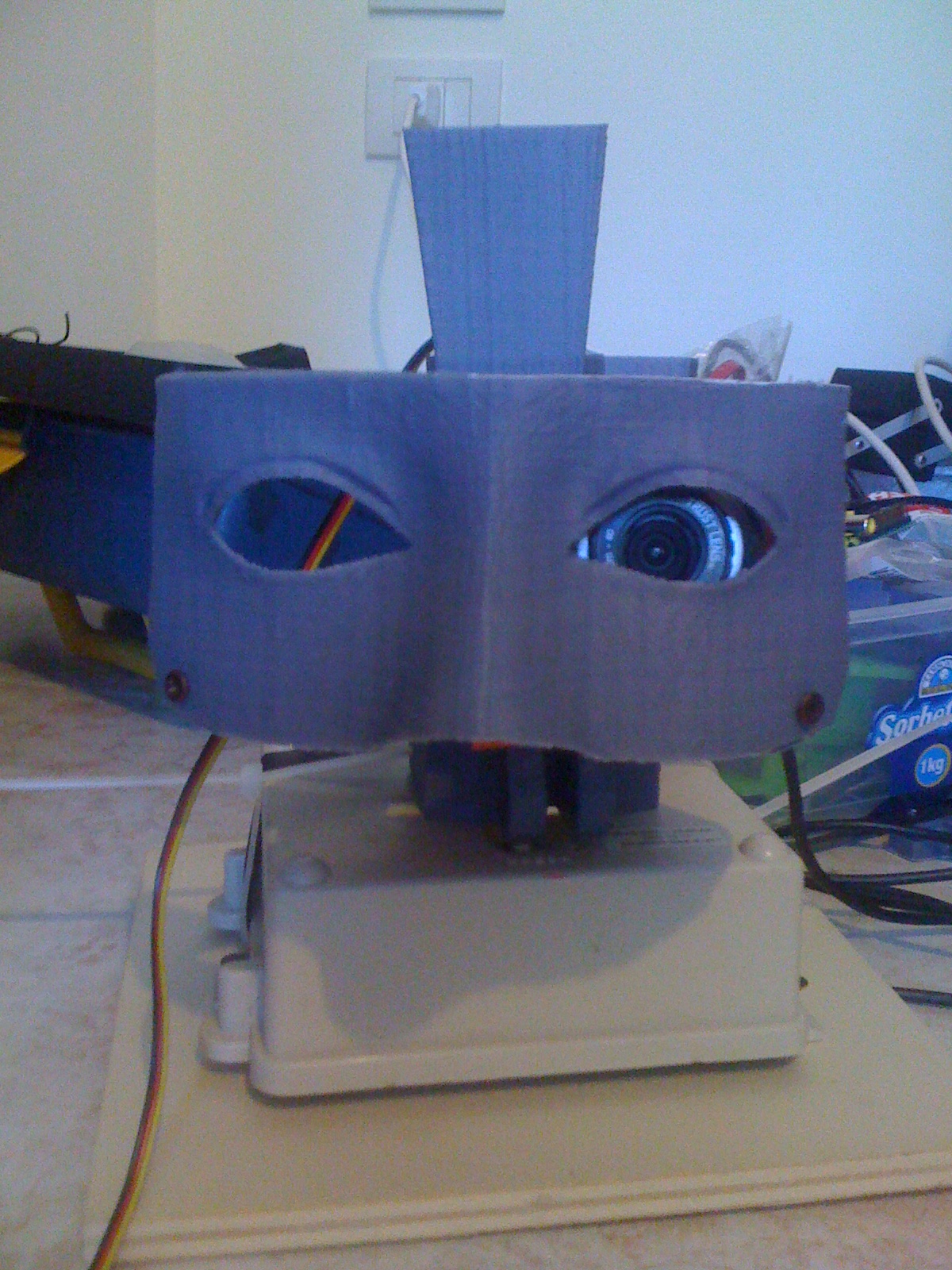

Eye mechanism begin :


UPDATE 08.20.2013

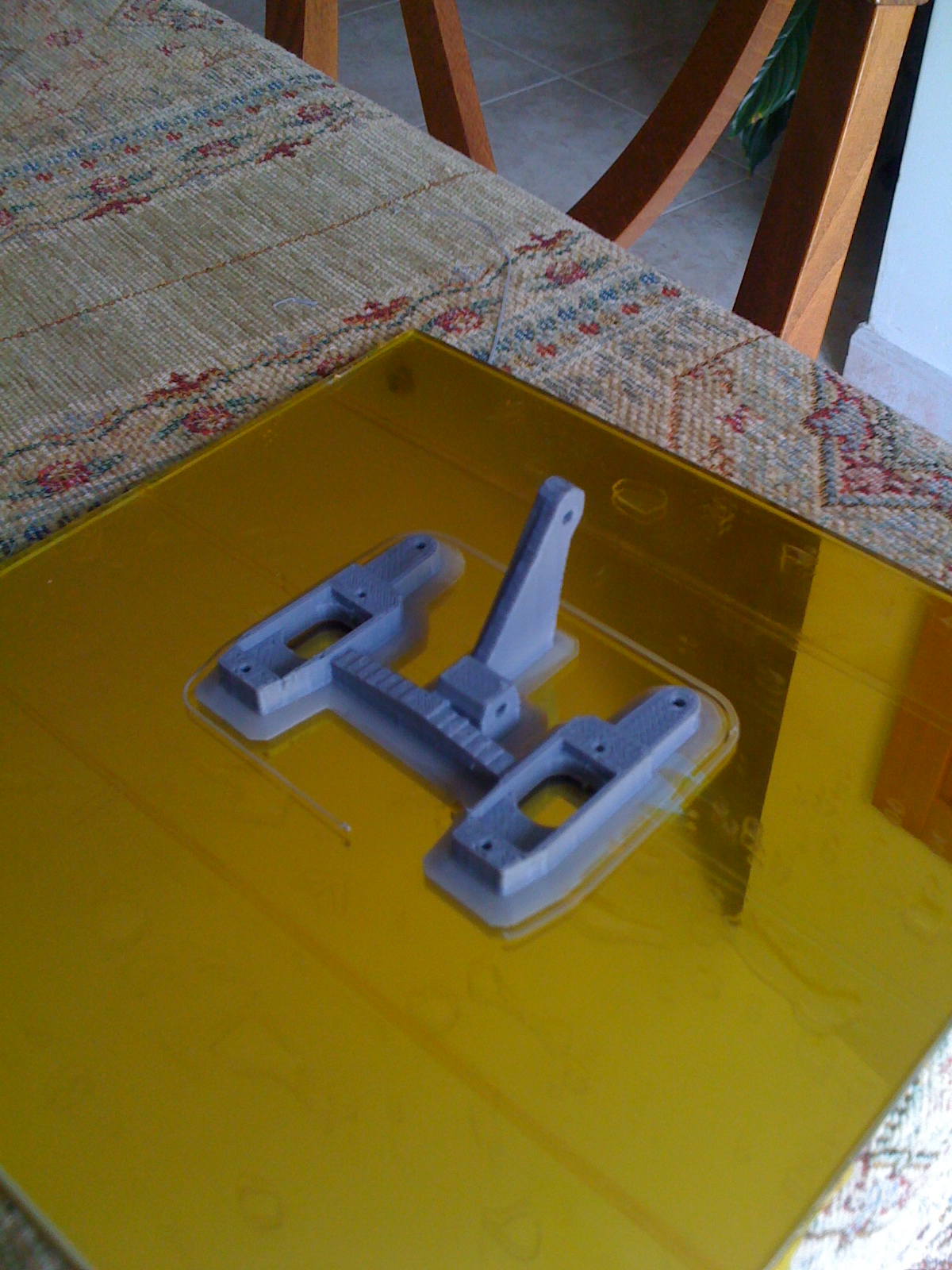

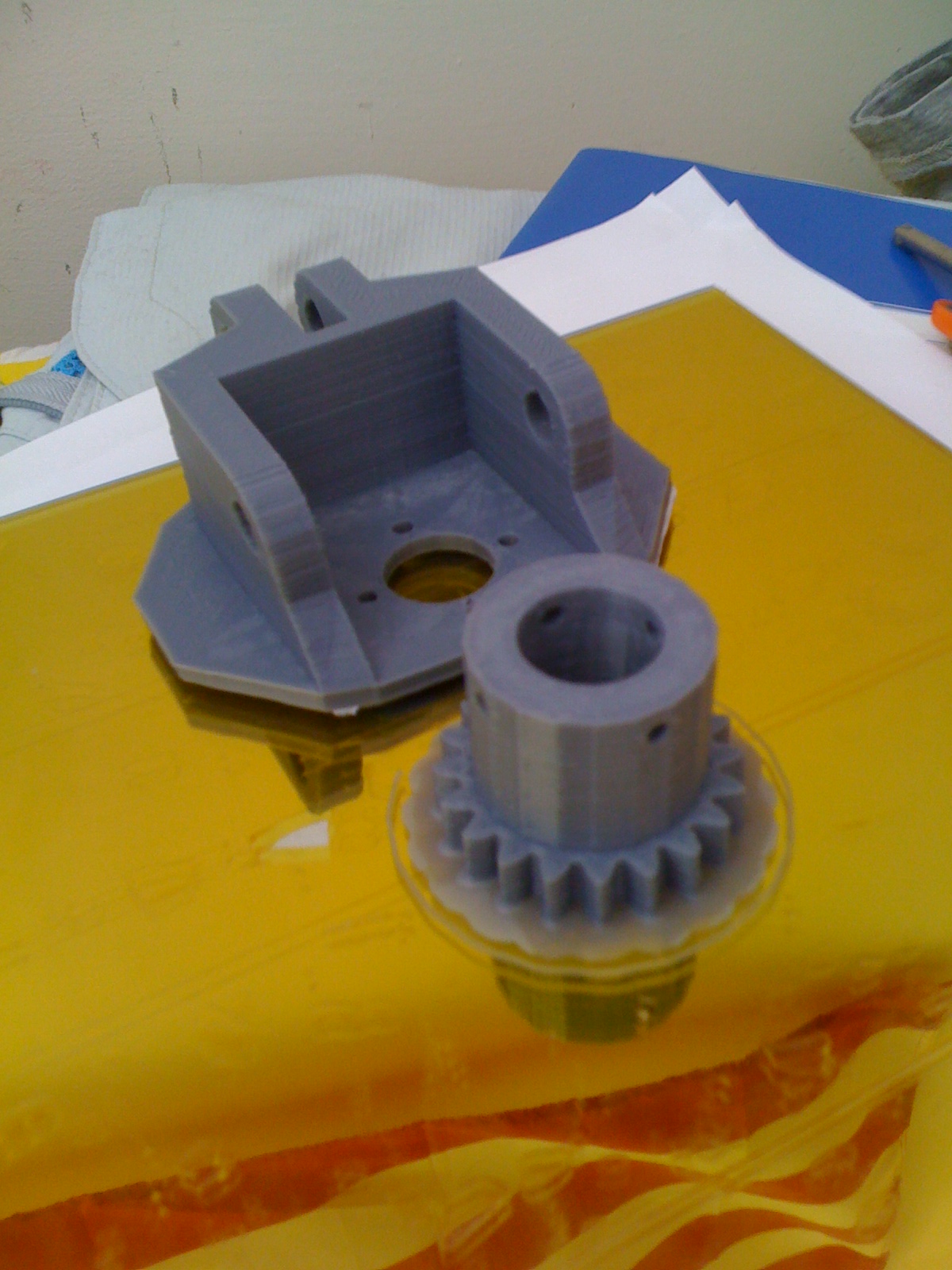

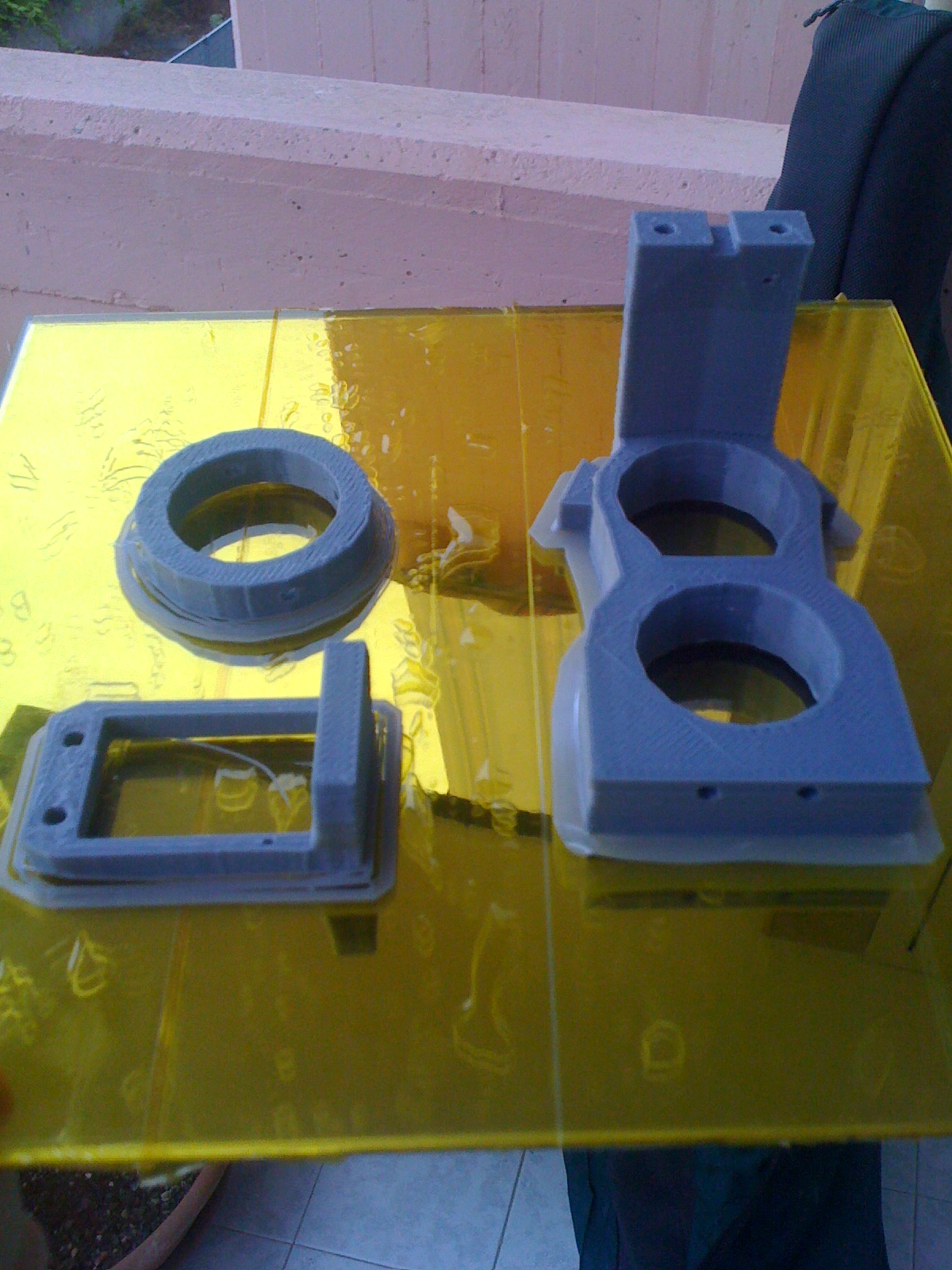

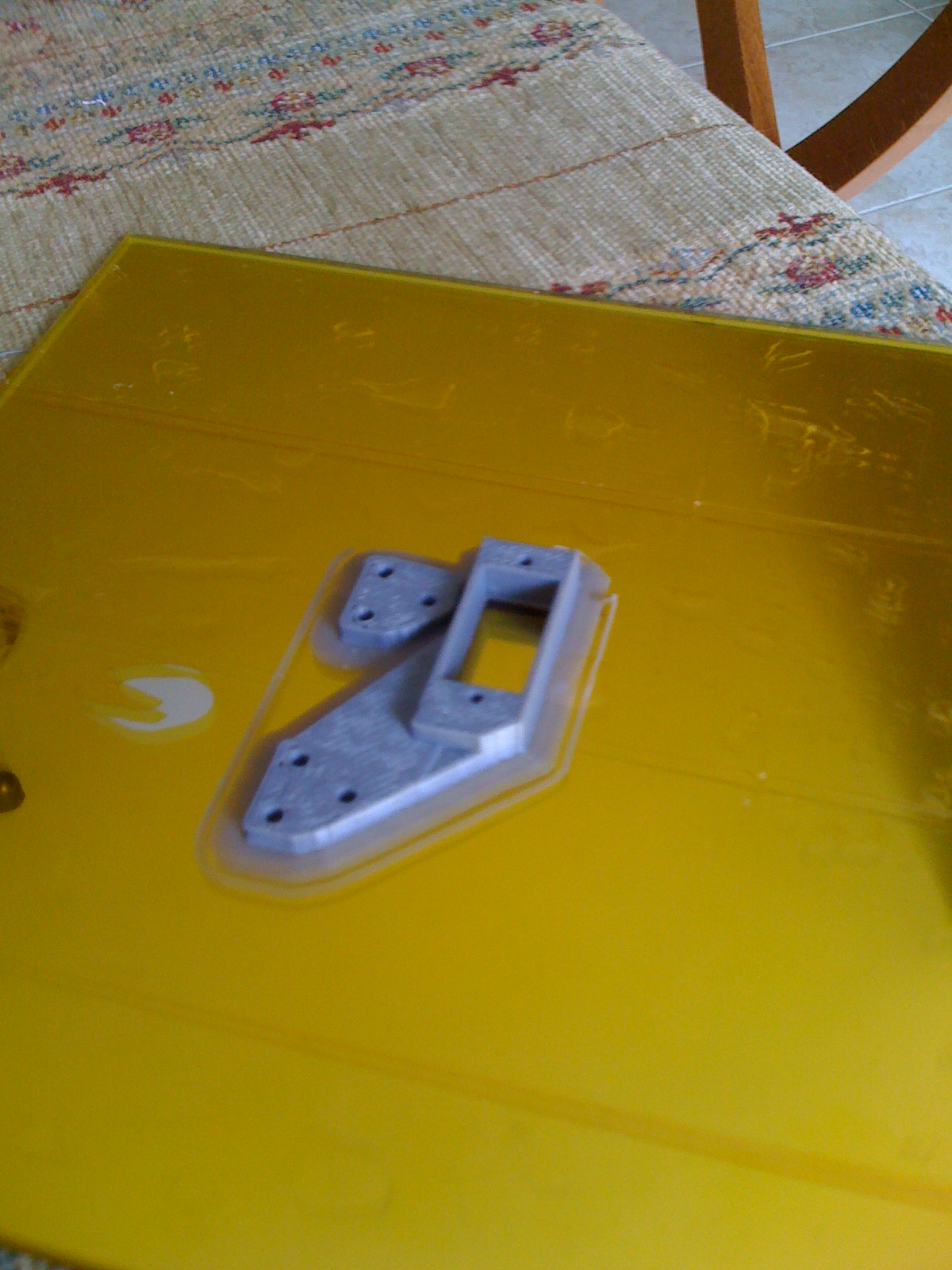

TemporaryV1, GearHolderV1 and ringV1:

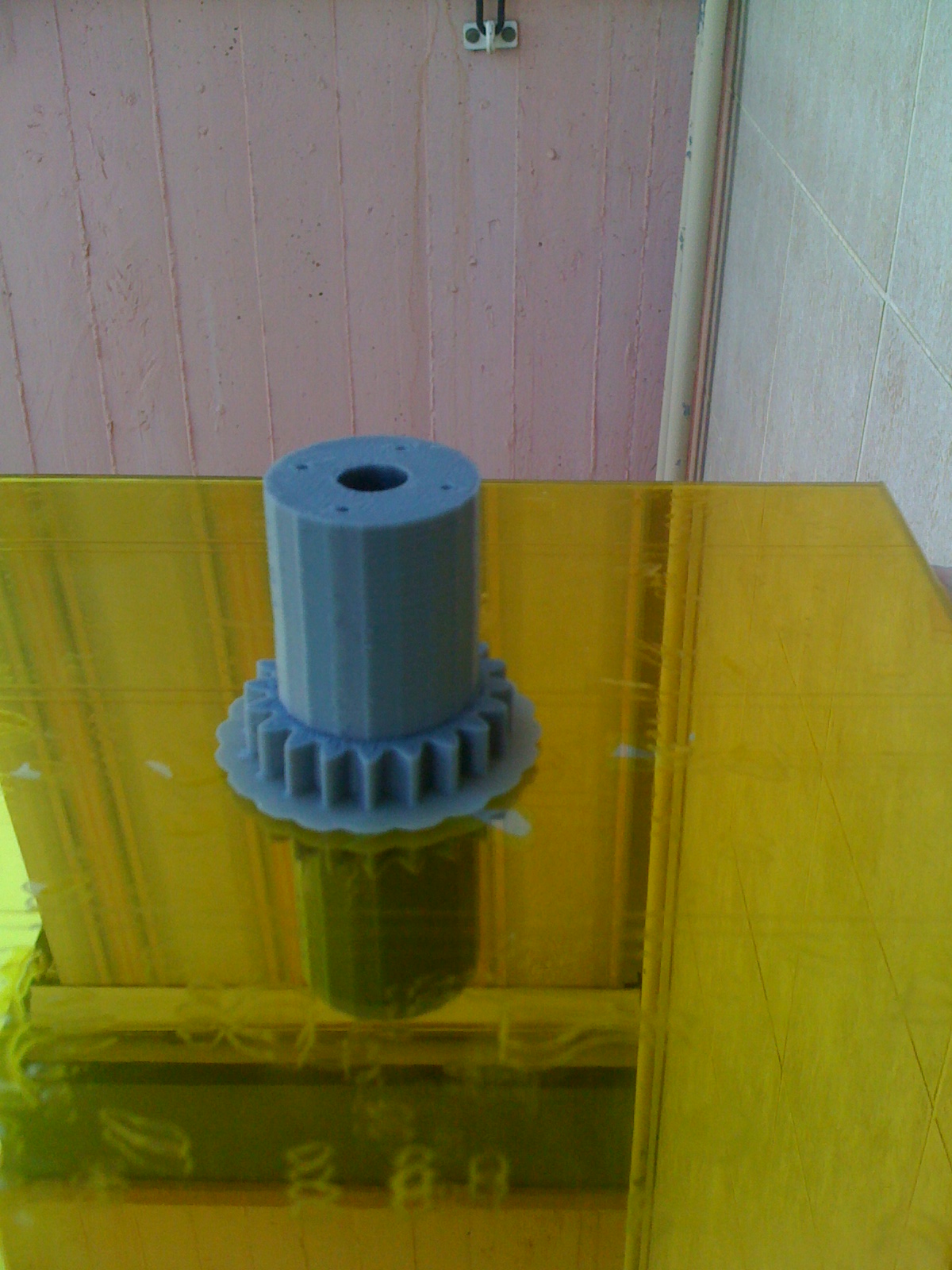

ServoGear :


Let's start building InMoov :D

NeckHingeV1 and MainGearV1

GroG

10 years 7 months ago

nice looking gears Alessandruino !  - MakerFaire here you come ! :D

kmcgerald

10 years 7 months ago

Your prints look MUCH better than mine. I'm especially impressed by the top surfaces which look very well filled in.  I'm still struggling with getting my printer to create well filled top surfaces.



What software are you using for slicing and printing? What size nozzle are you using?

Alessandruino

10 years 7 months ago

In reply to by kmcgerald

Thanks kmc :D i'm using slic3r for slicing and pronterface for printing...i'm using a 0.5 nozzle... i have a good x carriage, with an embed slot for the fan, which divide air flow into 2 parts : 1 part goes to the cold part of the hot end in order to cool it down, and the second part goes on the top of the printed object...maybe this is the secret for a well filled top :D



bstott

10 years 7 months ago

Say Allessandruino, Nice prints but ---- dump the raft. IF the parts won't stick and they are ABS you can get a paper towel slightly damp with acetone and wipe the bed. IF you need more help get an old piece of ABS and rub your acetone moistened towel against it to pickup some plastic and then wipe your build platform. If you have leveled your bed you shouldn't need a raft except for very small parts or parts that have a very small foot print on the build platform. Tall skinny parts maybe also.

Now, how to get GroG to finish his machine OR buy a Makerbot or Makergear.

hairygael

10 years 6 months ago

Your printer does a very cool job. The quality of the prints is great!

Good job at tuning up, Alessandro.

Grog, doesn't it makes you want to finish yours?

chuckfletcher

10 years 6 months ago

I tried buying some eyes and drilling them but they turned to goo under the dremel. I ended up just using a ping pong ball and a hole punch for the eye hole cause it looked much neater than a freehand cut. But it is a little small for the camera, it gets a little occulded by the hole narrowing the field of vision a little

borsaci06

10 years 4 months ago

wow Alessandro,

those are great looking prints and the reprap printer looks fantastic... so you began your InMoov... I am glad for you... Congrats...



hairygael

10 years 4 months ago

The Torso!!! Ah this is taking a good turn!

Nice prints Alessandruino. Lets keep the printer printing and by Christmas, you have it all!

hairygael

10 years 2 months ago

Print, print, print!!!

It's getting good Alessandro! almost all shoulder parts.

In order to mount the proto-arm on the right you're going to have to print those missing torso/shoulder parts. :)

You're racing ahead.  I printed my last torso plate last night. I need to install two pieces and still print the servo holders and neck piston before moving on to the shoulder joint. Your InMoov is much more functional than mine is so far.

I can't wait to see what you come up with in the software once you get the full arm installed.
