My DIY Oculus Rift

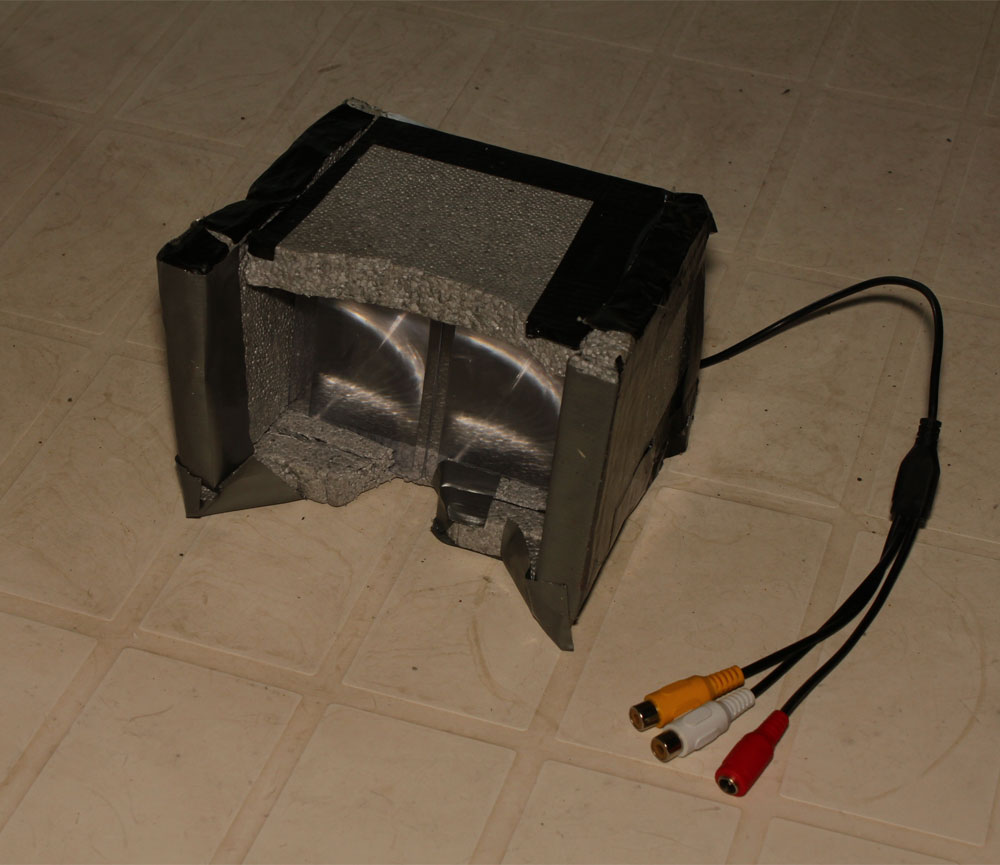

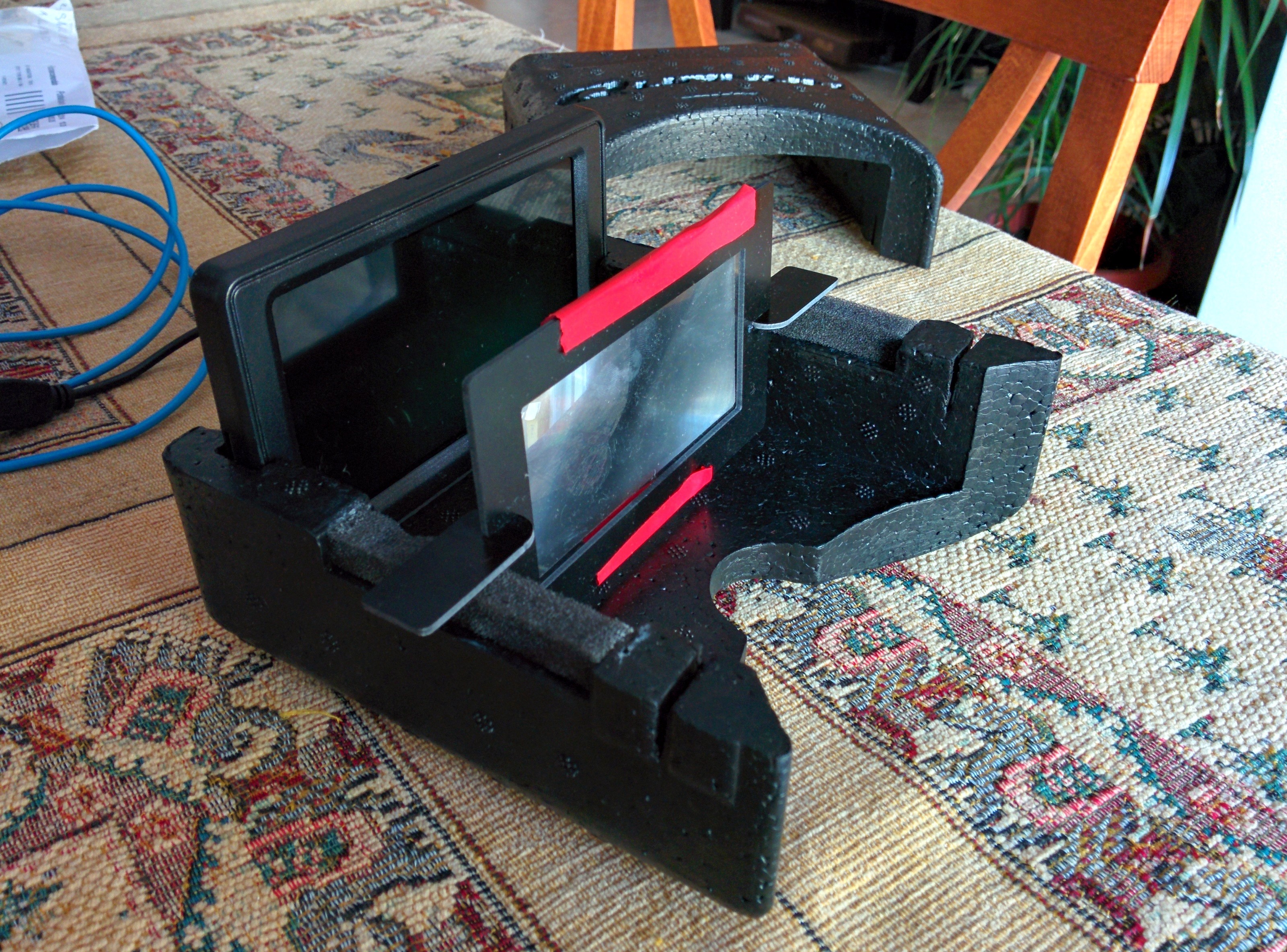

This is a 4.2" LCD screen with Composite Video Out - > 12 V

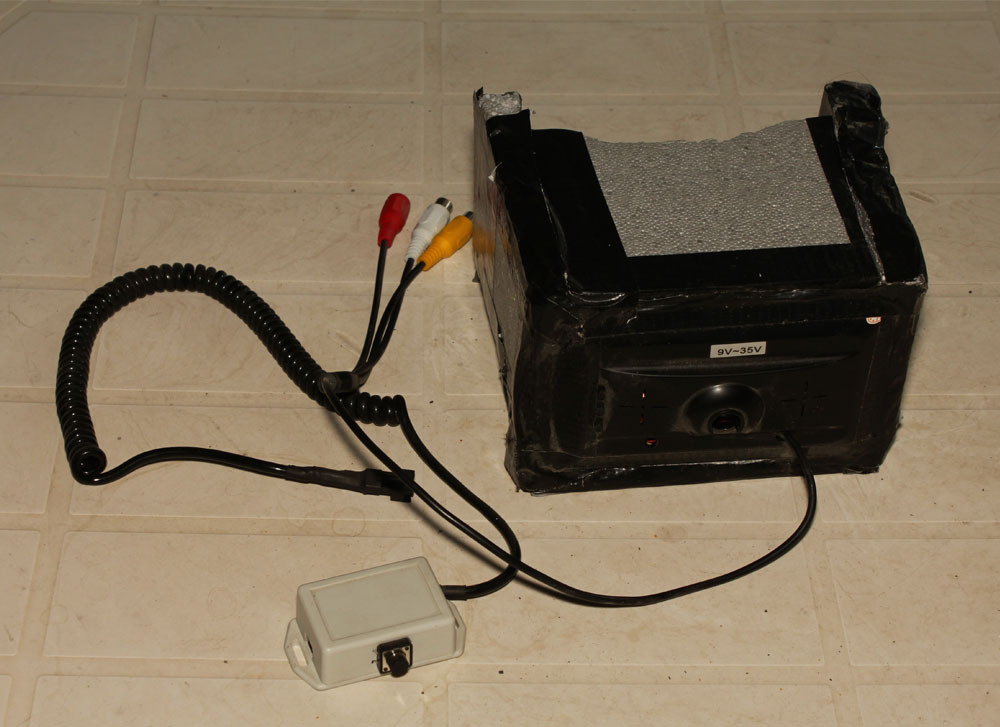

Hooked to the screen there is a Sport Camera (the same i use for my quadcopter)

The goal is to hook up the Mpu6050 to have ACC/GYRO feedback for MRL so that i can move InMoov Head like Kwatters did with his Oculus Rift.

So far i succeed sending a single acceleration value back from the MPU.

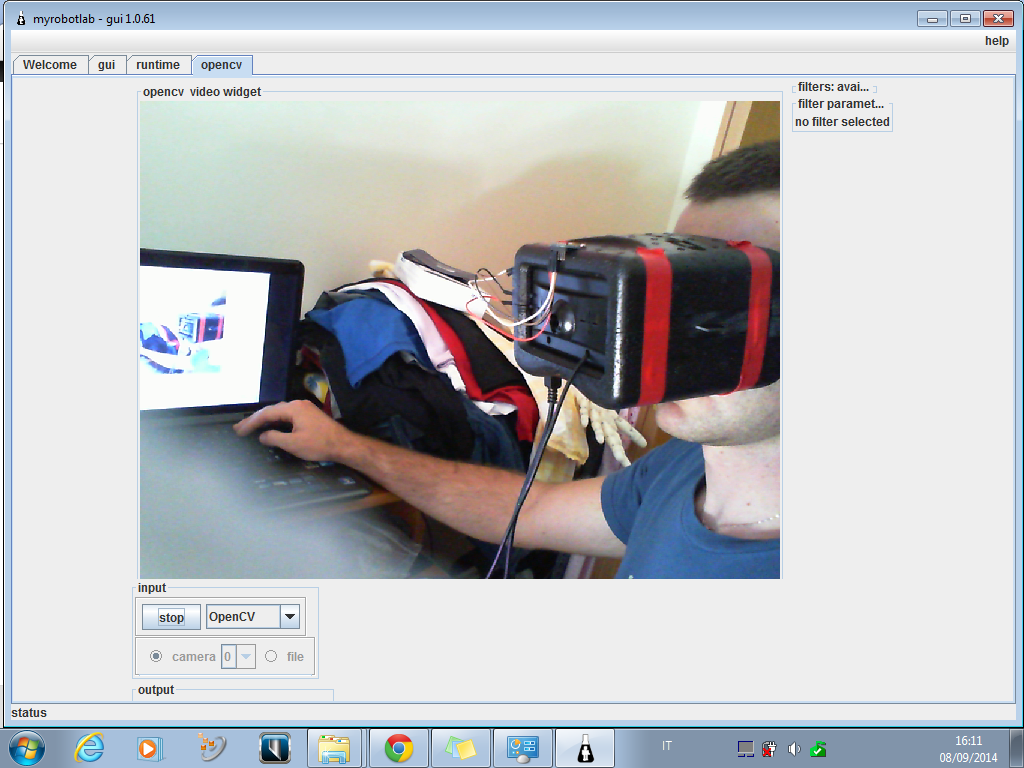

MPU6050 - >Arduino -> acclerationx value -> serial -> Serial Service -> MyRobotLab

Bill of materials :

Here is some pictures :

[[Serial.mpu6050.py]]


Comment viewing options

Select your preferred way to display the comments and click "Save settings" to activate your changes.
GroG's picture

Ahahaha Awesome !

Neo your hooked into the matrix !

How can I help !

You Rock ! :D

wvantoorn's picture

Is that the hobbyking fpv ?

Is that the hobbyking fpv ?

Alessandruino's picture

Yep wv ! i added the link to

Yep wv ! i added the link to the post

borsaci06's picture

Great...

Aless,

Your DIY fpv system looks great... I made a similar system totally DIY... I use a DIY headtracker on it... It uses GY-85 imu sensor (which has an mpu6050) and arduino Promini USB... I can move x&y pan-tilt servos on the plane with this system and the cam turns to where I look at...

I can send schematics and code if you want...

Alessandruino's picture

Thanks borsaci...schematics

Thanks borsaci...schematics and code would be great !! Thanks

beetlejuice's picture

I've too many things in my "

I've too many things in my " To learn / see / try / make " list !!
Stop to give me new stuff to add to this list lol !!!

Humm , no, continue ; I'm loving it !

ambroise's picture

hello beetlejuice one more

hello beetlejuice

one more thing on our list to do make it

i love it and i would like to do the same



hairygael's picture

Hey, Love this stuff Using a

Hey, Love this stuff
Using a diving mask as base to adapt on the face would certainly be a good option.

ambroise's picture

the king of cardboard one

the king of cardboard
one question for this projet could we use a google cardboard?

https://developers.google.com/cardboard/

Alessandruino's picture

Yep... But then it s hard to

Yep... But then it s hard to send the video to your phone instead of a simply LCD

GroG's picture

Friggin Awesome Ale !!! 2 X 3

Friggin Awesome Ale !!!

2 X 3 Axis Accelerometers ? 1 Arm & 1 Head ?

Did you limit the feedback?

Alessandruino's picture

Yep.... Armband -> GY80

Yep....

Armband -> GY80 sensor 10DOF - > 3axis acc , 3 axys gyro, 3 axis compass, baro , temp

Rift ->GY521 sensor AKA Mpu6050 -> 3axis acc , 3axis gyro



Feedback limited to 1/10 . Data is sent every 10 loops
