L1 trigger design Workio (Hori controller), InMoov Finger sensor possibilities

Workio - First "Live" testing of the top trigger finger mech.

The concept "Hori" uses is so simple and would make a great finger pressure sensor for InMoov.

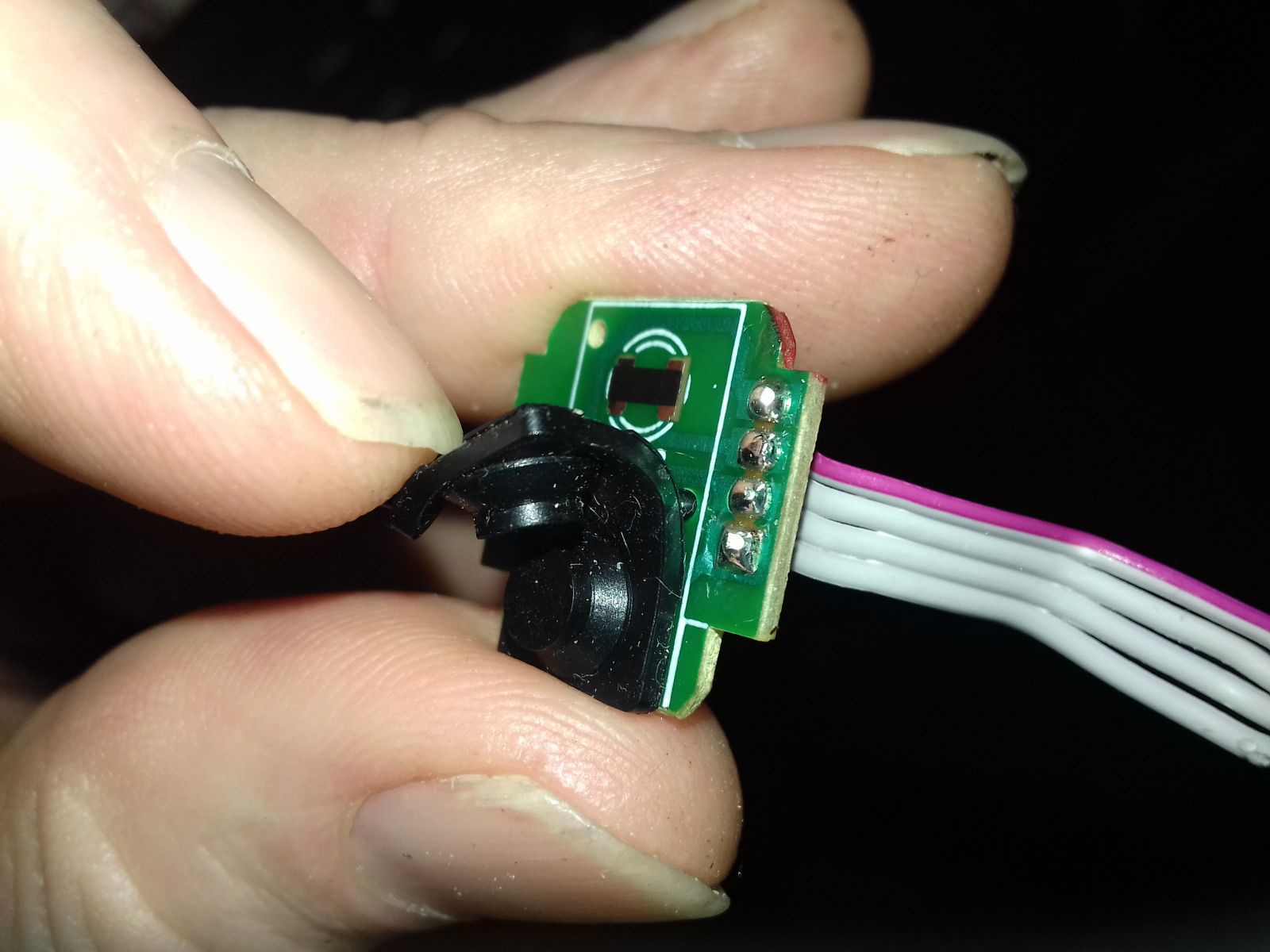

It's basically a bare un-insulated black carbon SMD resistor, a flexible conductive carbon coated dome sits on top of it, when it is pressed against the resistor it progressively shorts out the resistor underneath, giving a change in its resistance, soooo simple and effective.

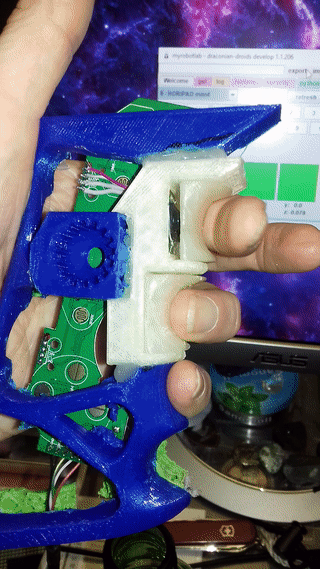

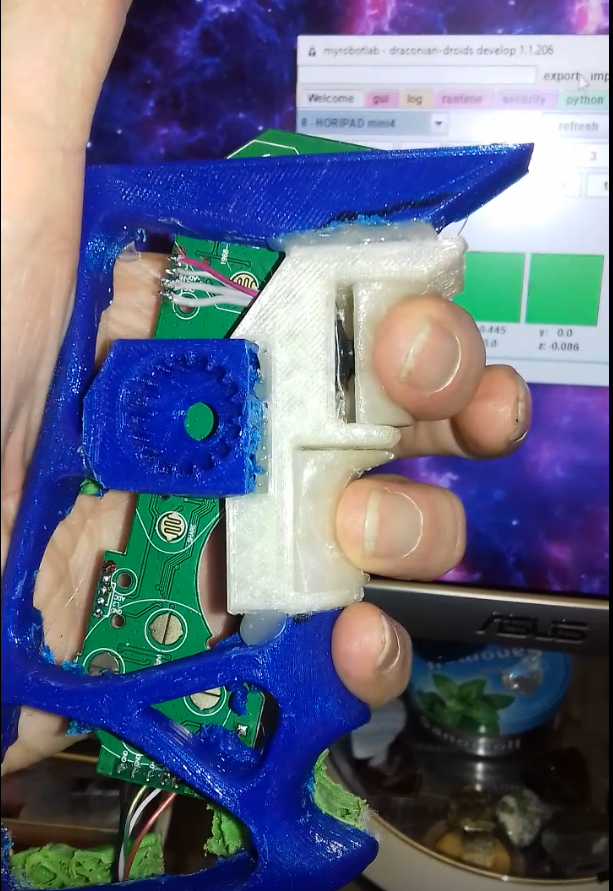

In the GIF above you can see the "ry" channel moving between -1.000 to +1.000.

Digital 7 is activated because of the way I have installed the switch mechanism, it really needs repositioning.

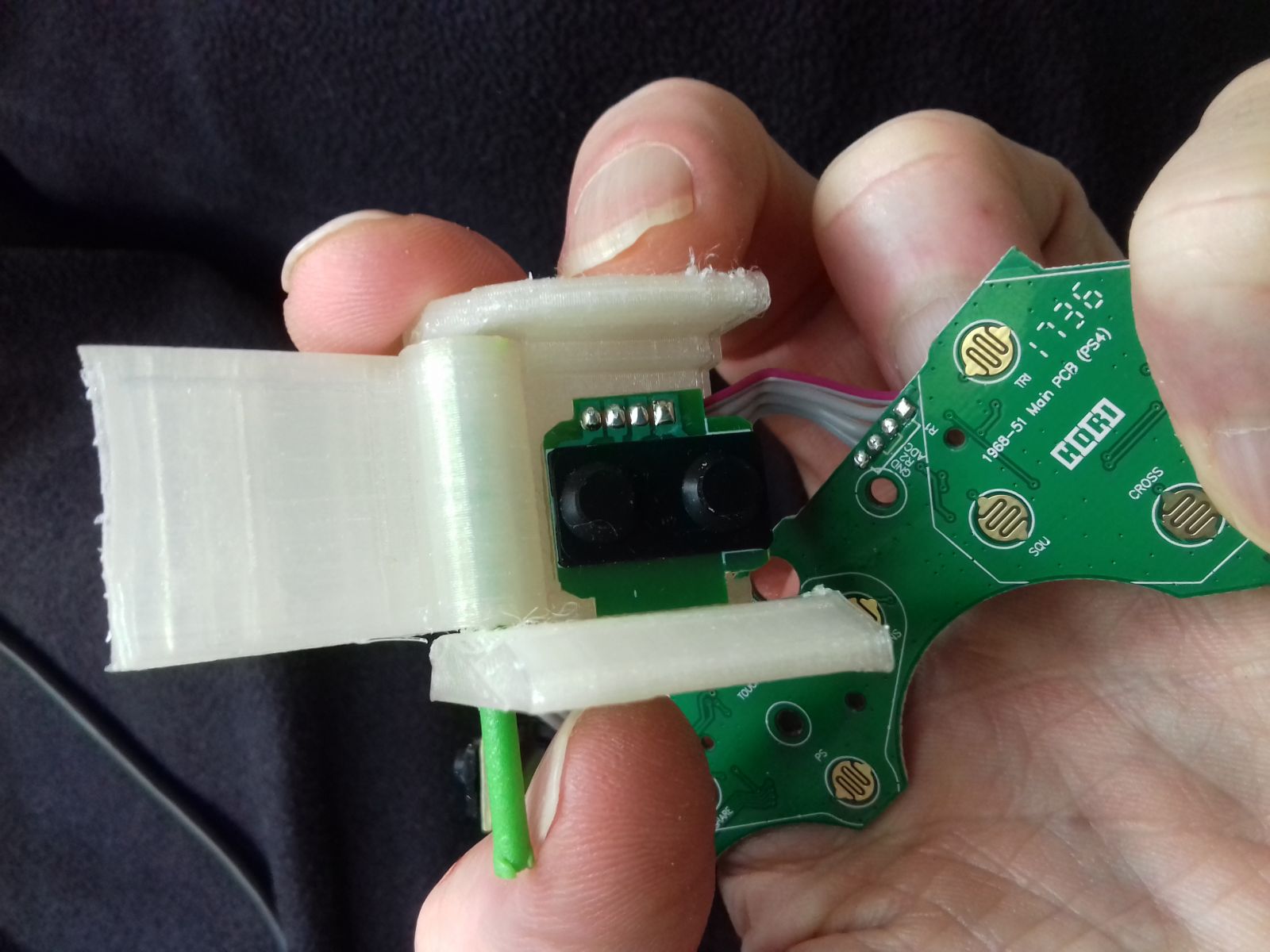

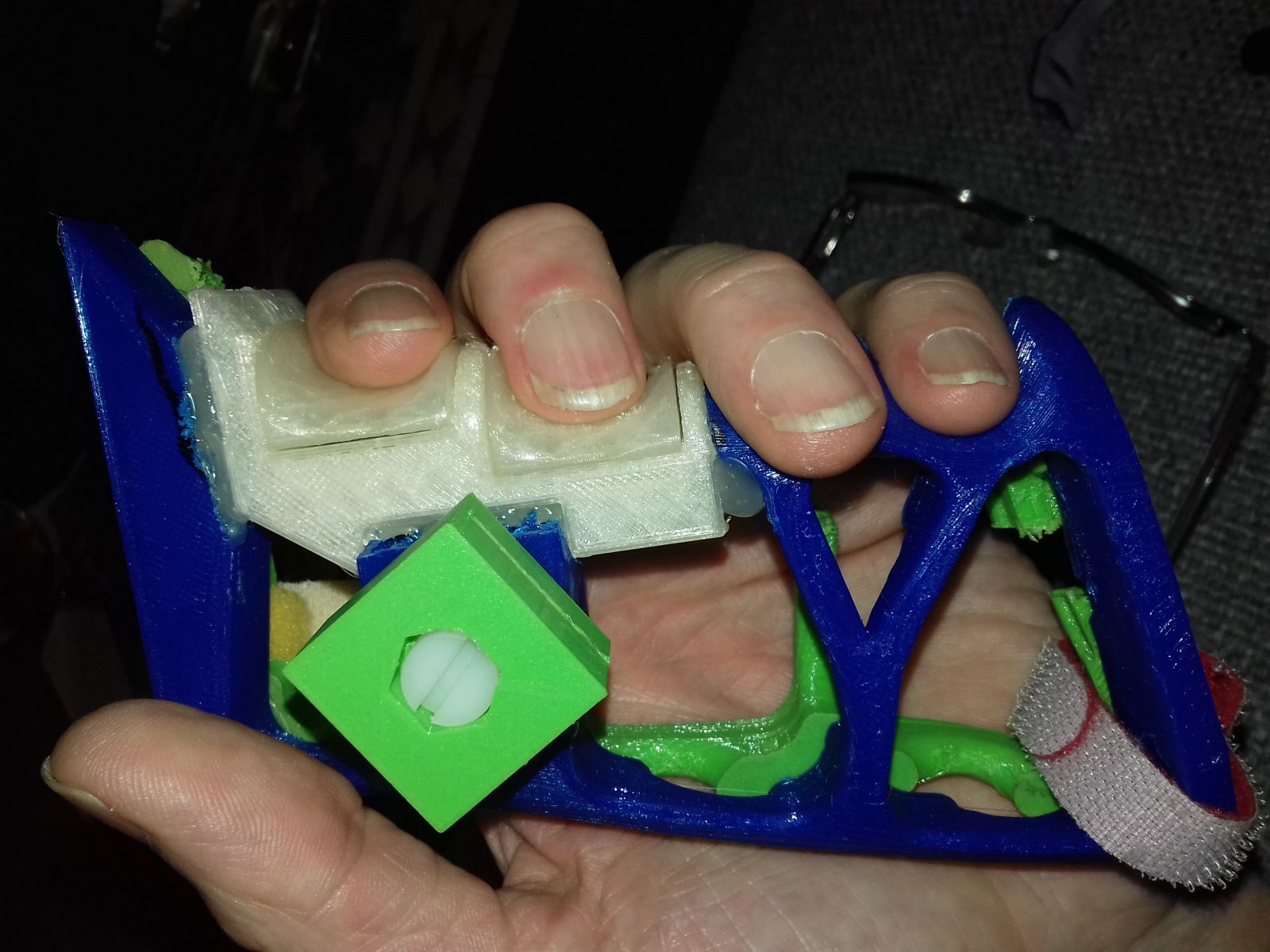

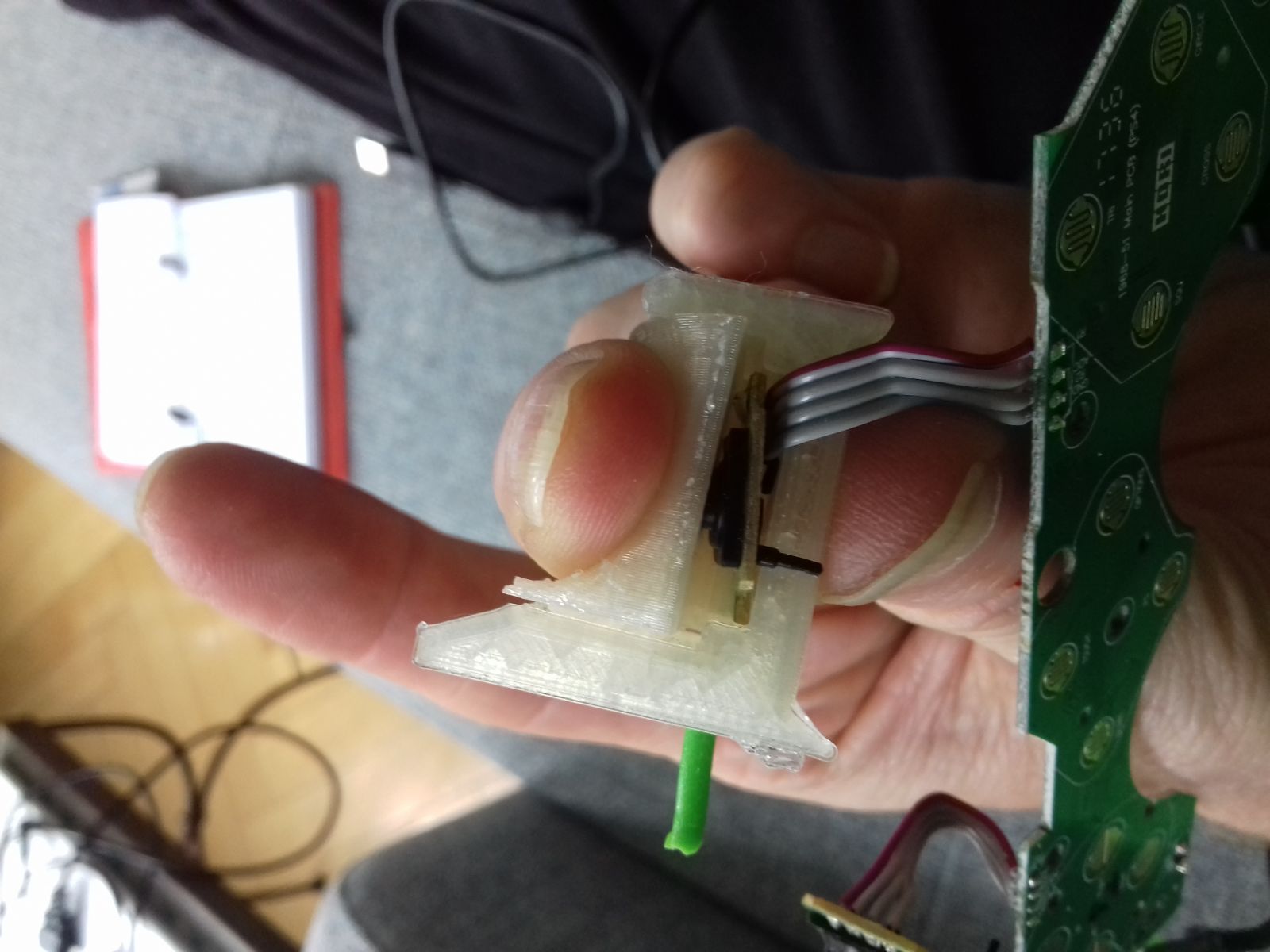

Quick mashup to test the trigger theory...
