communication between MRL-Arduino and other microcontrollers

Submitted by mecax on Sat, 04/11/2015 - 10:04

Hello, I need help, I want to perform bidirectional communication between the arduino and microchip microcontroller "PIC16f877" this has serial and I2C bus, I want to know if programming MRL is to be communicated to the microcontroller.The PIC16f877 use it to control motors but if communication could

use it to achieve more functions







‹ doubt Installing My Robot Lab onto Linux 12.04 and installing Java 7 ›
GroG's picture

Hello and Welcome back Mecax

Submitted by GroG on Sat, 04/11/2015 - 11:02.

Hello and Welcome back Mecax !

You have an interesting project !  Thanks for the post and update.

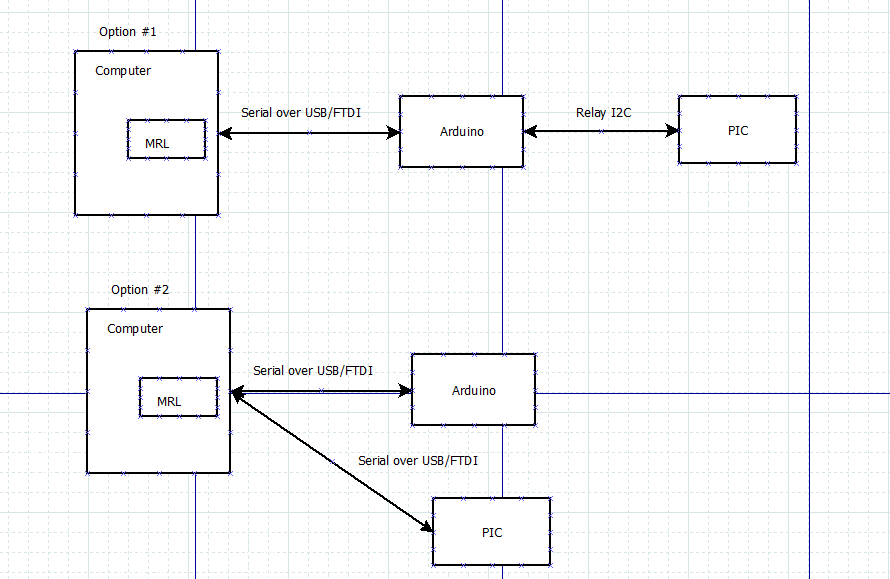

Option #1 is not available (yet)

But if you have an FTDI cable and can connect it to the PIC then you can use Option #2 - MRL becomes the "bridge" between the two, and program it in Python

»
mecax's picture

Well, thanks

Submitted by mecax on Sat, 04/11/2015 - 13:04.

Well, thanks will use option 2 and if there is any good, I'll upload

»
GroG's picture

To communicate from MRL to

Submitted by GroG on Sat, 04/11/2015 - 14:07.

To communicate from MRL to the PIC - you'll want to use MRL's Serial service

http://myrobotlab.org/service/Serial

»
