now, for the moment, worky

the following code will (re)attach servo's that appear attached but are non functional when Full configuration is choosen. Many improvements can be made, probably will be made.

to do: add arms, give consideration to configuration files.







if LeftPortIsConnected :
  leftArduino = runtime.getService("i01.left")

  if isTorsoActivated :
    i01.mouth.speak("Fixing torso servos")
    sleep(2)

    servoTopStom = Runtime.getService('i01.torso.topStom')
    servoTopStom.setPin(27)
    leftArduino.attach(servoTopStom)

    servoMidStom = Runtime.getService('i01.torso.midStom')
    servoMidStom.setPin(28)
    leftArduino.attach(servoMidStom)

    servoLowStom = Runtime.getService('i01.torso.lowStom')
    servoLowStom.setPin(29)
    leftArduino.attach(servoLowStom)
  else :
    i01.mouth.speak("torso not activated")
    sleep(2)

  if isHeadActivated :
    i01.mouth.speak("fixing head servos")
    sleep(2)

    servoNeck = Runtime.getService('i01.head.rothead')
    servoNeck.detach(leftArduino)
    servoNeck.setPin(13)
    leftArduino.attach(servoNeck)

    servoNeck = Runtime.getService('i01.head.neck')
    servoNeck.detach(leftArduino)
    servoNeck.setPin(12)
    leftArduino.attach(servoNeck)
  else :
    i01.mouth.speak("head is not activated")
    sleep(2)

  if isLeftArmActivated :
    i01.mouth.speak("fixing left arm servos")
    sleep(2)

    servoLeftBicep = Runtime.getService('i01.leftArm.bicep')
    servoLeftBicep.detach(leftArduino)
    servoLeftBicep.setPin(8)
    leftArduino.attach(servoLeftBicep)

    servoLeftrotate = Runtime.getService('i01.leftArm.rotate')
    servoLeftrotate.detach(leftArduino)
    servoLeftrotate.setPin(9)
    leftArduino.attach(servoLeftrotate)

    servoLeftshoulder = Runtime.getService('i01.leftArm.shoulder')
    servoLeftshoulder.detach(leftArduino)
    servoLeftshoulder.setPin(10)
    leftArduino.attach(servoLeftshoulder)

    servoLeftomoplate = Runtime.getService('i01.leftArm.omoplate')
    servoLeftomoplate.detach(leftArduino)
    servoLeftomoplate.setPin(11)
    leftArduino.attach(servoLeftomoplate)
  else :
    i01.mouth.speak("left arm is not activated")
    sleep(2)
else :
  i01.mouth.speak("left arduino not activated")
  sleep(2)



if RightPortIsConnected :
  rightArduino = runtime.getService("i01.right")

  if isRightArmActivated :
    i01.mouth.speak("fixing right arm servos")
    sleep(2)

    servorightBicep = Runtime.getService('i01.rightArm.bicep')
    servorightBicep.detach(rightArduino)
    servorightBicep.setPin(8)
    rightArduino.attach(servorightBicep)

    servorightrotate = Runtime.getService('i01.rightArm.rotate')
    servorightrotate.detach(rightArduino)
    servorightrotate.setPin(9)
    rightArduino.attach(servorightrotate)

    servorightshoulder = Runtime.getService('i01.rightArm.shoulder')
    servorightshoulder.detach(rightArduino)
    servorightshoulder.setPin(10)
    rightArduino.attach(servorightshoulder)

    servorightomoplate = Runtime.getService('i01.rightArm.omoplate')
    servorightomoplate.detach(rightArduino)
    servorightomoplate.setPin(11)
    rightArduino.attach(servorightomoplate)
  else :
    i01.mouth.speak("right arm is not activated")
    sleep(2)
else :
  i01.mouth.speak("right arduino not activated")
  sleep(2)


i01.mouth.speak("i am done fixing servos")
sleep(2)



[[/home/rv8flyboy/fix_servos.py]]



hairygael

3 years 5 months ago

Hello,

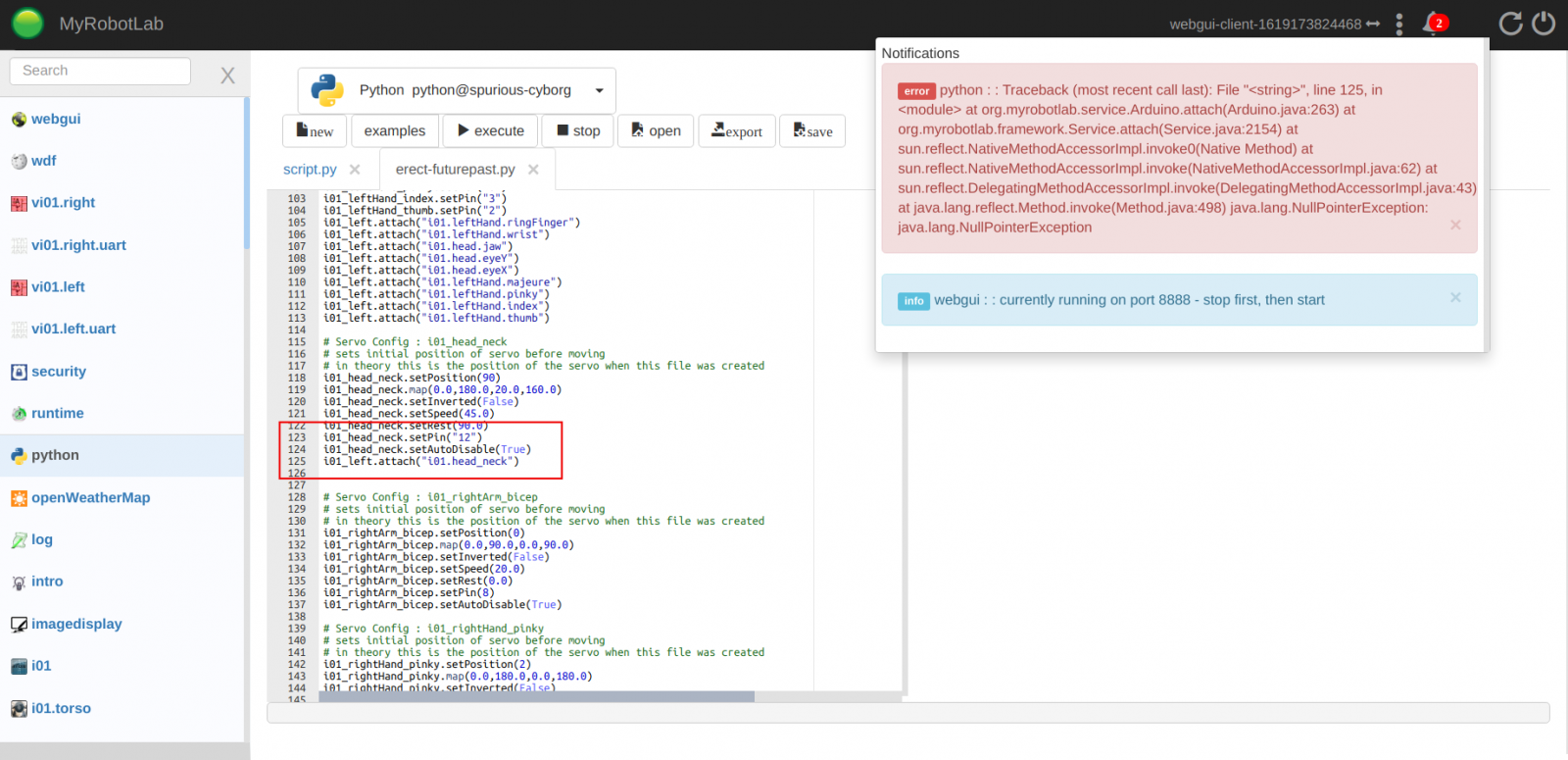

I get the same problem running InMoov(not InMoov2) in Nixie version 401. Must be a bug.
