On the way of making my inmoov totally worky on my new Mac

Update

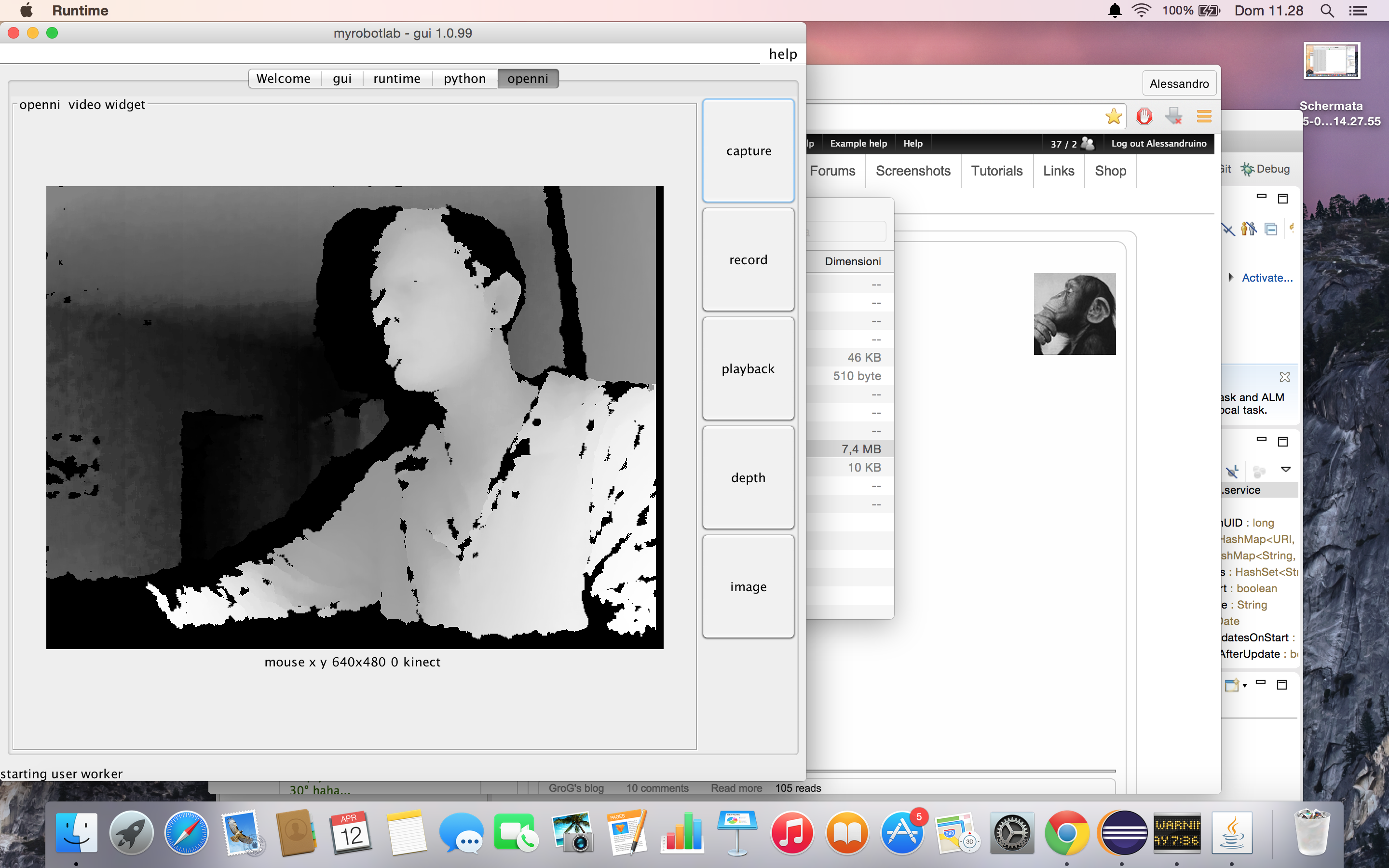

Kinect, leap motion and opencv working at the same time :)

-OpenCV

-Leap Motion

-Voice recognition

-Kinect

-DIY oculus / Arduino

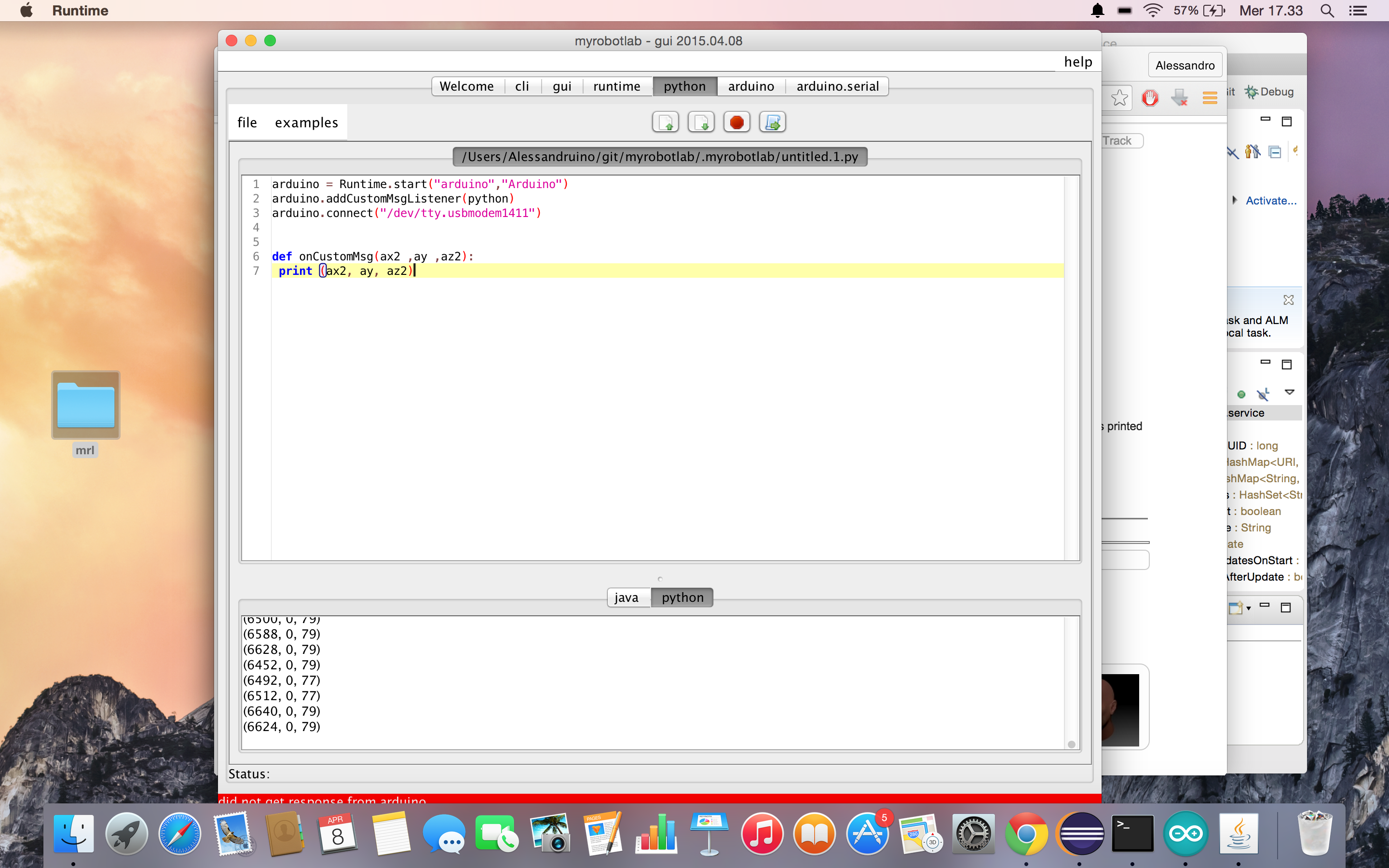

Old Mrl commino -> version 20 -> the 3 values are printed correctly

New Mrl commino -> version 21 -> only 2 values are sent correctly ( i can see a number) the ay2 value is always printed as 0



Windows 64 Eclipse - make OpenNI Worky Pre-Flight checklist

  • load mrl into eclipse
  • shift-alt-t  start typing OpenNI and open the OpenNI Service so its in text editor

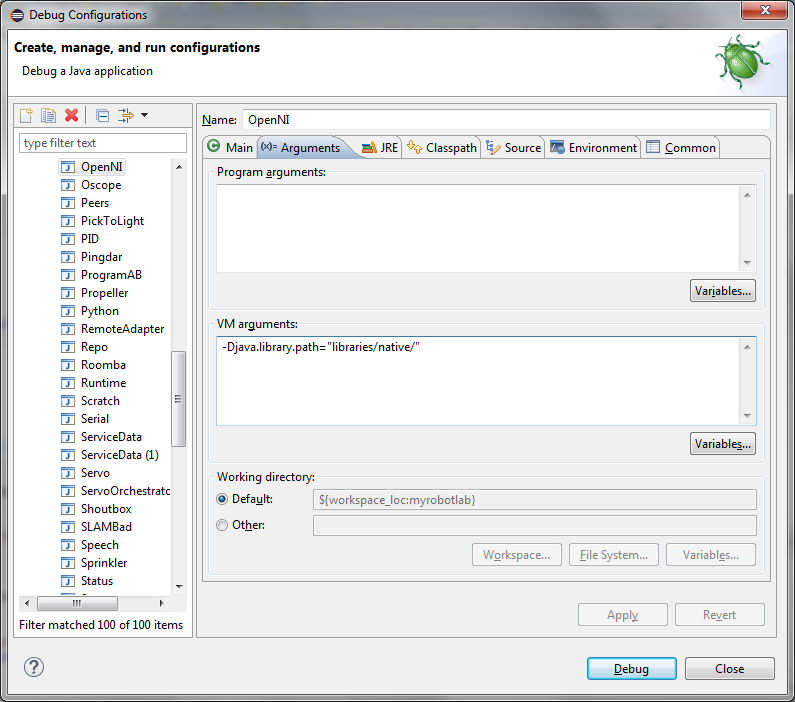

  • right click on the file somewhere -> Debug -> Debug configurations
  • click on Arguments tab
    for VM Arguments put  -Djava.library.path="libraries/native/"
  • Make sure the following libraries are in the native directory (depends on operating system)
  • I checked out myrobotlab into a folder called c:\mrl  so the root of myrobotlab is
    c:\mrl\myrobotlab
    libraries are
    c:\mrl\myrobotlab\libraries
  • My native folder is
    c:\mrl\myrobotlab\libraries\native

    The root of your application can be anywhere - but relative to the root the directory structure is very important.


  • MRL uses a "modified" SimpleOpenNI code to use OpenNI.  The guys at SimpleOpenNI made a valient attempt to get the crazy loading of OpenNI2 to work.  The part that I had to modify was removing all the Processing dependencies. Because SimpleOpenNI is not a generalized loader it was made for Processing.

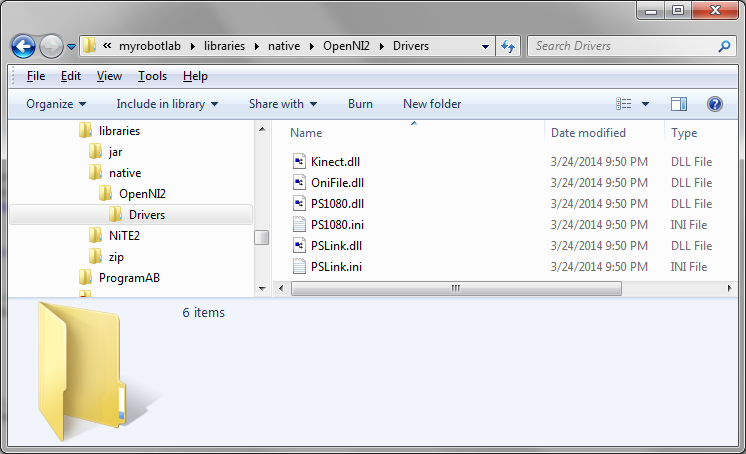

    Drivers - SimpleOpenNI2 comes with some of its own driver files. They have to be located in the following directory

    C:\mrl\myrobotlab\libraries\native\OpenNI2\Drivers

    If this is not here and the other pieces are - you wont get an error message and you wont get any video :(

    C:\mrl\myrobotlab\libraries\jar\SimpleOpenNI.jar


  •

So a quick review of all files and structure :

Jar Files
C:\mrl\myrobotlab\libraries\jar\SimpleOpenNI.jar

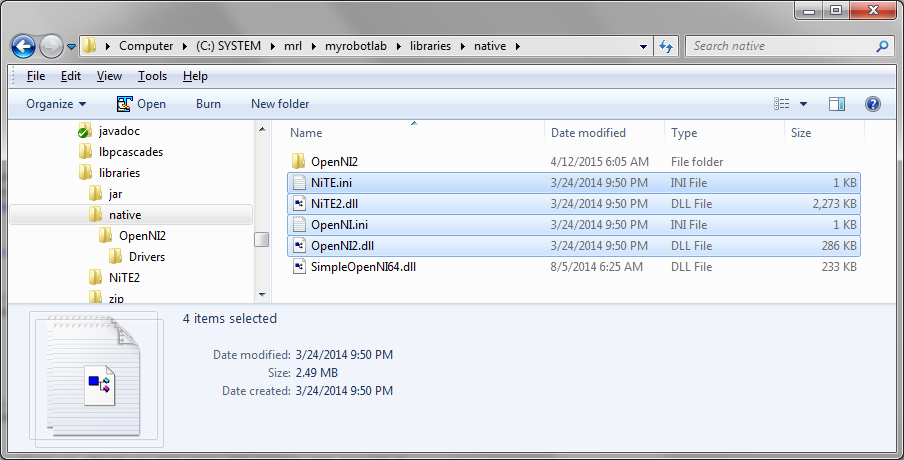

Native Files

C:\mrl\myrobotlab\libraries\native\NiTE.ini
C:\mrl\myrobotlab\libraries\native\NiTE2.dll
C:\mrl\myrobotlab\libraries\native\OpenNI.ini
C:\mrl\myrobotlab\libraries\native\OpenNI2
C:\mrl\myrobotlab\libraries\native\OpenNI2.dll
C:\mrl\myrobotlab\libraries\native\SimpleOpenNI64.dll
C:\mrl\myrobotlab\libraries\native\OpenNI2\Drivers
C:\mrl\myrobotlab\libraries\native\OpenNI2\Drivers\Kinect.dll
C:\mrl\myrobotlab\libraries\native\OpenNI2\Drivers\OniFile.dll
C:\mrl\myrobotlab\libraries\native\OpenNI2\Drivers\PS1080.dll
C:\mrl\myrobotlab\libraries\native\OpenNI2\Drivers\PS1080.ini
C:\mrl\myrobotlab\libraries\native\OpenNI2\Drivers\PSLink.dll
C:\mrl\myrobotlab\libraries\native\OpenNI2\Drivers\PSLink.ini

NiTe2 data files

C:\mrl\myrobotlab\libraries\NiTE2\Data
C:\mrl\myrobotlab\libraries\NiTE2\FeatureExtraction.ini
C:\mrl\myrobotlab\libraries\NiTE2\h.dat
C:\mrl\myrobotlab\libraries\NiTE2\HandAlgorithms.ini
C:\mrl\myrobotlab\libraries\NiTE2\s.dat
C:\mrl\myrobotlab\libraries\NiTE2\Data\lbsdata.idx
C:\mrl\myrobotlab\libraries\NiTE2\Data\lbsdata.lbd
C:\mrl\myrobotlab\libraries\NiTE2\Data\lbsparam1.lbd
C:\mrl\myrobotlab\libraries\NiTE2\Data\lbsparam2.lbd




Comment viewing options

Select your preferred way to display the comments and click "Save settings" to activate your changes.
hairygael's picture

Wooo cool, so you will have

Wooo cool, so you will have the new mac for the Makerfaire?

Alessandruino's picture

Yep.. So I can perform more

Yep.. So I can perform more tasks at the same moment :)

DancesWithRobots's picture

Kinect?

Does Apple and Microsoft play nice yet?

Something to think about--A year or two ago Apple bought out Asus' 3d sensor technology.  The Asus Xtion Live Pro is smaller and lighter than the Kinect, and is easier to interface and power.  I have no idea what Apple has done with it since, or what their plans are.  Maybe they have a future product in mind.

Alessandruino's picture

not yet... a nasty

not yet... a nasty unsatisfied link pops up when launching kinect in mrl :) btw i got it working on mac with skanect for 3d scanning



GroG's picture

WOOOHOO ! You jumped over

WOOOHOO ! You jumped over Jenga software Neo !
