This is part of my PS4 Single handed Joystick controller.

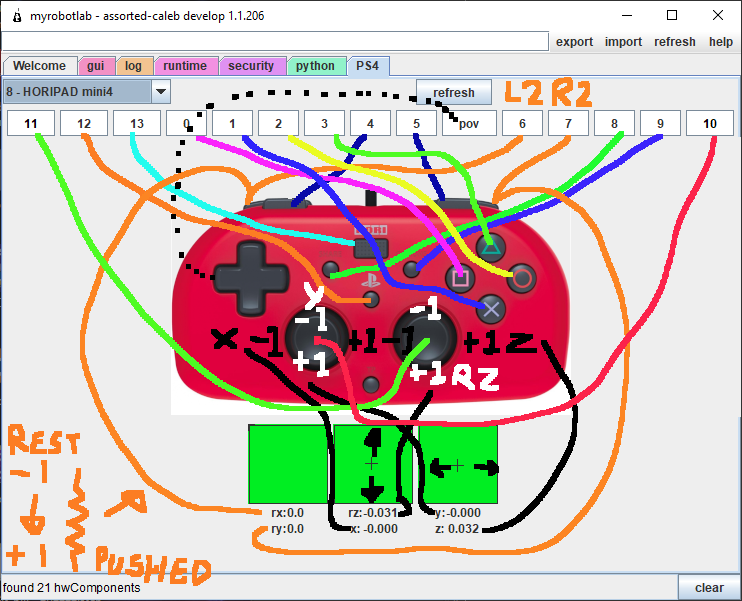

(not for confusion - the above graphic of Hori controller is not on the MRL Joystick service, its a paint mash for my reference).

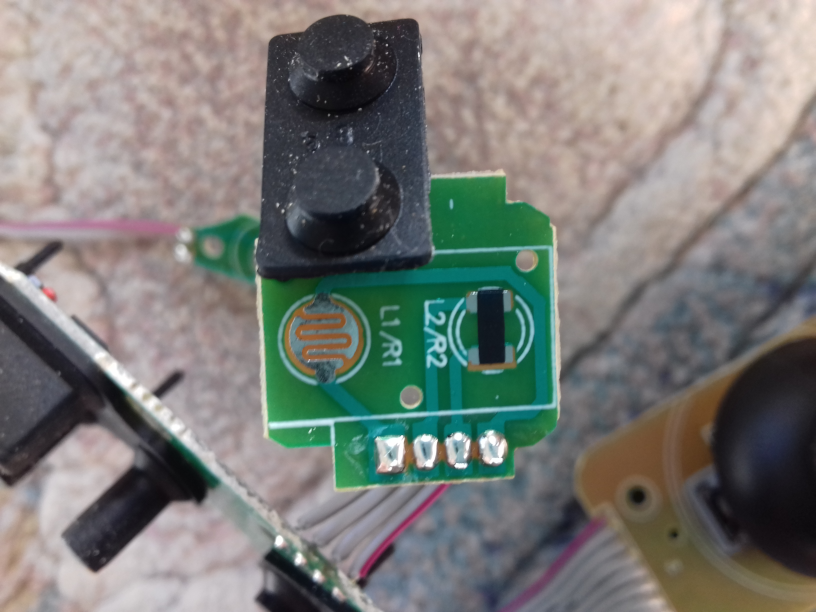

These are the mappings I have traced prior to desoldering the main board (just to keep a track of directions when shoehorned into the new system).

I have a Question :-

There are 5 buttons that do not show up on the MRL mappings.

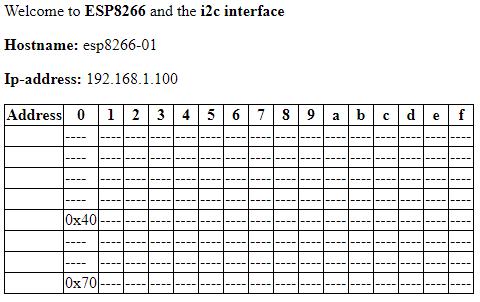

I wrote a sketch from \ resource \ Esp8266_01 at Esp8266_12. I received a response to the request http: //esp8266-01.local/ with a map of connected devices.

 I ran the script:

esp = Runtime.start ("esp", "Esp8266_01")

ada = Runtime.start ("Ada", "Adafruit16CServoDriver")

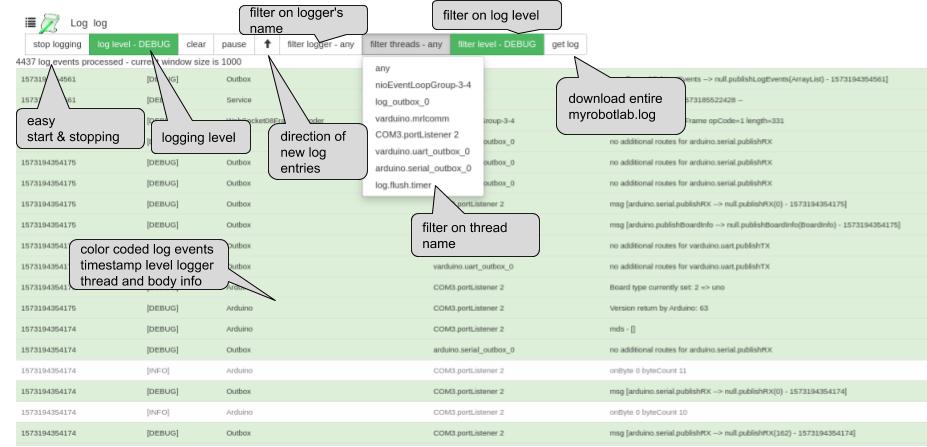

After several coding jams the Log service is starting to have sparkles.  I wanted to make it "better" than eclipse's console to quickly see status and diagnose issues.  Having a good logging system is the cornerstone of workyness :)



Hi guys. I wonder how we implement the Face Detect + Tracking in MRL through INMOOV.bat? The Tracking.py only moves the x and y eyes.

Is a 11.1V Lipo Batteryexternal power too high to power up the upper part of Inmoov? (The head and neck, 6 servos in total)

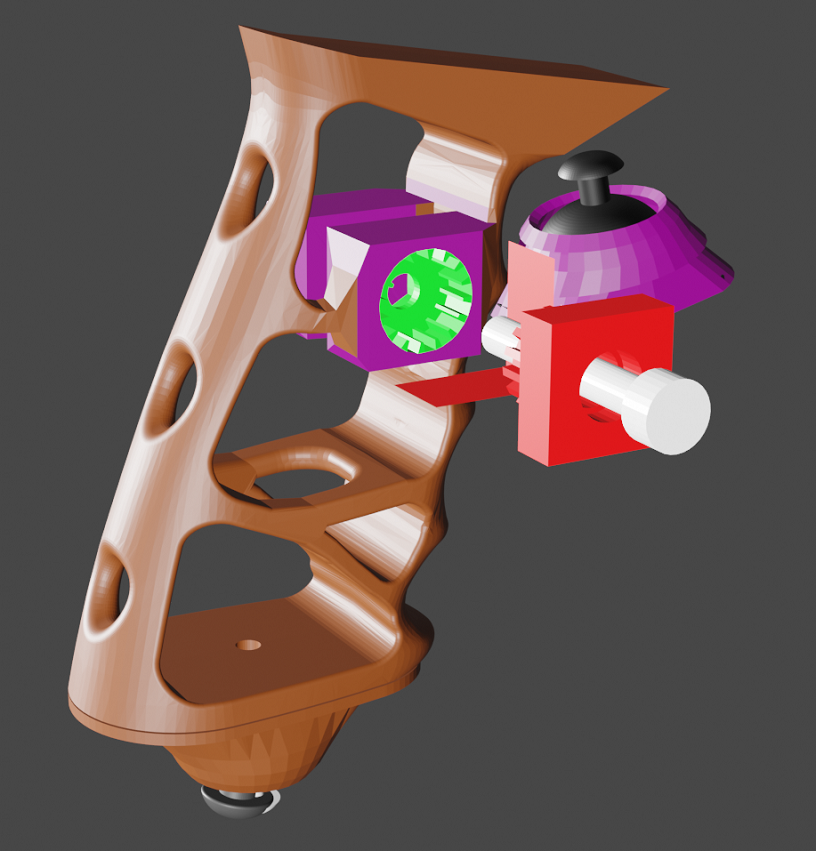

I have had a request to make a custom PS4 Left handed Joystick for a person who is recovering from a "Stroke", thought it would be interesting reference.

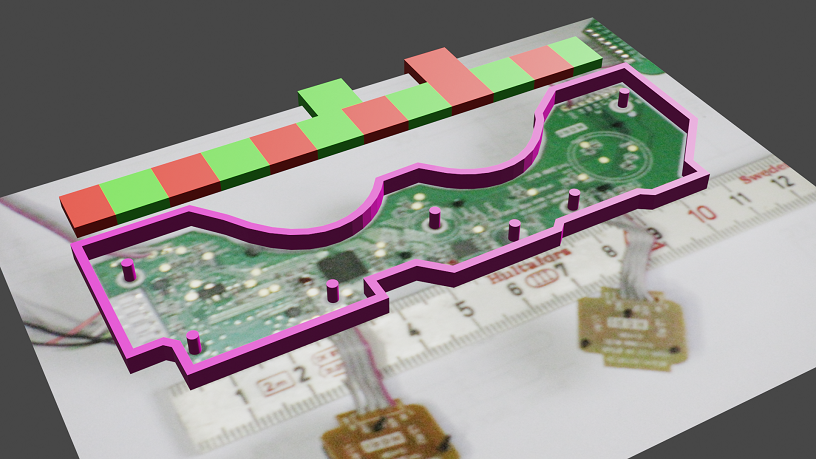

Above is just a first a first bite of the cherry, subject to many/many changes.

11:08:06.046 [main] ERROR c.m.f.Service [Service.java:2056] runtime error could not create service python Python



Anyone know how to fix this issue?
