thanks DJUltis... wish me luck.... and patience...

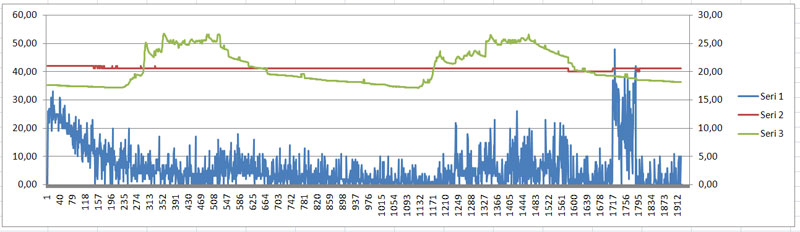

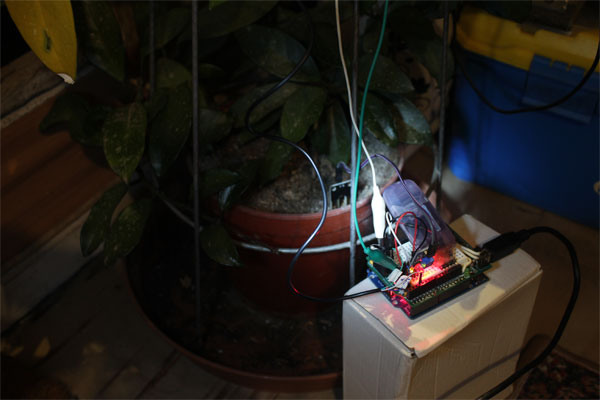

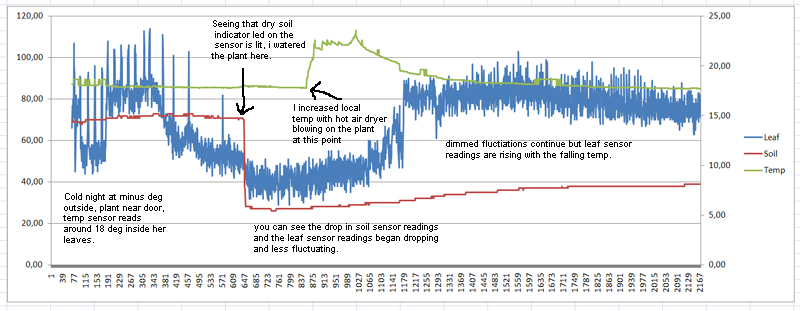

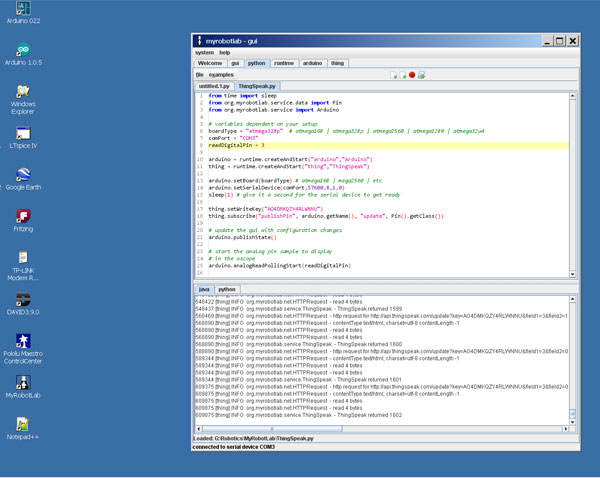

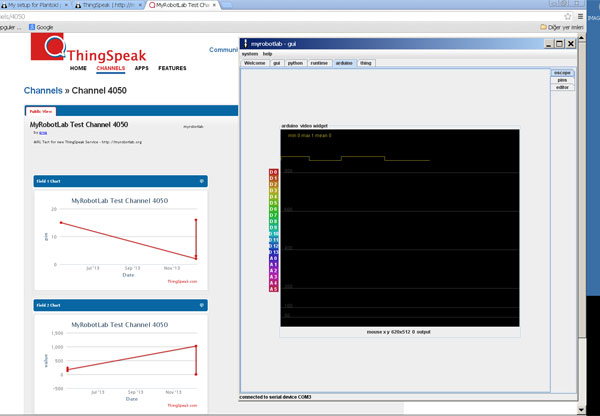

This version runs with std Arduino sketch which I wrote but will be adding MRL into the project as soon as I add the camera and wifi... Until now I havent worked on the Plantoid service and dont know how it works and what it does... May have some questions to you while adding MRL to the Plantoid...

Here is my controlling Arduino sketch for V1:

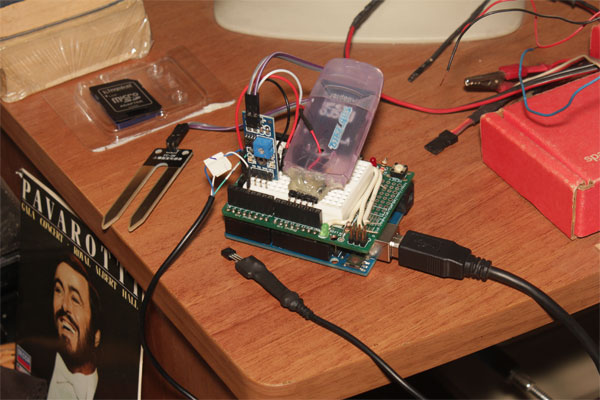

/*Read hum&temp from DHT11 for plant signalling.

 * Only 3 wires are involved:Vcc, Gnd and a single data line.

 * Read soil, cap and leaf sensors and assign to variables.

 * Control a mood led according to variables.

 * Control 4 relays to take care of the plant.

 * Dincer Hepguler 2013

 * http://borsaci06.com

*/



int r=0;             // red mood

int g=0;             //green mood

int b=255;           // blue mood



int RelayPin1 = 10;   //watering

int RelayPin2 = 11;   //humidifier

int RelayPin3 = 12;   //fan

int RelayPin4 = 13;

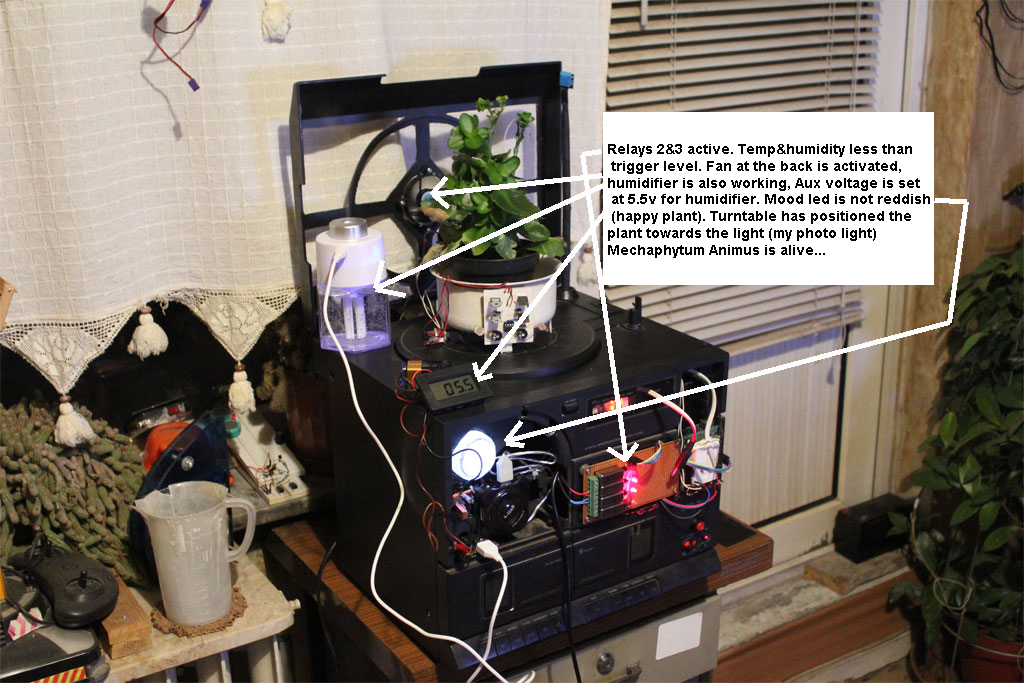

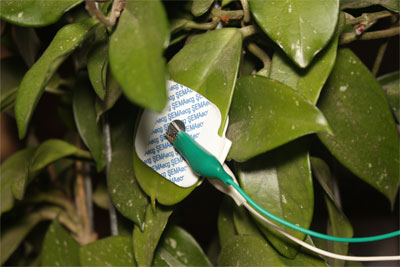

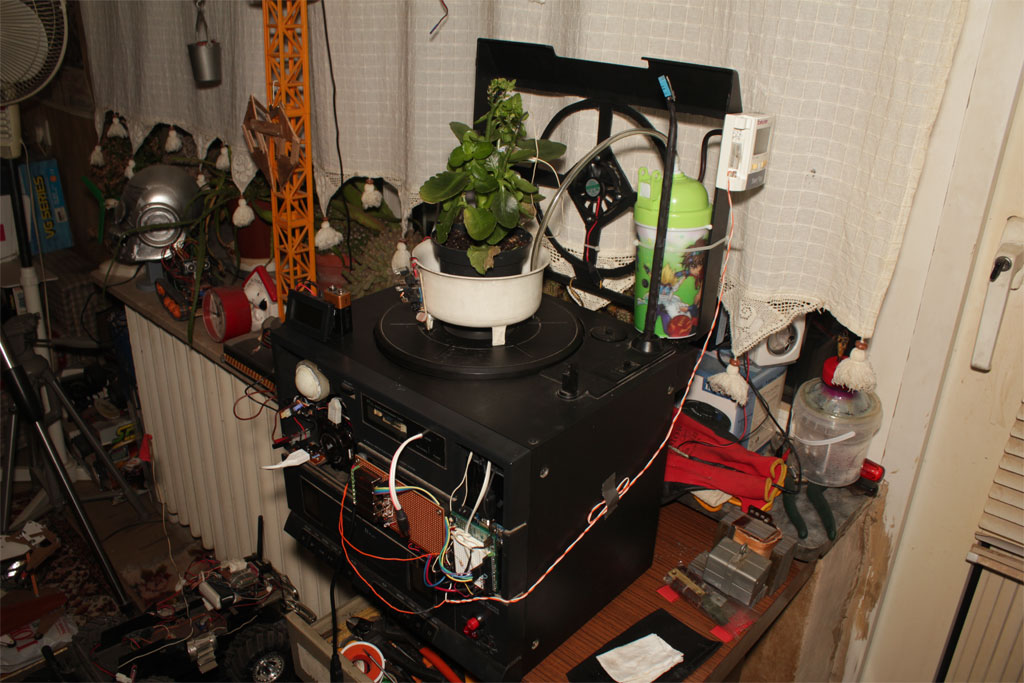

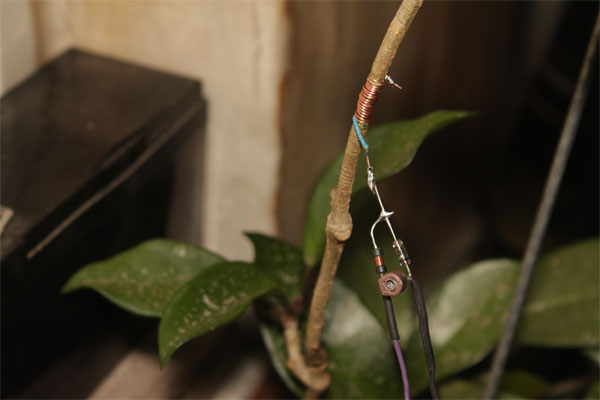

const int LeafSensor = A2; // A2 pin is used to read the value of the Leaf Sensor

int LeafState;

const int CapSensor = A1;  // A1 pin used to read capacitive sensor

int CapState;

const int SoilSensor = A0; // A0 pin used to read val of soil sensor

int SoilState;

int NumReadings = 20; //number of readings per avarage

int StresState;



#define dht_dpin 2 // Set equal to channel sensor is on,

                   //where if dht_dpin is 14, sensor is on digital line 14, aka analog 0

                   //Other digital lines can be used, e.g. D2



byte bGlobalErr;//for passing error code back from complex functions.

byte dht_dat[5];//Array to hold the bytes sent from sensor.



void setup(){

 pinMode(LeafSensor, INPUT);   //defines A2 pin as input

 pinMode(CapSensor, INPUT);    //defines A1 pin as input

 pinMode(RelayPin1, OUTPUT);   //defines relay pins as output

 pinMode(RelayPin2, OUTPUT);

 pinMode(RelayPin3, OUTPUT);

 pinMode(RelayPin4, OUTPUT);

InitDHT();                    //Does what's necessary to prepare for reading DHT

Serial.begin(9600);

delay(300);                   //Let system settle

Serial.println("Leaf:   Soil:   Cap:   Stres:   Hum%:   TempC:\n");

delay(700);                  //Wait rest of 1000ms recommended delay before reading DHT11



}



void loop(){

  // make a string for assembling the data to log:

  String dataString = "";

  LeafState = ReadLeafAvg();  // reads LeafSensor and stores to LeafState variable

  //LeafState = map(LeafState, 0,1023,0,255);

  g = map(LeafState, 0,1023,0,255);

  dataString += String(LeafState);

  dataString += "\t";

  SoilState = ReadSoilAvg();

  SoilState = map(SoilState, 0,1023,0,255);

    if (SoilState > 50)

{

  digitalWrite(RelayPin1, HIGH);   // sets the Relay1 on for watering

}

  else

{

  digitalWrite(RelayPin1, LOW);    // sets the relay off

}

  dataString += String(SoilState);

  dataString += "\t";

  CapState = analogRead(CapSensor);  // reads CapSensor and stores to CapState variable

  CapState = map(CapState, 0,1023,0,255);

  //r = min(CapState, 255);

  r =255-(CapState+SoilState);

  dataString += String(CapState);

  dataString += "\t";

  StresState = LeafState + CapState;

    if (StresState > 100)

{

  digitalWrite(RelayPin1, HIGH);   // sets the relay LEDs on

  digitalWrite(RelayPin2, HIGH);

  digitalWrite(RelayPin3, HIGH);

  digitalWrite(RelayPin4, HIGH);

  delay(1000);                     // waits for a second

  digitalWrite(RelayPin1, LOW);    // sets the LEDs off

  digitalWrite(RelayPin2, LOW);

  digitalWrite(RelayPin3, LOW);

  digitalWrite(RelayPin4, LOW);

  delay(1000);                     // waits for a second

}

  dataString += String(StresState);

  dataString += "\t";



  ReadDHT();



  switch (bGlobalErr){

    case 0:

//Serial.print("Current humidity = ");

//Serial.print(dht_dat[0], DEC);

//Serial.print(".");

//Serial.print(dht_dat[1], DEC);

//Serial.print("%  ");

//Serial.print("temperature = ");

//Serial.print(dht_dat[2], DEC);

//Serial.print(".");

//Serial.print(dht_dat[3], DEC);

//Serial.println("C  ");

        dataString += String(dht_dat[0], DEC);

        dataString += ",";

        dataString += String(dht_dat[1], DEC);

        //dataString += "% ";

          if (dht_dat[0] < 30)

{

  digitalWrite(RelayPin2, HIGH);   // sets the Relay2 on for humidifier

}

  else

{

  digitalWrite(RelayPin2, LOW);    // sets the relay off

}

        dataString += "\t";

        dataString += String(dht_dat[2], DEC);

        dataString += ",";

        dataString += String(dht_dat[3], DEC);

        //dataString += "C ";

        if (dht_dat[2] > 30)

{

  digitalWrite(RelayPin3, HIGH);   // sets the Relay3 on for fan

}

  else

{

  digitalWrite(RelayPin3, LOW);    // sets the relay off

}

        break;

     case 1:

        Serial.println("Error 1: DHT start condition 1 not met.");

        break;

     case 2:

        Serial.println("Error 2: DHT start condition 2 not met.");

        break;

     case 3:

        Serial.println("Error 3: DHT checksum error.");

        break;

     default:

        Serial.println("Error: Unrecognized code encountered.");

        break;

      }          //end "switch"

     //b = SoilState + dht_dat[0];

  Serial.println(dataString);

  delay(1000);     //Don't try to access too frequently...

  rgb(r,g,b);      // mood led status. yellowish-green=good, reddish=bad

}                  // end loop()





void InitDHT(){

        pinMode(dht_dpin,OUTPUT);

        digitalWrite(dht_dpin,HIGH);

}//end InitDHT



void ReadDHT(){

/*Uses global variables dht_dat[0-4], and bGlobalErr to pass

  "answer" back. bGlobalErr=0 if read went okay.

  Depends on global dht_dpin for where to look for sensor.*/

bGlobalErr=0;

byte dht_in;

byte i;

  // Send "start read and report" command to sensor....

  // First: pull-down I/O pin for 23000us

digitalWrite(dht_dpin,LOW);

delay(23);

/*aosong.com datasheet for DHT22 says pin should be low at least

  500us. I infer it can be low longer without any]

  penalty apart from making "read sensor" process take

  longer. */

//Next line: Brings line high again,

//   second step in giving "start read..." command

digitalWrite(dht_dpin,HIGH);

delayMicroseconds(30);//keep line high 20-40us

//Next: Change Arduino pin to an input, to

//watch for the 80us low explained a moment ago.

pinMode(dht_dpin,INPUT);

delayMicroseconds(40);



dht_in=digitalRead(dht_dpin);



if(dht_in){

   bGlobalErr=1;//dht start condition 1 not met

   return;

   }//end "if..."

delayMicroseconds(80);



dht_in=digitalRead(dht_dpin);



if(!dht_in){

   bGlobalErr=2;//dht start condition 2 not met

   return;

   }//end "if..."



/*After 80us low, the line should be taken high for 80us by the

  sensor. The low following that high is the start of the first

  bit of the forty to come. The routine "read_dht_dat()"

  expects to be called with the system already into this low.*/

delayMicroseconds(80);

//now ready for data reception... pick up the 5 bytes coming from

//   the sensor

for (i=0; i<5; i++)

   dht_dat[i] = read_dht_dat();



//Next: restore pin to output duties

pinMode(dht_dpin,OUTPUT);



//Next: Make data line high again, as output from Arduino

digitalWrite(dht_dpin,HIGH);



//Next see if data received consistent with checksum received

byte dht_check_sum =

       dht_dat[0]+dht_dat[1]+dht_dat[2]+dht_dat[3];

/*Condition in following "if" says "if fifth byte from sensor

       not the same as the sum of the first four..."*/

if(dht_dat[4]!= dht_check_sum)

   {bGlobalErr=3;}//DHT checksum error

};//end ReadDHT()



byte read_dht_dat(){

//Collect 8 bits from datastream, return them interpreted

//as a byte. I.e. if 0000.0101 is sent, return decimal 5.



  byte i = 0;

  byte result=0;

  for(i=0; i< 8; i++){

      //We enter this during the first start bit (low for 50uS) of the byte

      //Next: wait until pin goes high

      while(digitalRead(dht_dpin)==LOW);

            //signalling end of start of bit's transmission.



      //Dataline will now stay high for 27 or 70 uS, depending on

            //whether a 0 or a 1 is being sent, respectively.

      delayMicroseconds(30);//AFTER pin is high, wait further period,





      //Next: Wait while pin still high

      if (digitalRead(dht_dpin)==HIGH)

    result |=(1<<(7-i));// "add" (not just addition) the 1

                      //to the growing byte

    //Next wait until pin goes low again, which signals the START

    //of the NEXT bit's transmission.

    while (digitalRead(dht_dpin)==HIGH);

    }//end of "for.."

  return result;

}//end of "read_dht_dat()"



int ReadSoilAvg(){     //subroutine for reading soil sensor n times and avarage

  int i=0;

  int SoilState=0;

  for (i=0; i < NumReadings; i++){

    SoilState = SoilState + analogRead(SoilSensor);  //read sensor n times

  delay(1);         //delay between reads for more stability

  }

  SoilState = SoilState / NumReadings;            //avarage

  return SoilState;

}



int ReadLeafAvg(){     //subroutine for reading leaf sensor n times and avarage

  LeafState = 0;

  for (int i=0;i< NumReadings;i++) {

    LeafState = LeafState + analogRead(LeafSensor);

  delay(1);

  }

  LeafState = LeafState / NumReadings;

  return LeafState;

}



// mood led setup. shows state of the plant.

void rgb(int r, int g, int b) {

  analogWrite(9,b);

  analogWrite(5,r);

  analogWrite(6,g);

}
