NeoPixel matrix

blog Submitted by GroG on Tue, 09/14/2021 - 17:15

I think perhaps the individual pixels for the UI might be a bit too clunky ...
but its nice to know the update to MrlComm can handle 8x32 matrix.
Needs to have a scroll text function ... hmmm

Comment viewing options

Select your preferred way to display the comments and click "Save settings" to activate your changes.
Ray.Edgley's picture

Nice

Submitted by Ray.Edgley on Sat, 09/18/2021 - 22:10.

Very flashy in deed :-)



»
Gareth's picture

Effective graphics.....

Submitted by Gareth on Wed, 09/22/2021 - 10:19.

Here are a few inpulses for Matrixing....

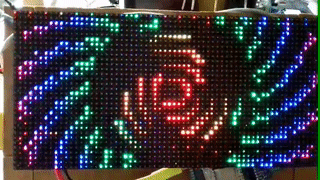

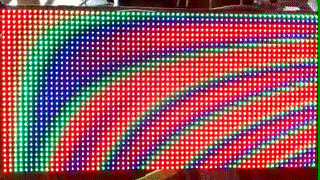

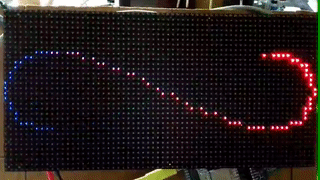

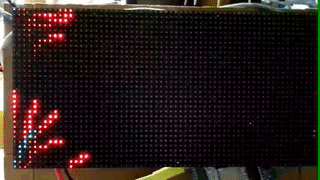

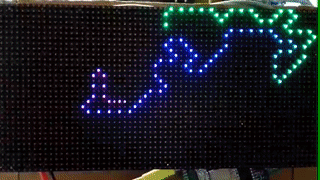

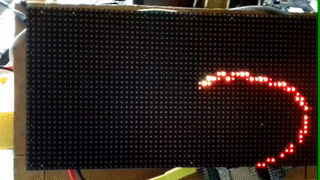

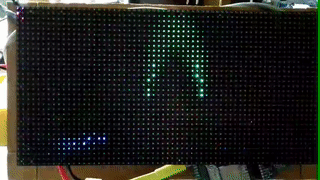

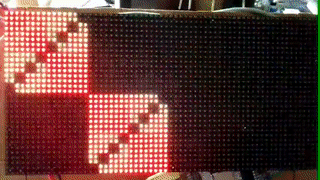

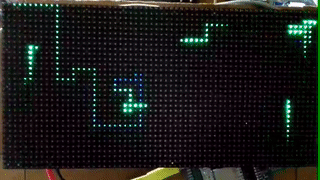

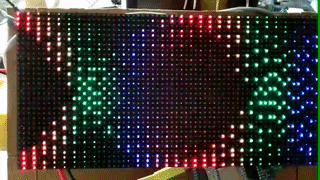

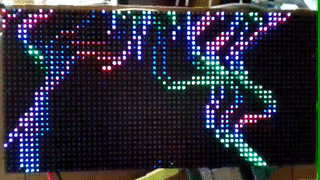

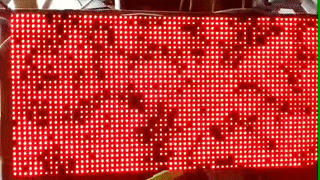

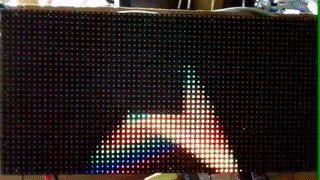

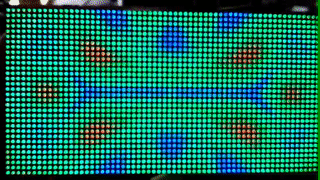

These are ported to my ESP32 64*32 Matrix screen (real time gifs below), which are quite mesmerising.



Maze



Snake



Plasma



Infinity



Flock





ElectricMandala

Munch



Swirl



Incremental Drift



Pendulum Wave



Life



Spiro



»
Gareth's picture

Forgot to add..... these are Calculated on the fly.....

Submitted by Gareth on Wed, 09/22/2021 - 10:25.

BTW:- these are calculated "On-The-Fly" so no stored animation frams required.

»
