Mechaphytum Animus Tweeting and sending data to web...

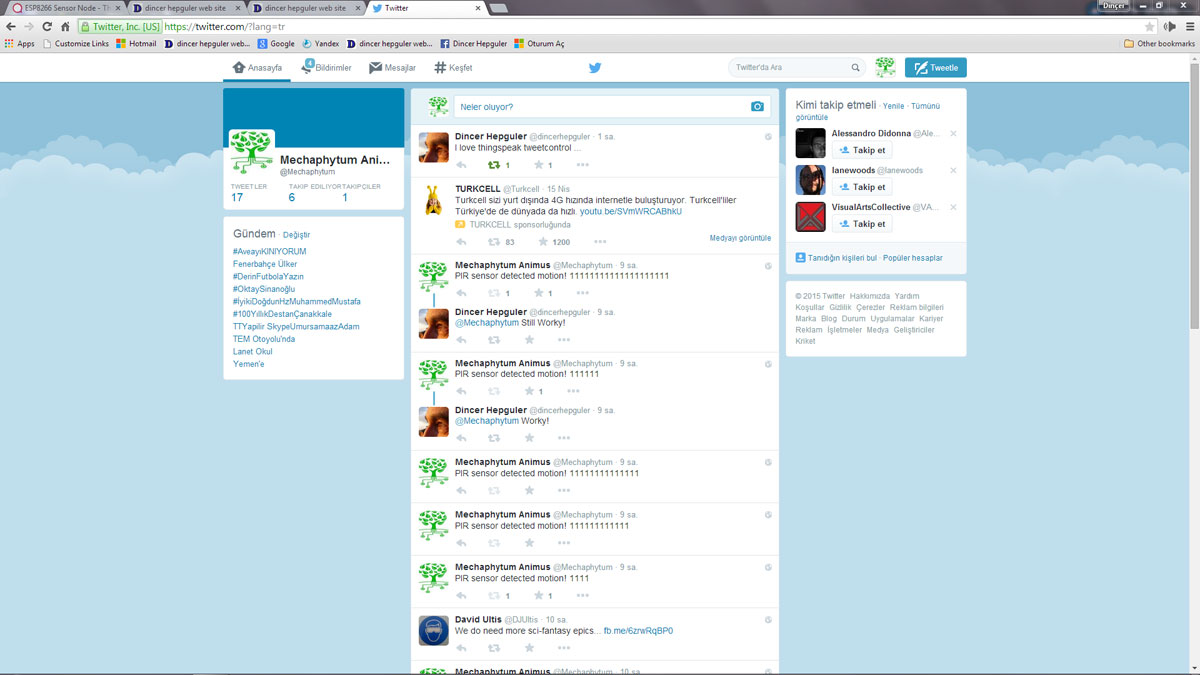

My plantoid Mechaphytum Animus is interacting with web thanks to ESP8266 webserver nodes... I played a lot with this tiny wifi modules and managed to incorporate them into my projects in many ways.... Easy to connect to a MCU, open source firmware and lots of example software on the web... I prepared many webservers with or even without a MCU and now Mechaphytum Animus can send sensor data to web, can Tweet and even send e-mails to me when an event is triggered... Below are my ESP8266 webservers...

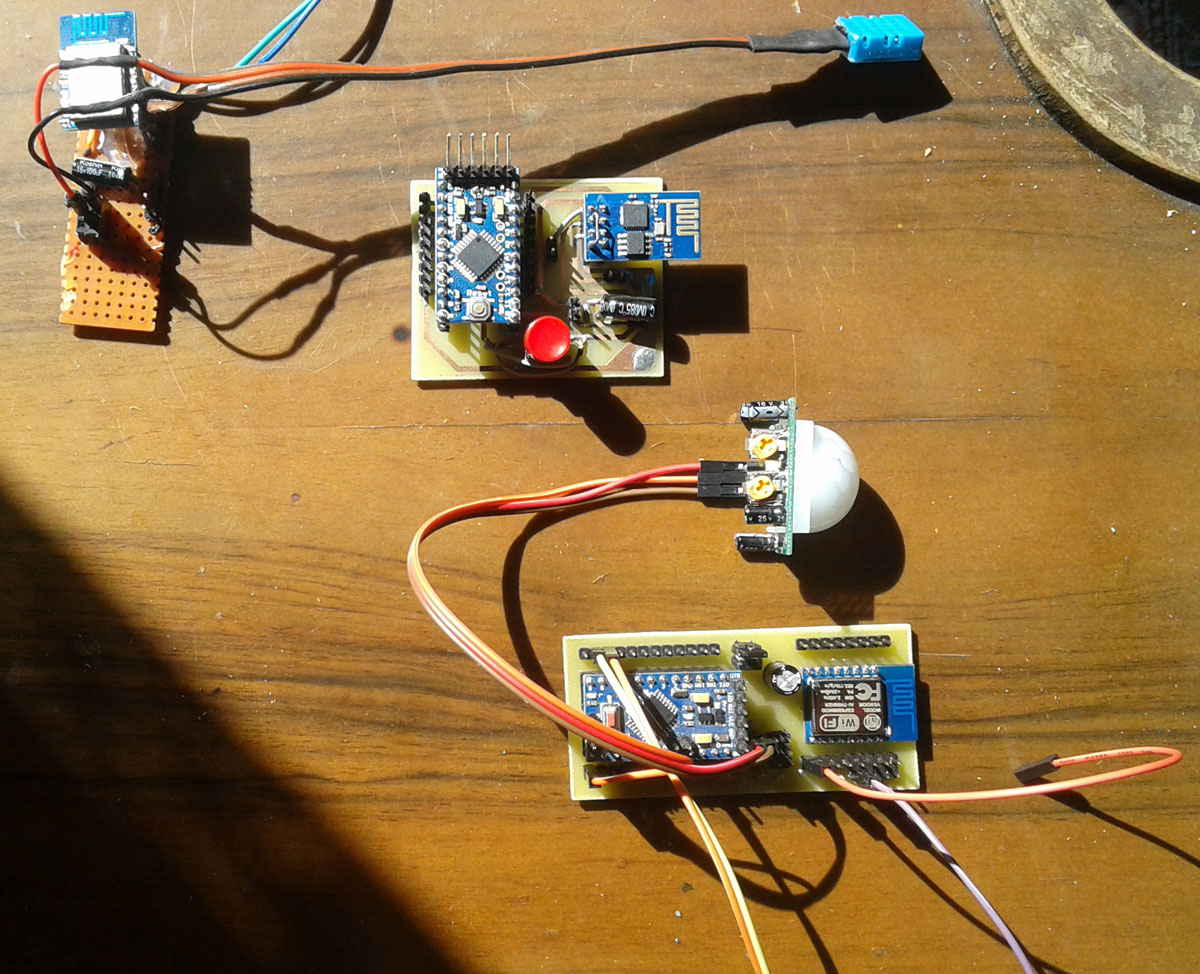

The one at the leftmost top corner can send DHT11 temp&humidity data to web all by itself without the need of a MCU... Thanks to great working firmware created by guys at NodeMCU... The one at the rightmost bottom one is working with Arduino Mini and can trigger events (for ex: with a PIR sensor) and can send Tweets... I will share code and schematics here if anyone interested....


Comment viewing options

Select your preferred way to display the comments and click "Save settings" to activate your changes.
GroG's picture

I'm Interested ! :) Great

I'm Interested ! :)

Great work borsaci06 .. My modules are still sitting on my desk ! :P

NodeMCU looks interesting

borsaci06's picture

Thx...

Thx Greg,

Yes NodeMCU firmware is great.. it can make the esp module work standalone... Indeed this tiny module is a MCU, so why try to interact with it via another MCU like Arduino?... The only thing is firmware is written in and accepting LUA scripts, and I am not familiar with LUA for the time being... Having a little hard time... :)

So I keep using Arduino to control ESP modules ...  Will post here all the software but do not know how to attach a lot of files here... :) Cheers...
