CMUcam5 Pixy - first impressions

Here is some test data that I am working on to check out the capabilities and speed of a CMUcam5 Pixy camera.

I am using two interfaces to set the system up :-

1. USB plugging into the Pixy allowing the PixyMon Gui to monitor,adjust & capture objects (by colour).

2. A connection between the Pixy<> Arduino on the 6pin ICSP port (aka SPI (Serial Peripheral Interface))

This is the Serial data that streams out , easily parsed to locate Colour (sig-signature) and X/Y coords.

Detected 19:
  block 0: sig: 1 x: 55 y: 147 width: 15 height: 16
  block 1: sig: 1 x: 177 y: 169 width: 19 height: 13
  block 2: sig: 1 x: 103 y: 173 width: 17 height: 16
  block 3: sig: 1 x: 204 y: 143 width: 18 height: 14
  block 4: sig: 1 x: 151 y: 143 width: 18 height: 15
  block 5: sig: 1 x: 178 y: 116 width: 18 height: 15
  block 6: sig: 1 x: 77 y: 124 width: 15 height: 12
  block 7: sig: 1 x: 59 y: 52 width: 13 height: 15
  block 8: sig: 1 x: 104 y: 53 width: 13 height: 9
  block 9: sig: 1 x: 146 y: 48 width: 15 height: 6
  block 10: sig: 1 x: 78 y: 80 width: 14 height: 8
  block 11: sig: 1 x: 172 y: 26 width: 13 height: 5
  block 12: sig: 1 x: 195 y: 75 width: 12 height: 6
  block 13: sig: 1 x: 83 y: 32 width: 12 height: 7
  block 14: sig: 4 x: 202 y: 116 width: 17 height: 17
  block 15: sig: 4 x: 177 y: 143 width: 18 height: 17
  block 16: sig: 4 x: 151 y: 169 width: 18 height: 16
  block 17: sig: 4 x: 203 y: 167 width: 18 height: 15
  block 18: sig: 4 x: 55 y: 76 width: 14 height: 14

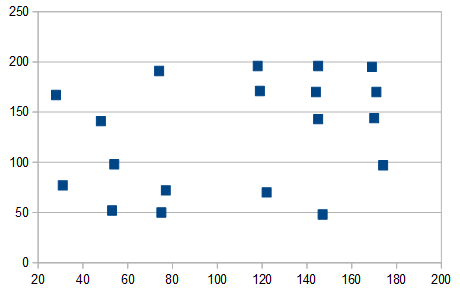

Here is the data plotted (had to check to see if it was correct, Bingo/Bongo albeit with rotation ) :-

The Pixy processes an entire 640x400 image frame every 1/50th of a second (20 milliseconds).

So far its relatively straight forward, though lighting conditions have to be pretty constant in the example shown above. (The Pixy is going to be used for a board game (computer verses human) my Son is writing software for (in Java) , as a programming exercise to help with I.T. algorithm studies at the ETH Zurich).
