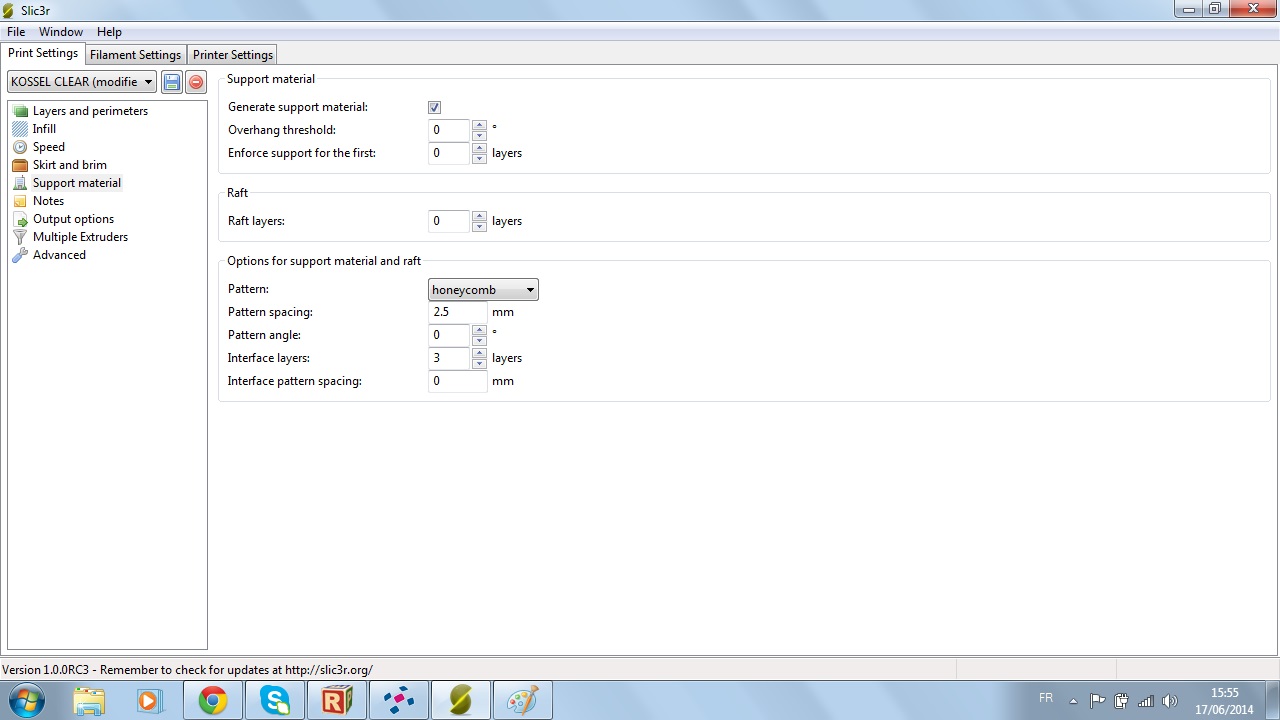

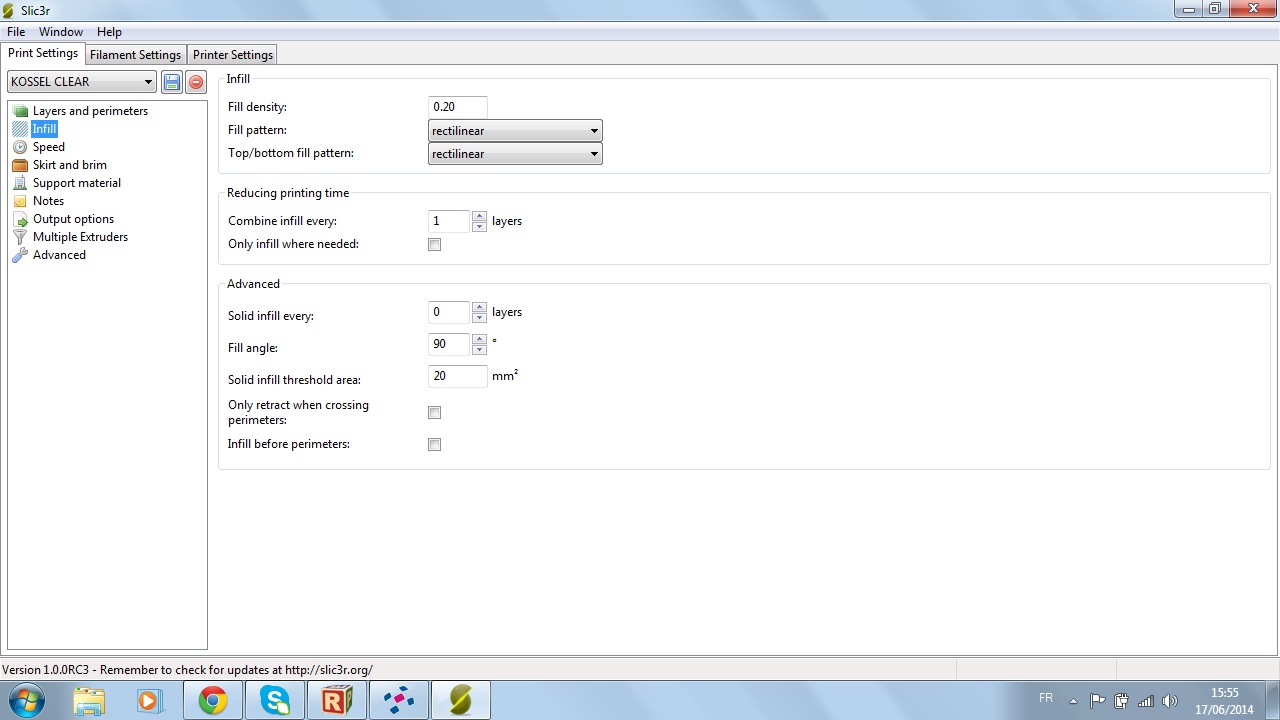

hi every body i have a problem i print worm and i can't cut how i do the same? i use repetier host please help me (No subject) (No subject) My Print Notes I keep some notes of my prints which includes the comments Slic3r puts at the top of the gcode. InMoov RotWormV5 (right bicep) Prusa Air 2 - 1.75 - InMoov Worm 30%, 1per, .3mm, 5mm brim, support Cooling Disabled (Black 1.75mm ABS from MC) Estimated Print Time: 1h:29m Actual Print Time: 2h:35m:37s Filament required: 8559.4mm (19.4cm3) ; generated by Slic3r 1.0.0RC2 on 2014-03-06 at 19:53:10 ; layer_height = 0.3 ; perimeters = 1 ; top_solid_layers = 3 ; bottom_solid_layers = 3 ; fill_density = 1 ; perimeter_speed = 30 ; infill_speed = 60 ; travel_speed = 130 ; nozzle_diameter = 0.35 ; filament_diameter = 1.70 ; extrusion_multiplier = 1 ; perimeters extrusion width = 0.35mm ; infill extrusion width = 0.37mm ; solid infill extrusion width = 0.37mm ; top infill extrusion width = 0.37mm ; support material extrusion width = 0.35mm G21 ; set units to millimeters M107 M190 S120 ; wait for bed temperature to be reached M104 S220 ; set temperature InMoov PivWormHiggsV2 (right shoulder) (mirrored) Prusa Air 2 InMoov Gears 100%, 0.3mm, 5mm brim autodetect support Cooling Disabled (natural ABS) Estimated Print Time: 43m Actual Print Time: h:m:s Filament used: 2670.9mm (17.6cm3) ; generated by Slic3r 1.0.0RC2 on 2014-02-22 at 14:02:34 ; layer_height = 0.3 ; perimeters = 1 ; top_solid_layers = 3 ; bottom_solid_layers = 3 ; fill_density = 1 ; perimeter_speed = 20 ; infill_speed = 20 ; travel_speed = 130 ; nozzle_diameter = 0.5 ; filament_diameter = 2.9 ; extrusion_multiplier = 1 ; perimeters extrusion width = 0.60mm ; infill extrusion width = 1.20mm ; solid infill extrusion width = 1.20mm ; top infill extrusion width = 0.60mm ; first layer extrusion width = 0.80mm G21 ; set units to millimeters M190 S120 ; wait for bed temperature to be reached M104 S230 ; set temperature Log in or register to post comments
My Print Notes I keep some notes of my prints which includes the comments Slic3r puts at the top of the gcode. InMoov RotWormV5 (right bicep) Prusa Air 2 - 1.75 - InMoov Worm 30%, 1per, .3mm, 5mm brim, support Cooling Disabled (Black 1.75mm ABS from MC) Estimated Print Time: 1h:29m Actual Print Time: 2h:35m:37s Filament required: 8559.4mm (19.4cm3) ; generated by Slic3r 1.0.0RC2 on 2014-03-06 at 19:53:10 ; layer_height = 0.3 ; perimeters = 1 ; top_solid_layers = 3 ; bottom_solid_layers = 3 ; fill_density = 1 ; perimeter_speed = 30 ; infill_speed = 60 ; travel_speed = 130 ; nozzle_diameter = 0.35 ; filament_diameter = 1.70 ; extrusion_multiplier = 1 ; perimeters extrusion width = 0.35mm ; infill extrusion width = 0.37mm ; solid infill extrusion width = 0.37mm ; top infill extrusion width = 0.37mm ; support material extrusion width = 0.35mm G21 ; set units to millimeters M107 M190 S120 ; wait for bed temperature to be reached M104 S220 ; set temperature InMoov PivWormHiggsV2 (right shoulder) (mirrored) Prusa Air 2 InMoov Gears 100%, 0.3mm, 5mm brim autodetect support Cooling Disabled (natural ABS) Estimated Print Time: 43m Actual Print Time: h:m:s Filament used: 2670.9mm (17.6cm3) ; generated by Slic3r 1.0.0RC2 on 2014-02-22 at 14:02:34 ; layer_height = 0.3 ; perimeters = 1 ; top_solid_layers = 3 ; bottom_solid_layers = 3 ; fill_density = 1 ; perimeter_speed = 20 ; infill_speed = 20 ; travel_speed = 130 ; nozzle_diameter = 0.5 ; filament_diameter = 2.9 ; extrusion_multiplier = 1 ; perimeters extrusion width = 0.60mm ; infill extrusion width = 1.20mm ; solid infill extrusion width = 1.20mm ; top infill extrusion width = 0.60mm ; first layer extrusion width = 0.80mm G21 ; set units to millimeters M190 S120 ; wait for bed temperature to be reached M104 S230 ; set temperature
.JPG)
(No subject)
(No subject)
My Print Notes
I keep some notes of my prints which includes the comments Slic3r puts at the top of the gcode.
